Fixed VESA Slim Wall Mount

Quick Overview

VESA 100/75 compatible wall mount with .60" [15mm] wall clearance.

Availability: In stock

Mounting onto Glass? Add one of these kits for a simpler installation!

* Required Fields

$0.00
Slim, Simple & Secure
Super slim design means there is only 0.60" between your device and your wall. Once assembled together (two pieces) and mounted to both the wall and back of a VESA compatible case or enclosure, (2) simple locking screws at the bottom keeps everything safe and secure.

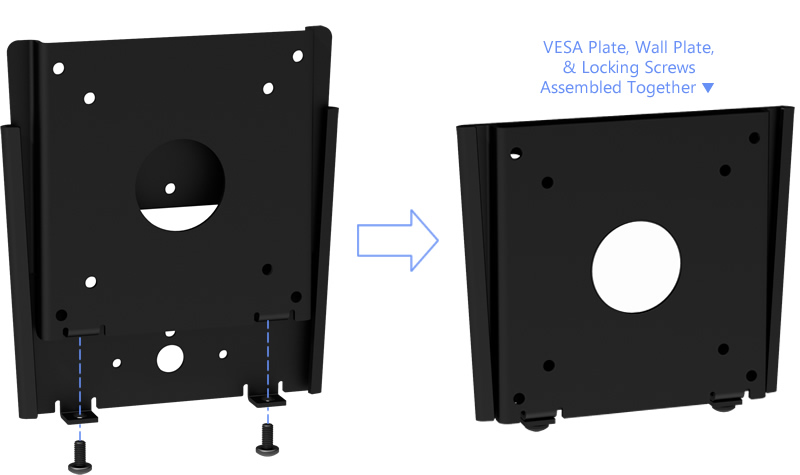

VESA Fixed Slim Wall Mount - Easy Assembly

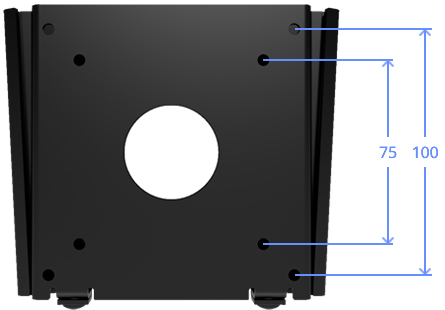

VESA Mounting Points
VESA 75 & 100 (75mm & 100mm) compatible mounting points means it can be used with a wide range of VESA ready displays - including our VidaMount VESA Tablet Enclosures.

VESA 100-75 Compatible Wall Mount

Mounts onto Any Standard Gang Box
This VESA mount can be directly attached to any standard US single gang box (3.225" x 1.880"), or
any European or international gang box (60mm inline). It's the perfect choice when used in conjunction with our
VidaPower adapters - simply run a CAT5 cable into the gang box, then place the VidaPower adapter inside. There's plenty of clearance for connecting the required USB cable - installation doesn't get any simpler!
Compatible with any US, European, or International Gang Box

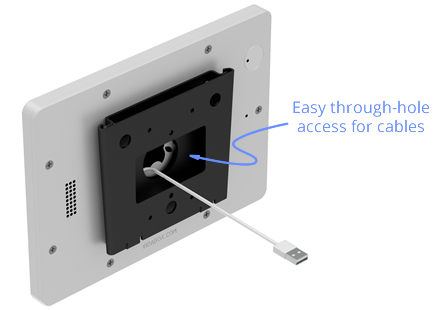

Easy Cable Management
With through holes on both wall and VESA plates in its design, we can easily pass cables from our mounted VESA ready device. No need to make additional cut outs or punch additional holes when using our VidaMount enclosures!

VESA 100-75 Compatible Wall Mount

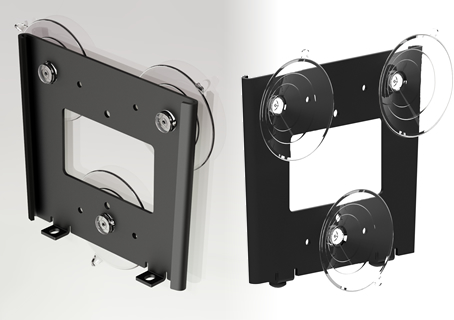

Glass Mount Ready
Easily mount your VESA ready display onto any glass surface with our suction cup kits for easy removal, or choose our permanent adhesive kits for a secure, non-removable installation!

Removable or Secure Mounting
Need to allow quick access and tablet removal one day - but need it to be fixed and secured (non-removable) the day after? Not a problem! The dual locking screws at the bottom of the mount allows flexible security that can be changed anytime!

VESA 100-75 Removable or Secure Wall Mount

Dimensions
Fixed VESA Slim Wall Mount Dimensions

What's in the box
Fixed VESA Slim Wall Mount
(4) M4 x 8mm Phillips button head mach. screw
(4) #6-32 x 1" Phillips button head mach. screw
(2) #8 x 1.75 in Phillips button head wood screw
(2) Wall anchors
(2) M3.5 x 25mm machine screws & washer set
Installation instructions [Download]

Specifications

SKU/UPC VB00000000498
UPC No
HS / Harmonized Code 830249
Net Length 5.55" [141mm]
Net Width 0.60" [15mm]
Net Height 4.80" [122mm]
Net Weight 1 lb, 0.7 oz [473g]
Package Length 5.8" [148mm]
Package Width 5.3" [135mm]
Package Height 0.8" [21mm]
Package Weight 1 lb, 1.7 oz [500g]
Other VESA 75x75 and 100x100 Compatible
Supports up to:
- 50lbs (22.6kg) when directly wall mounted
- 4 lbs (1.8 kg) when mounted onto electrical gang boxes
