Fixed, Yet Removable Glass Mount
A suction-cup based mounting design allows easy installation for temporary setups, and combined with its two part wall mount design - removal of your tablet after mounting can be done in seconds!
iPad / Android Tablet Enclosure
Our VidaMount VESA Tablet Enclosures are engineered like no other enclosure on the market today. With attention to details like a mic hole, speaker grill, interior pads for tablet protection, and a power button service knockout. Our enclosure fully wraps your iPad or Android tablet for ultimate protection and theft prevention.
Learn more...
Learn more...
Glass Mounted Tablet Kiosk
The VidaMount Removable Fixed Glass VESA Display is a sturdy, yet portable display that converts any tablet into glass-ready digital sign - making it ideal for use as a:
· Conference room or room scheduling display
· Time clock
· Human-machine interfaces
· Interactive sales tool
The combination of this fixed mounting & easy removability allows the tablet to be quickly installed in any environment where portability and on-the-fly adjustments are needed - yet stylish enough to blend into any environment!
· Conference room or room scheduling display
· Time clock
· Human-machine interfaces
· Interactive sales tool
The combination of this fixed mounting & easy removability allows the tablet to be quickly installed in any environment where portability and on-the-fly adjustments are needed - yet stylish enough to blend into any environment!
Mounts onto Any Glass Surface
The VESA mounting kit includes everything you need to directly attach it to glass surface. Simply insert the included suction cups into the wall mounting plate, clean the glass surface with the included alcohol wipes - and be finished with your installation in mere minutes! The suction cups include "EasyTabs" for fast adjustments or removable - glass setups don't get any easier!
Wire Management & Security
The USB charging cable can be passed through the enclosure's rear thru hole, which allows us to route it to a near by door jamb or other conduit - into a drop ceiling or recessed electrical box some place else - where our VidaPower adapters can provide USB power 24/7! With a little bit of planning, everything is kept nice, neat, and out of sight!
Cable Management
We thought of everything, from fitting your Lightning or USB power cables, to a perfectly sized opening for your 3.5mm headphone jack and cord (including some add-on credit card readers). Our enclosure was designed to fit your needs.
Rear Camera
Covered OR Exposed
"The choice is yours, "To cover, or not to cover?" that is the question. If you are running an application which utilizes the back / rear camera, consider selecting the Rear Camera Exposed model. This variation of our VidaMount VESA enclosure keeps the backside camera of your iPad exposed for use of your application.
Power Button Access
Our unique enclosure design provides a choice between open or limited power button access. As shipped, the enclosure covers the power button - removing the ability for a user's finger to access the tablet's power button. A tiny thru hole still provides the ability to actuate the power button using a paper clip or other tool. Alternatively - for free, unfettered power button access, the cover is removable as needed!
ADA Compliant Design
This VidaMount design meets ADA compliance:
For wall-mounting:
· Maximum protrusion from wall of 4" or less
· Height between 27" to 80" high
For free-standing, forward reaching setups:
· Unobstructed touch access between 15" to 48" high
· Obstructed (>20") touch access between 15" to 44" high
For free-standing, side reaching touchpanels:
· Unobstructed touch access between 34" to 48" high
· Obstructed (<24"/>10") touch access between 34" to 46" high
For wall-mounting:
· Maximum protrusion from wall of 4" or less
· Height between 27" to 80" high
For free-standing, forward reaching setups:
· Unobstructed touch access between 15" to 48" high
· Obstructed (>20") touch access between 15" to 44" high
For free-standing, side reaching touchpanels:
· Unobstructed touch access between 34" to 48" high
· Obstructed (<24"/>10") touch access between 34" to 46" high
Portrait or Landscape
Sometimes, certain apps such as meeting room scheduling or reservation software are locked to a landscape orientation. Maybe the time card or "check in" app we're using is designed for a portrait view. No worries! Our iPad Tablet VESA enclosures can be mounted to its VESA bracket in either a portrait or landscape orientation.
Keep the Tablet Charged!
Locate a wall outlet [1] up to 330' (100m) away. Plug in our VidaPower® PoE++ Injector [Option A] or our VidaPower® PoE++ Switch [Option B] to the outlet, and [2] connect a standard CAT/Ethernet cable to the appropriate port.
Next, run the powered PoE/CAT5/5e/6 cable to your tablet location [3] and connect it to the 48V VidaPower® DataCharger™ [International Only] or 48V VidaCharger™ Ultra [USA Only].
Finally, plug your VidaPower® High-Wattage USB-C Charging Cables to the USB-C port of the Adapter, connect your charging cable to your device [4] - and voila - we've connected wired power / data ! You're good!
Next, run the powered PoE/CAT5/5e/6 cable to your tablet location [3] and connect it to the 48V VidaPower® DataCharger™ [International Only] or 48V VidaCharger™ Ultra [USA Only].
Finally, plug your VidaPower® High-Wattage USB-C Charging Cables to the USB-C port of the Adapter, connect your charging cable to your device [4] - and voila - we've connected wired power / data ! You're good!
Optional Security Screw Kit
Our tamper-proof screw kit helps keep your tablet set up safe and secure, by changing the screws on the enclosure from Phillips to tamper-proof heads.
Customize It!
From company logos to fancy wood finishes, or glossy highlights to embossing - our durable customizations help blend any enclosure into your home or office, or enhance branding for your business. Add this affordable option to truly make these enclosures your own! Click here to learn how to customize your own unique enclosure! (Minimums apply. Ideal for projects with 100+ enclosures - Contact Us for details!)
Wide Tablet Support
We have developed VESA enclosures for many of the most popular tablet models, including:
- iPad Pro 12.9-inch (4th, 5th & 6th Gen)
- iPad Pro 12.9-inch (3rd Gen)
- iPad Pro 12.9-inch (1st & 2nd Gen)
- iPad Pro 11-inch (2nd, 3rd & 4th Gen) & Air 10.9 (4th & 5th Gen)
- iPad Pro 10.5-inch & Air 10.5 (3rd Gen)
- iPad 10.2-inch (7th, 8th & 9th Gen)
- iPad 9.7-inch (5th & 6th Gen), Air 1 & 2, Pro 9.7-inch
- iPad Mini (6th Gen)
- iPad Mini 4 & 5
- iPad Mini 1, 2 & 3
- iPad 2, 3, & 4
- Samsung Galaxy Tab S5e 10.5
- Samsung Galaxy Tab A8 10.5 (2022)
- Samsung Galaxy Tab A 10.5
- Samsung Galaxy Tab A7 10.4
- Samsung Galaxy Tab A 10.1 (2019)
- Samsung Galaxy Tab A 10.1 (2016)
- Samsung Galaxy Tab A 9.7
- Samsung Galaxy Tab A7 8.7
- Samsung Galaxy Tab A 8.0 (2019)
- Samsung Galaxy Tab A 8.0 (2017)
- Samsung Galaxy Tab A 8.0 (2015)
- Samsung Galaxy Tab A 7.0
- Samsung Galaxy Tab E 9.6
- Samsung Galaxy Tab E 8.0
- Microsoft Surface Pro 4, 5, 6, 7 & 7+
- Microsoft Surface Pro 8 & Pro X
- Microsoft Surface Pro 9
- Microsoft Surface Go & Go 2
- Microsoft Surface 3
- HP Stream 7
Don't see your tablet model? Contact us and let us know what you need.

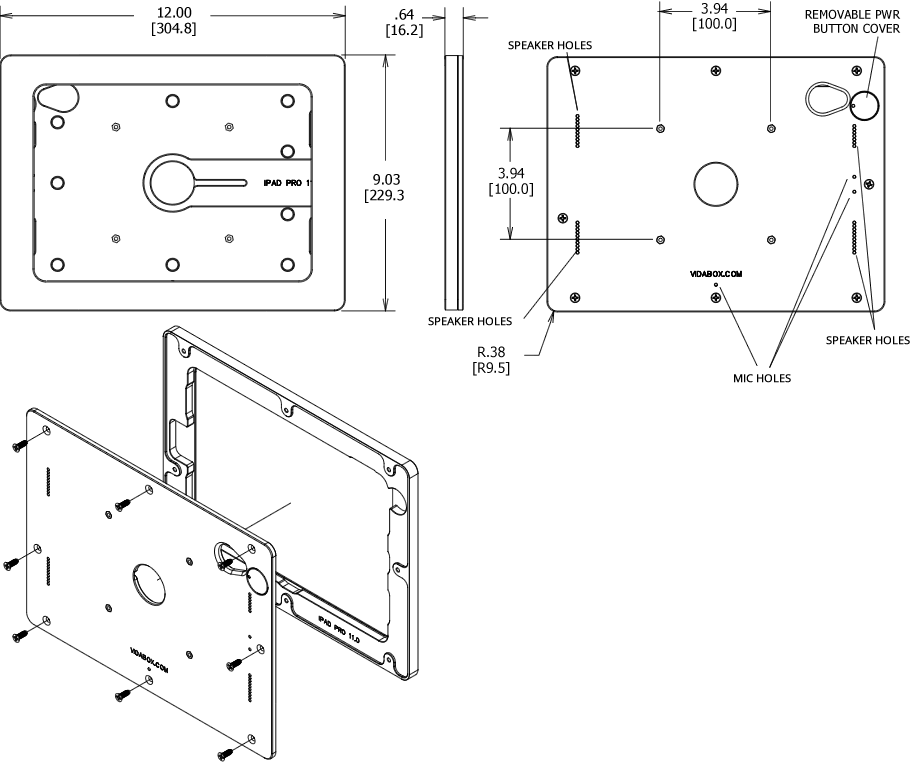

Dimensions Fixed VESA Slim Wall Mount
Dimensions Suction Cup
Dimensions Enclosure
11-inch iPad Pro
What's in the box
(4) M4 x 8mm Phillips button head mach. screw
(4) #6-32 x 1" Phillips button head mach. screw
(2) #8 x 1.75 in Phillips button head wood screw
(2) Wall anchors
(2) M3.5 x 25mm machine screws & washer set
iPad / Tablet Enclosure Installation instructions
[Download]
[Download]
Fixed VESA Slim Mount Installation instructions
[Download]
[Download]
Suction Cup Kit for Fixed VESA Slim Wall Mount Installation instructions
[Download]
[Download]
Requirements
Clean glass surface
If using 24V VidaCharger adapters: Hollow door jamb / other conduit
(For hiding USB wiring / cables)
(For hiding USB wiring / cables)
