48V VidaCharger Ultra : 802.3at CAT5/PoE to USB-C Power Adapter

Quick Overview

Convert a 48VDC powered, 802.3bt/at compliant PoE power source into a USB-C port, to plug-in & power your USB-C device. (Ethernet / Data is a separate output, and is NOT available via the USB-C connection)
  • 16 in (400mm) USB-C to USB-C 90 Degree Cable - +$16.49
  • 5 ft (1500mm) USB-C to USB-C 90 Degree Cable - +$16.49
  • 10 ft (3000mm) USB-C to USB-C 90 Degree Cable - +$21.99
$114.98
Availability: How to check stock?

More Views

Plug-N-Play Installation
Just plug in your PoE cable from our VidaPower Ultra Injector, then your USB-C cable - & that's it! No configuration required!

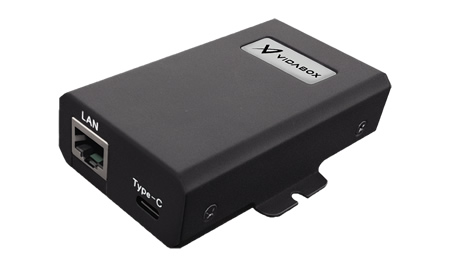

Solid, Sturdy Metal Construction
VidaCharger Ultra features a rugged metal case, making the part extremely durable, while acting as a heatsink!

Up to 50W of USB-C Power
Enjoy reliable, steady charging power for your iPad Pro, or other USB-C tablet / device!



Perfectly Pairs with

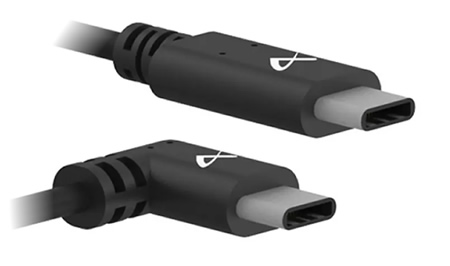

VidaPower USB-C Cables
[Optional] Ideal w. our right-angle USB-C cables for the perfect fit inside of any VidaMount on-wall or VESA tablet enclosure!

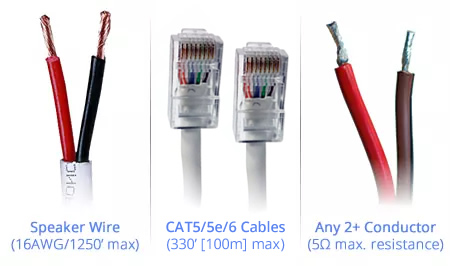

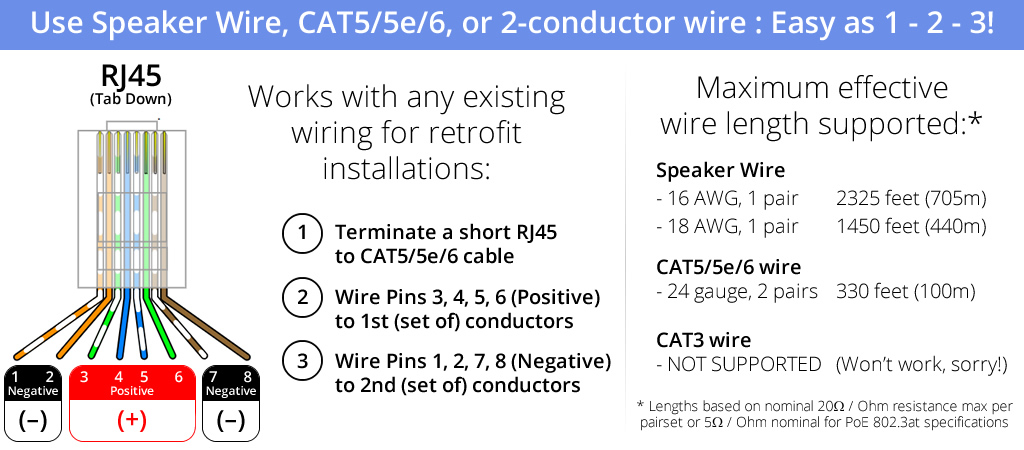

Works w. CAT5/5e/6 or
Thick Gauge Speaker Wires
Need high-power USB-C charging, but only have speaker or 2-conductor wires? It'll work if wires are <5 Ohms resistance!

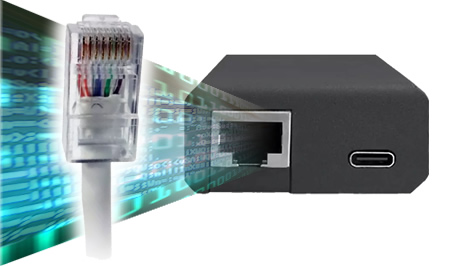

Data-Pass Through via RJ45
VidaCharger Ultra provides Ethernet data through the separate RJ45 port. The USB-C connection is for power only, and DOES NOT provide data.

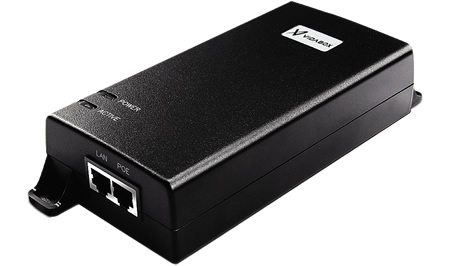

Option 1: 48V VidaPower Ultra Injector
Be sure to kit this item with the 48V VidaPower Ultra Injector, designed for 24/7/365 usage w. high power output!

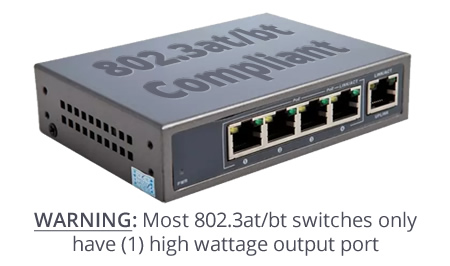

Option 2: 802.3at/bt PoE Injector/Switch
Alternatively, our VidaCharger can work with any 802.3at/bt PoE switch that supports more than 50W output. Warning: Most PoE switches only have (1) 802.3at/bt port - be sure to check your PoE switch's specifications!

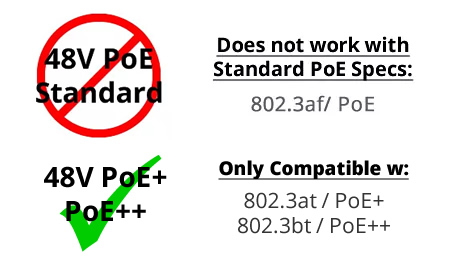

Not Compatible w. Standard PoE
Warning: Never use this device with a regular / standard PoE switch (limited to 15W).
(Your power source will overload!)


Locate the nearest wall outlet (120-240V A/C) to your tablet mounting location. Plug in our VidaPower Ultra Injector to the outlet, and connect a standard CAT/Ethernet cable to the appropriate port. Next, run the powered cable to your tablet location (Supports up to 375' [115m] w. CAT5/5e/6) and connect it to the VidaCharger Ultra.

Finally, connect the USB-C cable into the VidaCharger Ultra Adapter, then run your charging cable to your device and voila - we've connected your device to an A/C outlet up to 330' away! You're good!
VidaCharger 48V CAT5 to USB-C Power Adapter Ultra Connection Example/Schematic

Designed in the USA
We design and engineer these pieces right here in Long Island, New York. We know your tablet setup / project incorporates hundreds or even thousands of dollars in time, software and hardware - so we thought it would be best to design and engineer the best protection for your display...right here in the USA!

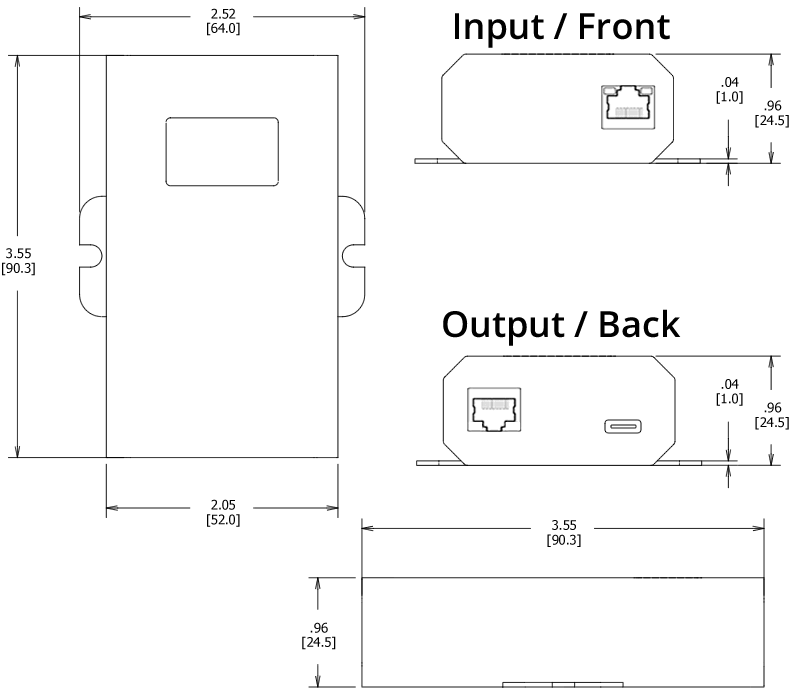

Dimensions
VidaCharger Ultra 48V to USB-C Power Adapter Dimensions
* Device accepts 48V PoE Ultra / 802.3bt CAT5/PoE power only, and outputs USB-C power ONLY. Does NOT provide Ethernet via the USB-C connection

What's in the box
VidaCharger 48V USB-C Power Adapter
Installation Instructions
[Download]

Wiring Requirements
CAT5/5e/6 Ethernet Cable, or
Speaker Wire, or
Any 2-conductor Wire


Additional Information

SKU/UPC VB00000002576
UPC No
HS / Harmonized Code 8504.40.7001
Net Length 3.60" [92mm]
Net Width 1.98" [50mm]
Net Height 0.95" [24mm]
Net Weight 5.4 oz [154g]
Package Length 3.50" [89mm]
Package Width 3.00" [77mm]
Package Height 2.15" [55mm]
Package Weight 7.0 oz [200g]
Other Supports 48V 802.3bt Power-over-Ethernet / Power Sources
(Charging Power Only, No Ethernet)

Up to 375' [115m] CAT5 cable length
