48V VidaPower Ultra : 802.3at CAT5/PoE Power Injector [Compatible w. 48V VidaCharger Ultra]

Quick Overview

Injects 48VDC power into a CAT5/5e/6 wire, and combines it with data with a RJ45 output. Supports up to 50W maximum power. Output is 802.3at PoE standard compliant. Ideal for use with our matching 48V VidaPower Injector.

48V VidaCharger Ultra : 802.3at CAT5/PoE to USB-C Power Adapter [Requires 48V VidaPower Injector]

Note: Product is in Beta. Call to discuss your application before ordering!
  • US
  • UK - +$2.69
  • EU - +$2.69
  • AUS / NZ - +$2.69

* Required Fields

$99.99

Availability: In stock

Up to 60W of PoE Power
Enjoy reliable, steady charging power for a connected VidaCharger Ultra - perfect for your iPad Pro/ USB-C device!



Heavy Duty Design for Longevity
Bigger and bulkier than typical chargers, our VidaPower Ultra injector was designed for 24/7/365, dependable performance.

Need to power your 48V VidaCharger Ultra CAT5/PoE-USB Power Adapter?

Don't have a 48V POE+/PoE++ switch to provide power to your VidaCharger Ultra? No Worries! Our VidaPower Ultra Injector is the perfect solution! Use this to inject 48V into a standard CAT5 cable (we sell them too) to keep your VidaCharger Ultra Adapter charging your USB-C device.

Designed in the USA
We design and engineer these pieces right here in Long Island, New York. We know your tablet setup / project incorporates hundreds or even thousands of dollars in time, software and hardware - so we thought it would be best to design and engineer the best protection for your display...right here in the USA!

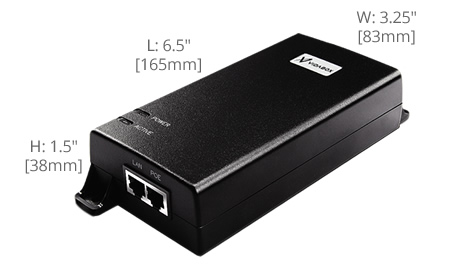

Dimensions

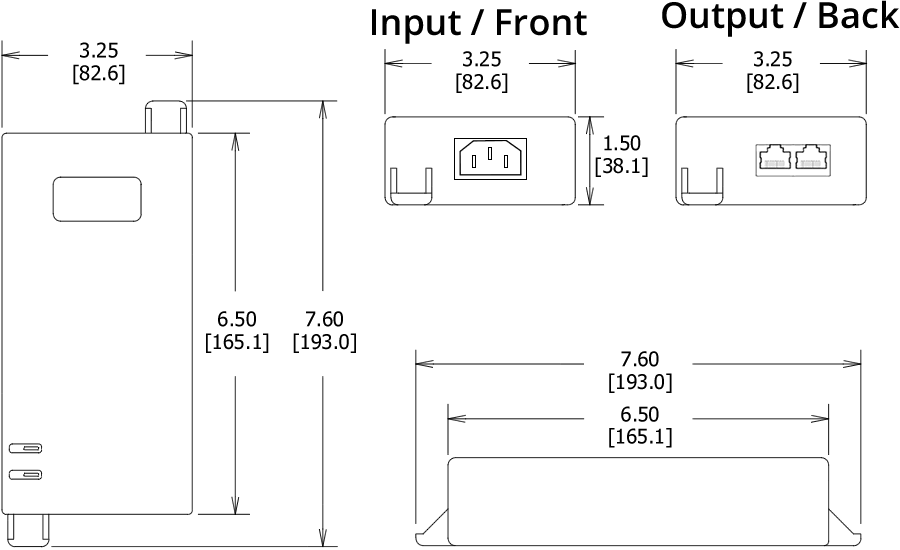

VidaPower Ultra 48V Power Injector Dimensions
* Device accepts 48V PoE Ultra / 802.3bt CAT5/PoE power only, and outputs USB-C power ONLY. Does NOT provide Ethernet via the USB-C connection

What's in the box
VidaPower Ultra 48V / 802.3at CAT5/PoE Power Injector
Installation Instructions
[Download]

Wiring Requirements
CAT5/5e/6 Ethernet Cable


Specifications

SKU/UPC VB000000002574
UPC No
HS / Harmonized Code 8504.40.8500
Net Length 5.4" [137mm]
Net Width 2.5" [63mm]
Net Height 1.3" [33mm]
Net Weight 12 oz [340g]
Package Length 6.3" [160mm]
Package Width 3.9" [99mm]
Package Height 3.5" [89mm]
Package Weight 14 oz [397g]
Other Supports 48V 802.3at Power-over-Ethernet output
