48V VidaCharger Ultra 2 : 802.3at CAT5/PoE to USB-C Power Adapter

Quick Overview

Convert a 48VDC powered, 802.3bt/at compliant PoE power source into a USB-C port, to plug-in & power your USB-C device. (No Ethernet / Data NOT available via the USB-C connection)
  • 16 in (400mm) USB-C to USB-C 90 Degree Cable - +$16.49
  • 5 ft (1500mm) USB-C to USB-C 90 Degree Cable - +$16.49
  • 10 ft (3000mm) USB-C to USB-C 90 Degree Cable - +$21.99
$88.99
Availability: In stock

More Views

Plug and Play

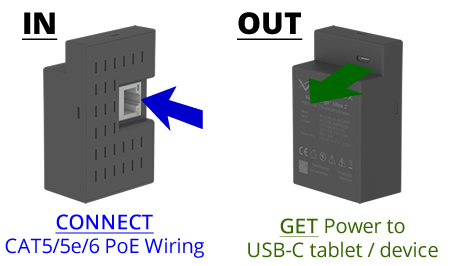

Plug-N-Play Installation
Just plug in your PoE cable from a VidaPower® Ultra Injector / Switch, then your USB-C cable into the device... and that's it! No configuration required!

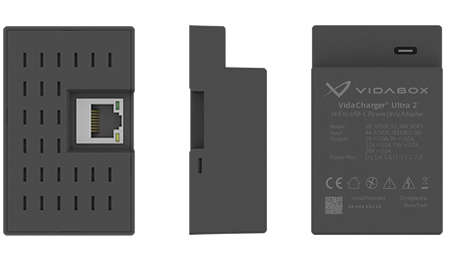

Sturdy, Solid Resin Construction
VidaCharger Ultra 2 features a completely covered resin case, making the part extremely durable, while acting as a heatsink!


Plug and Play

High Reliability:
Especially after Power Outages!
Ever lose power on an existing adapter at odd times? Reason: Most PoE-USBC adapters don't reinitialize the "handshake" required for power when PoE power is lost - forcing you to manually disconnect the tablet's cable as the only 'fix'! Avoid service headaches with the VidaCharger Ultra 2's patent pending power monitoring design!

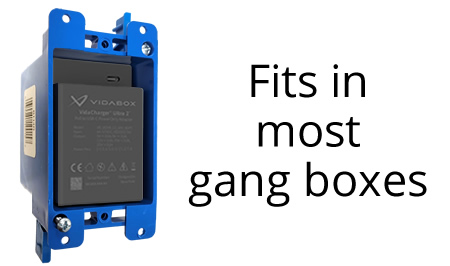

Compact : Fits into a 1-Gang US Box!
VidaCharger Ultra 2 fits perfectly into most common, US single-gang boxes, making it ideal for retrofit applications!



Up to 50W of USB-C Power
Enjoy reliable, steady charging power for everything - iPads, Galaxy Tabs, Surface Go/Pro tablets, or other USB-C devices!

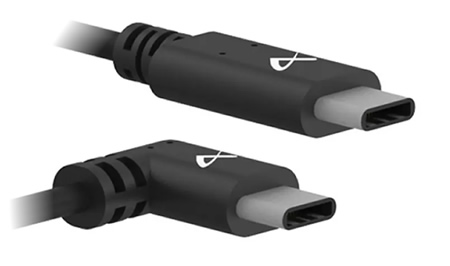

Perfectly Pairs with
VidaPower® USB-C Cables
[Optional] Ideal w. our right-angle USB-C cables for the perfect fit inside of any VidaMount on-wall or VESA tablet enclosure!



Works only with CAT5/5e/6 cabling
For retrofit setups, CAT5/5e/6 wiring is required for the VidaCharger Ultra 2. Not compatible with CAT3 / 2-conductor / speaker wire cabling, sorry!

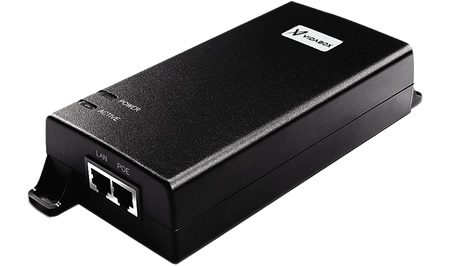

Option 1: 48V VidaPower® Ultra Injector
Be sure to kit this item with the 48V VidaPower® Ultra Injector, designed for 24/7/365 usage w. high power output!

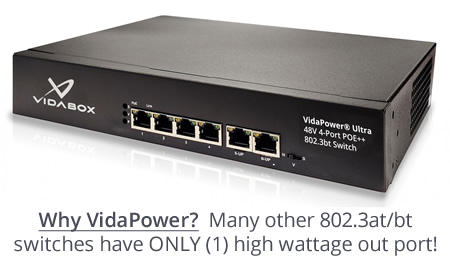

Option 2: 48V VidaPower®
Ultra 4-Port Switch
Alternatively, our VidaCharger can work with any 802.3at/bt PoE switch that supports more than 50W output. Warning: Most PoE switches only have (1) 802.3at/bt port - be sure to check your PoE switch's specifications!

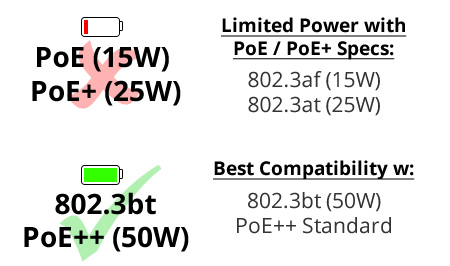

Not Compatible w. Standard PoE
Warning: Never use this device with a regular / standard PoE switch (limited to 15W)!
(Your power source will overload!)


Step by Step - With CAT5/5e/6
Locate a wall outlet (120-240V A/C) to your tablet mounting location - doesn't need to be nearby, can be up to 330' [100m] away. Plug in our VidaPower® Ultra Injector/Switch to the outlet, then connect a standard CAT/Ethernet cable to the appropriate port. Next, run the powered cable to your tablet location and connect it to the VidaCharger Ultra 2.

Finally, connect the USB-C cable into the VidaCharger Ultra 2, then run your charging cable to your device and voila - we've connected your device to an A/C outlet up to 330' away! You're good!
48V VidaCharger Ultra 2 Adapter Connection Example/Schematic

Designed in the USA
We design and engineer these pieces right here in Long Island, New York. We know your tablet setup / project incorporates hundreds or even thousands of dollars in time, software and hardware - so we thought it would be best to design and engineer the best protection for your display...right here in the USA!

Dimensions

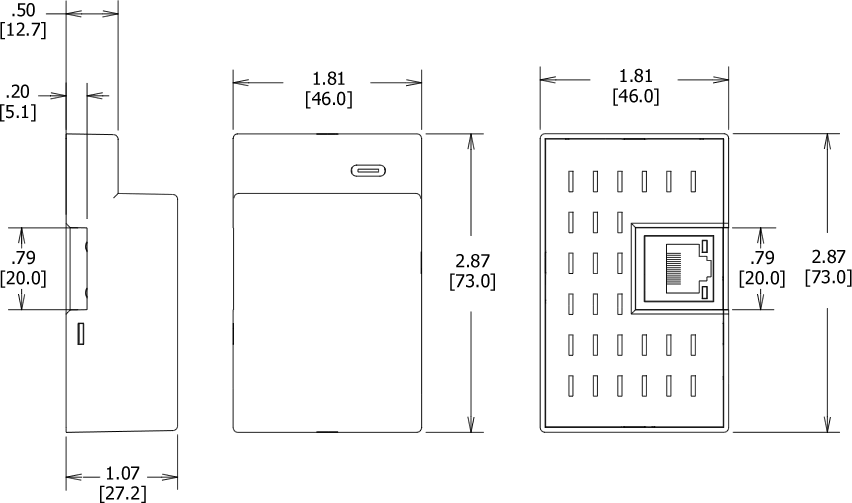

48V VidaCharger Ultra 2 Adapter Dimensions
* Device accepts 48V PoE Ultra / 802.3bt CAT5 / PoE power, and outputs USB-C power.

What's in the box
48V VidaCharger Ultra 2 USB-C Power Adapter
Installation Instructions
[Download]

Wiring Requirements
CAT5/5e/6 Ethernet Cable only
Not Compatible with:
- CAT3 (4-6 Pin) Wire, [or]
- Speaker Wire, or
- Any 2-conductor Wire


Additional Information

SKU/UPC VB00000003631
UPC No
HS / Harmonized Code 8504.40.7001
Net Length 2.87" [73mm]
Net Width 1.81" [46mm]
Net Height 1.07" [28mm]
Net Weight 3.4 oz [96.3g]
Package Length 3.95" [100mm]
Package Width 2.17" [56mm]
Package Height 1.59" [41mm]
Package Weight 3.9 oz [110g]
Other Supports 48V 802.3bt Power-over-Ethernet / Power Sources
(Charging Power Only, No Ethernet)

Up to 375' [115m] CAT5 cable length
Fits into most US single gang boxes
