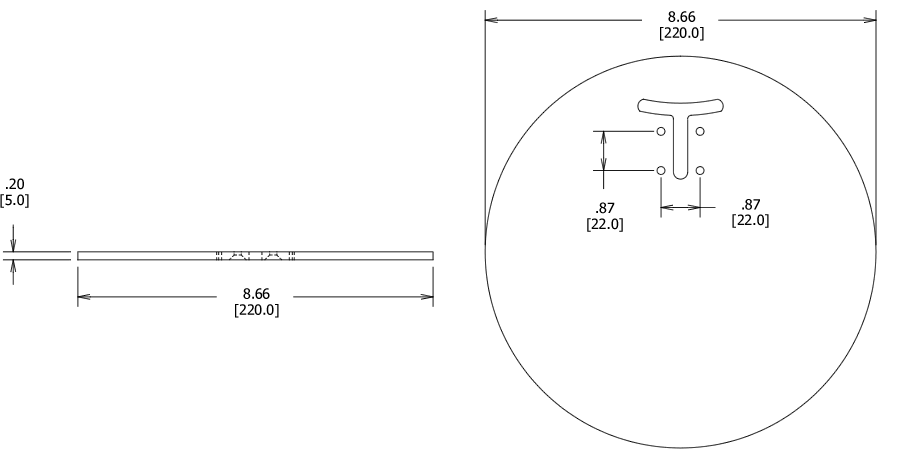

Dimensions Base Piece for Surface Mounts
A Stand Alone Option

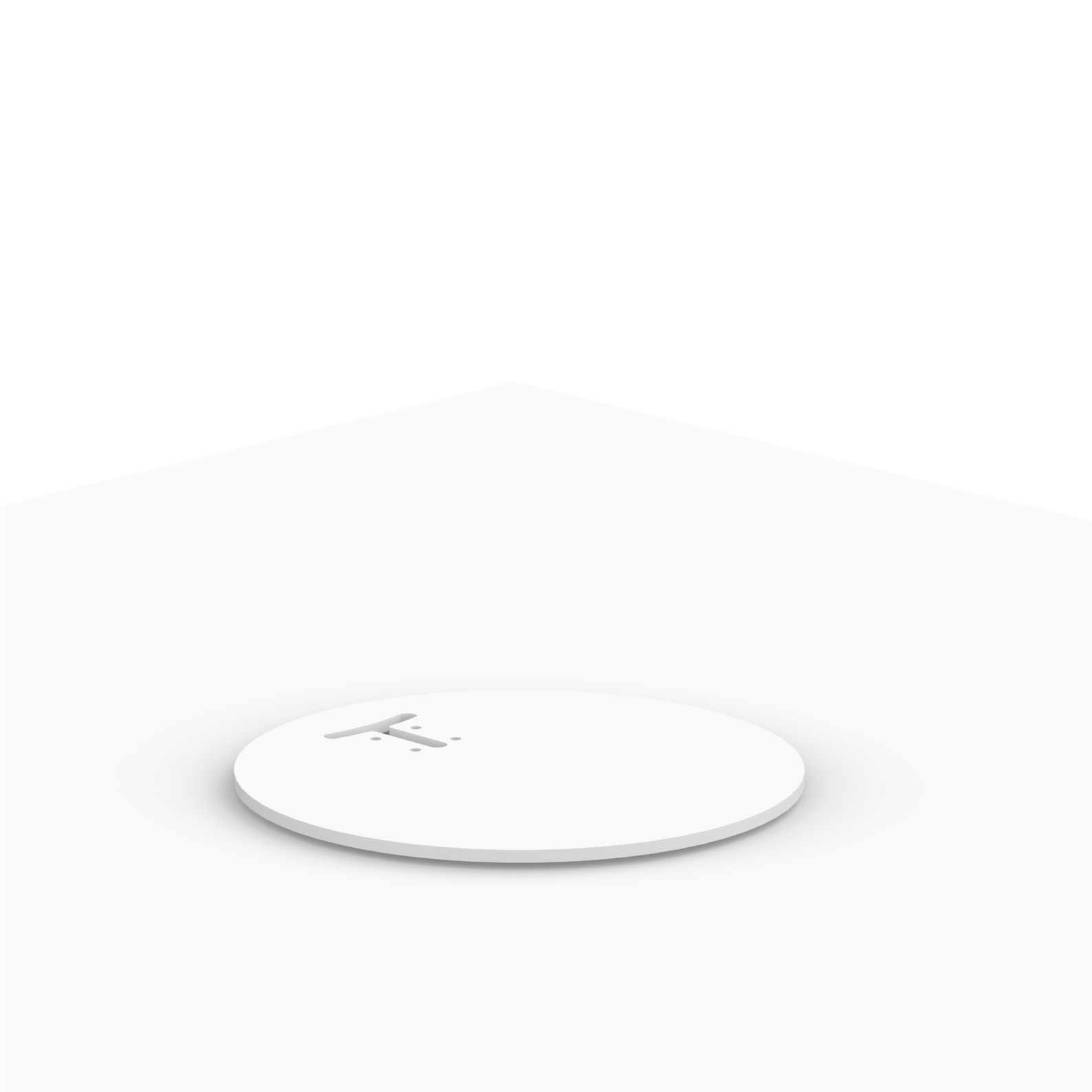

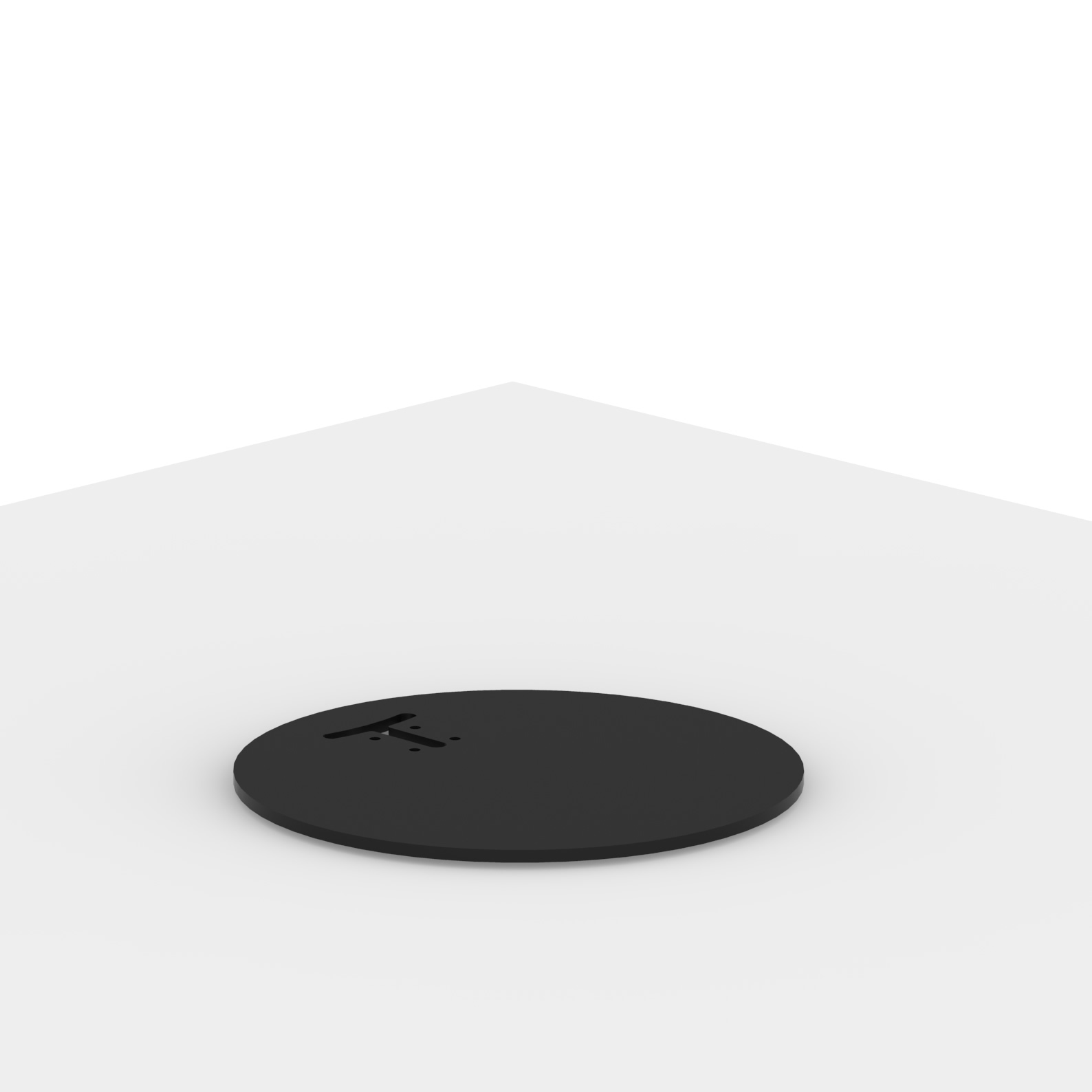

The Round Base Piece for the Flexible (FLX) or Fixed Surface (FXS) Mount transforms the surface mounts into portable Vesa Displays. The base piece allows for the surface mounts to freely stand on a surface, desk, table or counter top. Ideal for tradeshows, counter / table top exhibits, quick set ups or satisfying the need for portablity. The base piece makes your kiosk or vesa compatible set up, portable as it elegantly dispalys your tablet or other VESA compatible device.
IMPORTANT: NOT COMPATIBLE with newer FXS2 / Fixed Desk/Wall Surface VESA Mount 2 design!
IMPORTANT: NOT COMPATIBLE with newer FXS2 / Fixed Desk/Wall Surface VESA Mount 2 design!
Flexible or Fixed Display: Your Choice
Whether a Flexible or Fixed surface display is needed, this base piece has it covered. It is compatible with both VidaMounts and also allows for a quick and easy assembly. The base piece truly makes for a time efficient VESA compatible set up.
IMPORTANT: NOT COMPATIBLE with newer FXS2 / Fixed Desk/Wall Surface VESA Mount 2 design!
IMPORTANT: NOT COMPATIBLE with newer FXS2 / Fixed Desk/Wall Surface VESA Mount 2 design!
Non-Slip Base
The non-slip pads located on the bottom of the base piece allow for stability and portability, all at the same time. These provide balance and strength to the base and to your surface mount kiosk at large. No slipping or moving allows for ease of interaction for users.
What's in the box
Round Base Piece for Surface Mounts
(4) M4 x 12mm Philiips countersink screws
(1) Kensington Lock Add-on For Flexible Surface Mount
Installation instructions [Download]
WARNING: California Prop 65This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to P65Warnings.ca.gov
Additional Information
| SKU/UPC | VB00000001302 |
|---|---|
| UPC | No |
| HS / Harmonized Code | 830249 |
| Net Length | 8.66" [220mm] |
| Net Width | 8.66" [220mm] |
| Net Height | 0.2" 5mm] |
| Net Weight | ~3 pounds [1.36kg] |
| Package Length | 15.25" [387mm] |
| Package Width | 11.4" [290mm] |
| Package Height | 1.65" [42mm] |
| Package Weight | 3 lbs, 7 oz [907g] |
| Other | Compatible with VB_VESA_MNT_FLX and VB_VESA_MNT_FXS NOT COMPATIBLE with VB_MNT_FXS2 (Newer model) |
| Color | N/A |
