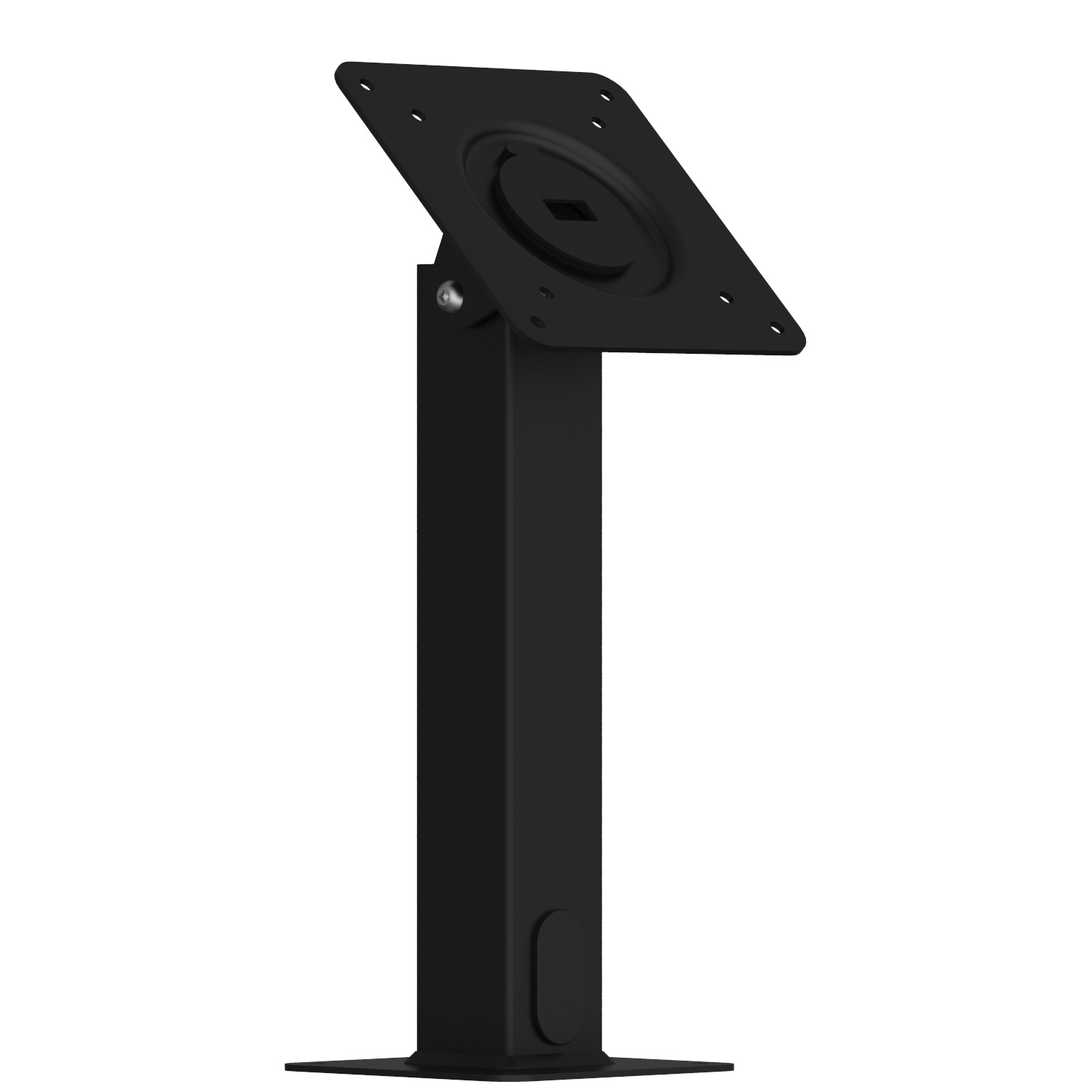

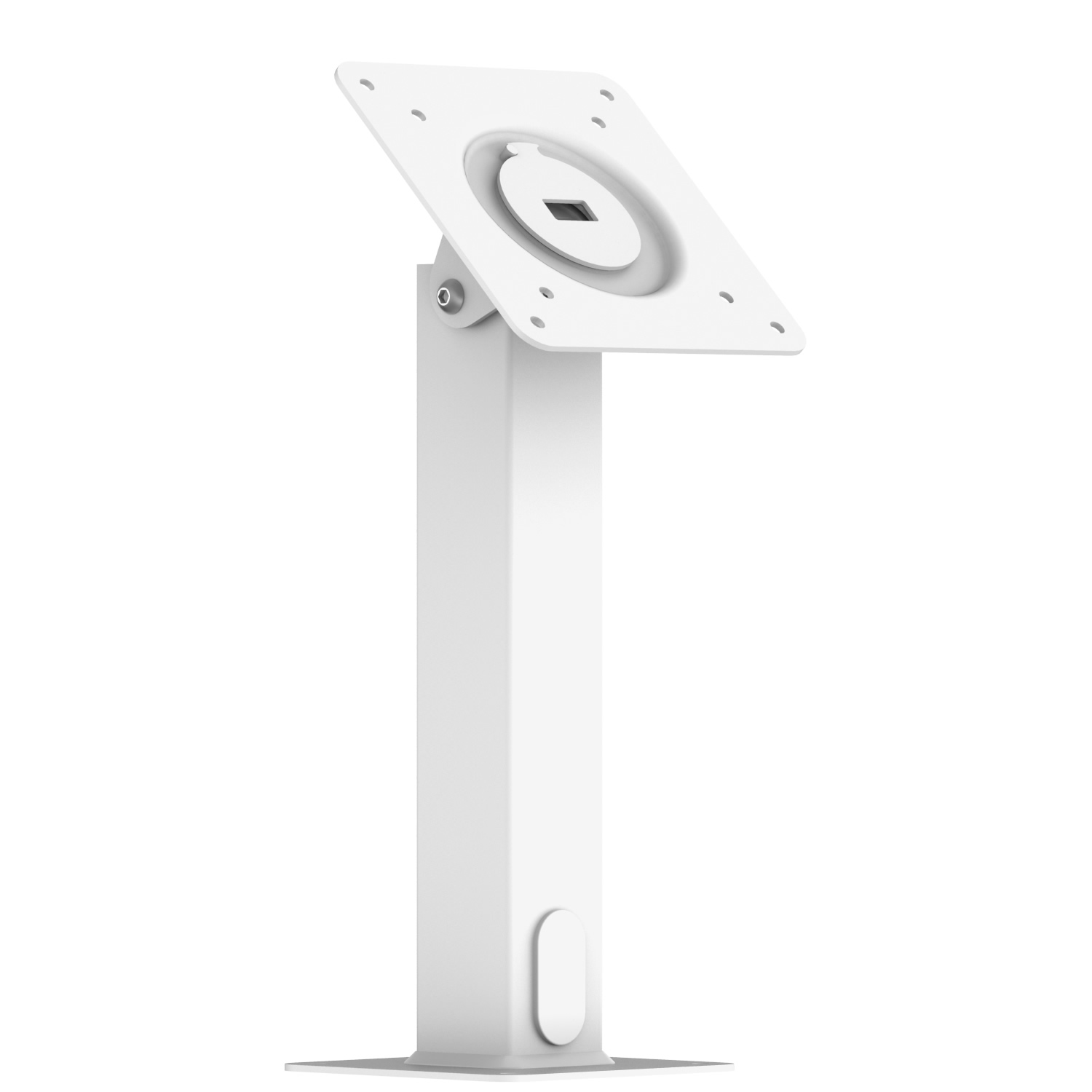

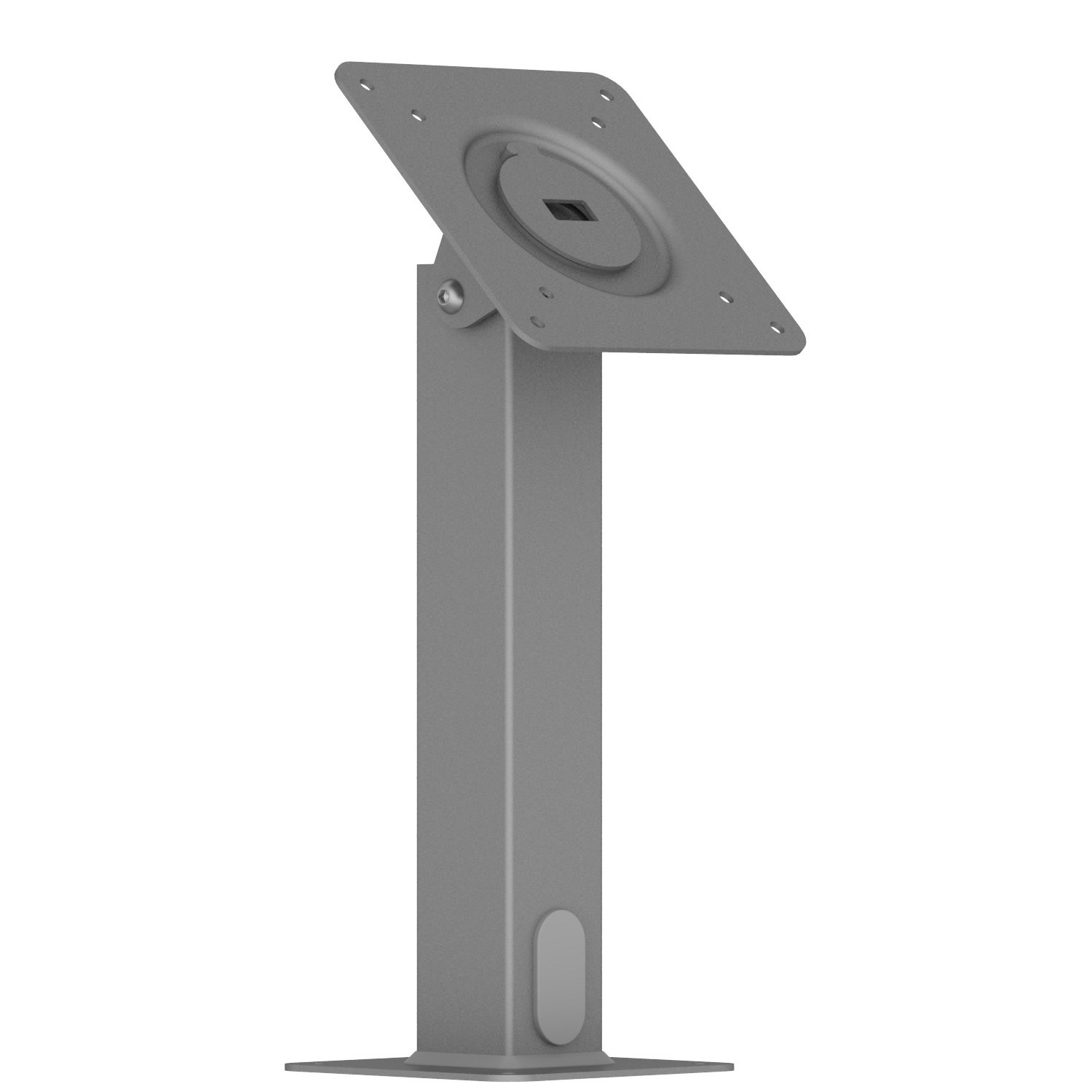

360 Tilting & Rotating VESA Surface Mount 9"

Quick Overview

9-inch tall version of our VESA 75/100 surface mount that rotates & tilts 360 deg.
(VESA Mount only. Tablet enclosure NOT included)
  • Black - +$46.49
  • Silver - +$46.49
  • White - +$66.49

* Required Fields

$46.49
Availability: How to check stock?
Simple & Secure
Sturdy steel construction means our mount is strong, yet its hinged assembly allows for both tilt and swivel flexibility, packaged into a solidly engineered design.

360 Tilting VESA Surface Mount Exploded View

Endless Adjustability
The VESA mounting plate provides a full 360 degree rotation, while the mounting surface can be pivoted for optimal positioning. Secure friction joints lock your chosen position in place while allowing for easy adjustment, as needed. Both viewing angle and plate rotation can be locked in place independently as required. Can be mounted vertically on a desk or table, or horizontally on a wall - making it truly versatile.
VESA 360 9-inch Tilting Surface Mount Adjustable

VESA Mounting Points
VESA 75 & 100 (75mm & 100mm) compatible mounting points means it can be used with a wide range of VESA compatible tablet enclosures, including all of our VidaMount VESA Tablet Enclosures.

VESA 100-75 Compatible Surface Mount

VESA 360 9-inch Rotating Tilting Surface Mount Adjustable - Wire Management

Wire Management
Charging cables can be passed through the mounting plate's center hole - which is rectangular in shape to allow for most USB connectors to pass with ease - and into the mounts' square hollow mounting tube. Once in the tube, the cable can be passed through the bottom, or exit out the side by removing the oval shaped cap. Everything is kept nice, neat, and out of sight!

Dimensions
360 Tilting VESA 9-inch Surface Mount Dimensions

What's in the box
360 Tilting & Rotating VESA Surface Mount
(4) #8 x 1 1/2" wood screws
(4) M4 x 8mm machine screws
Installation instructions [Download]

Additional Information

SKU/UPC VB00000000670
UPC No
HS / Harmonized Code 830249
Net Length 10.8" [274mm]
Net Width 4.7" [119mm]
Net Height 4.7" [119mm]
Net Weight 2 lb., 6 oz. [1.08kg]
Package Length 11.9" [300mm]
Package Width 6.5" [165mm]
Package Height 6.5" [165mm]
Package Weight 2 lb., 11 oz [1.22kg]
Other 75x75mm and 100x100mm VESA Compatible
