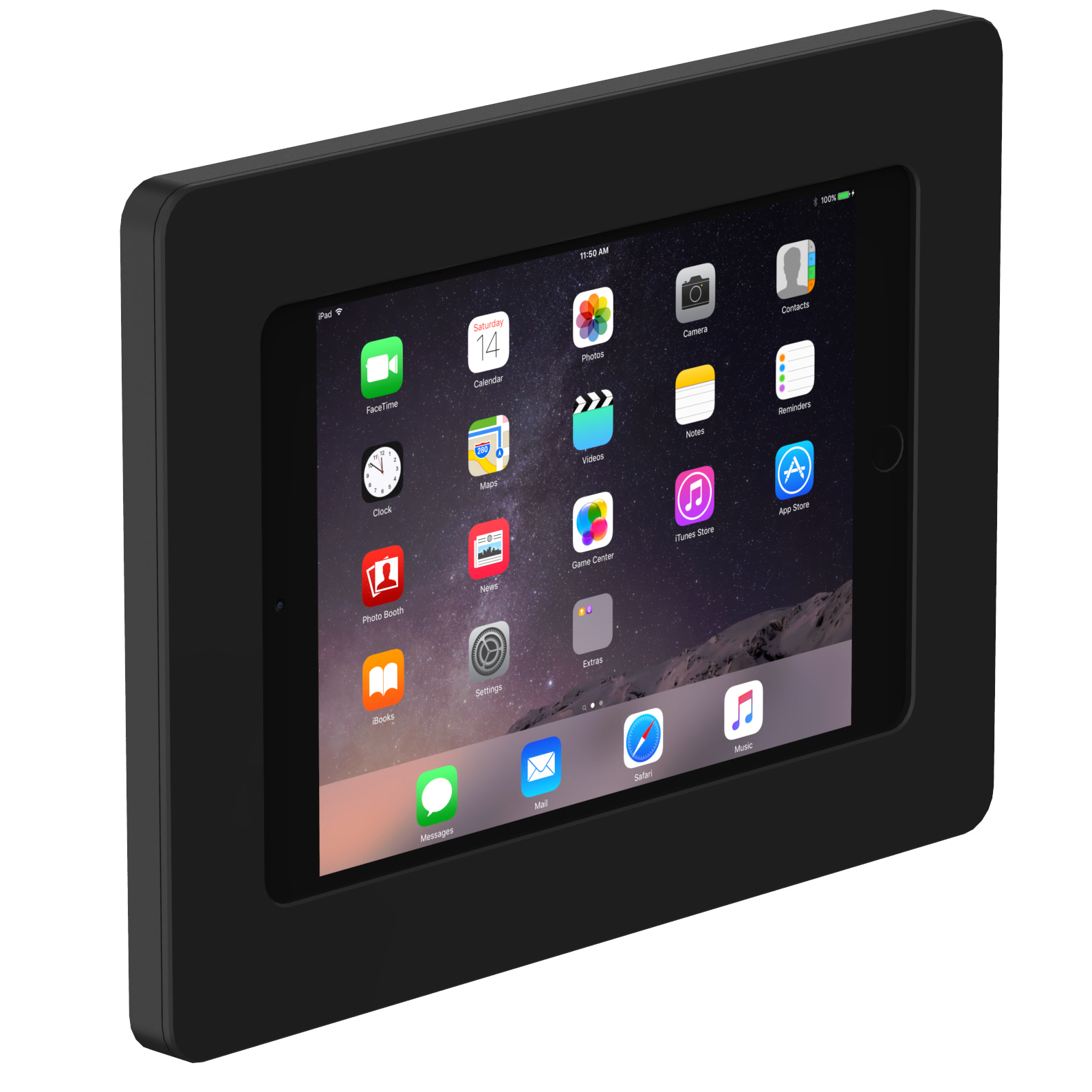

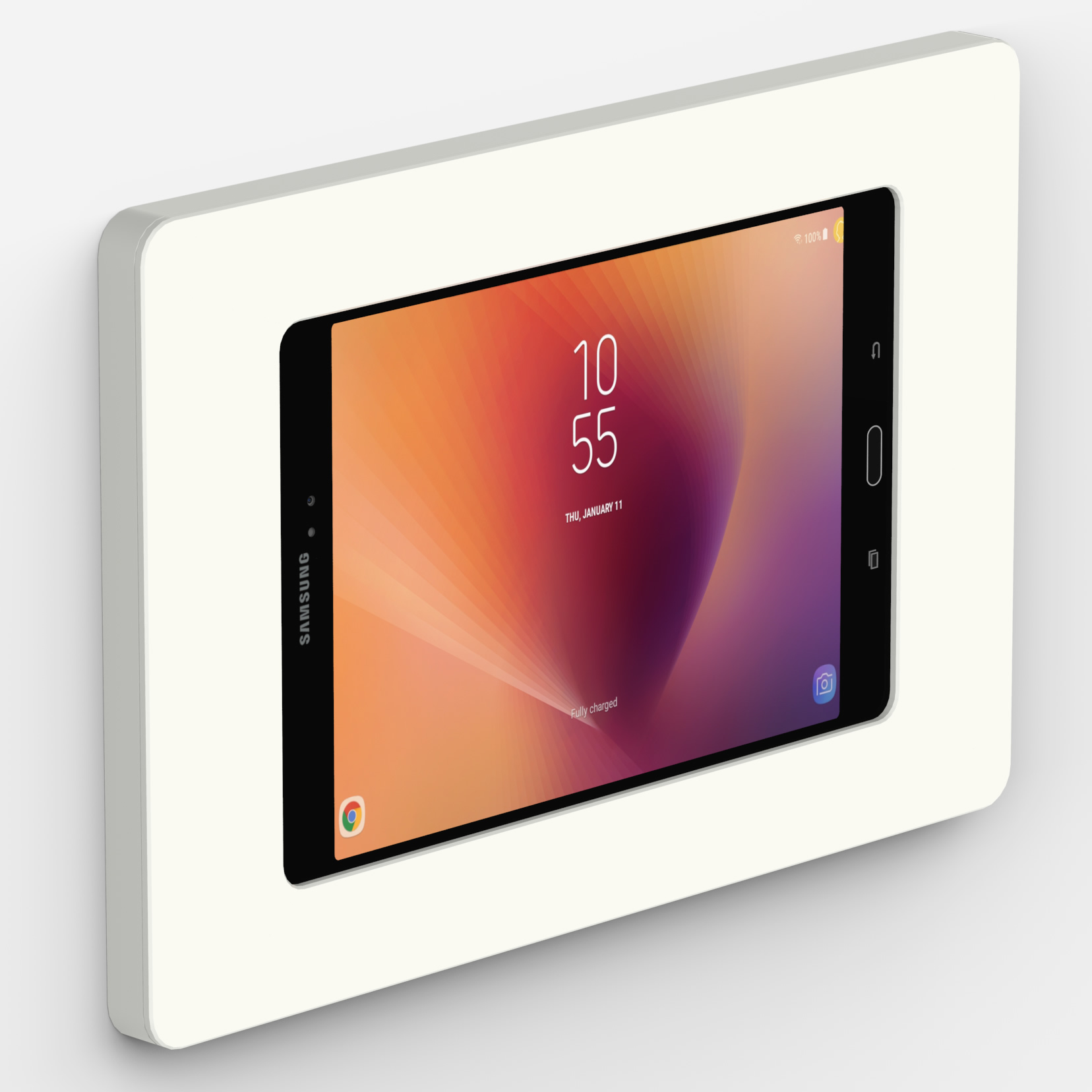

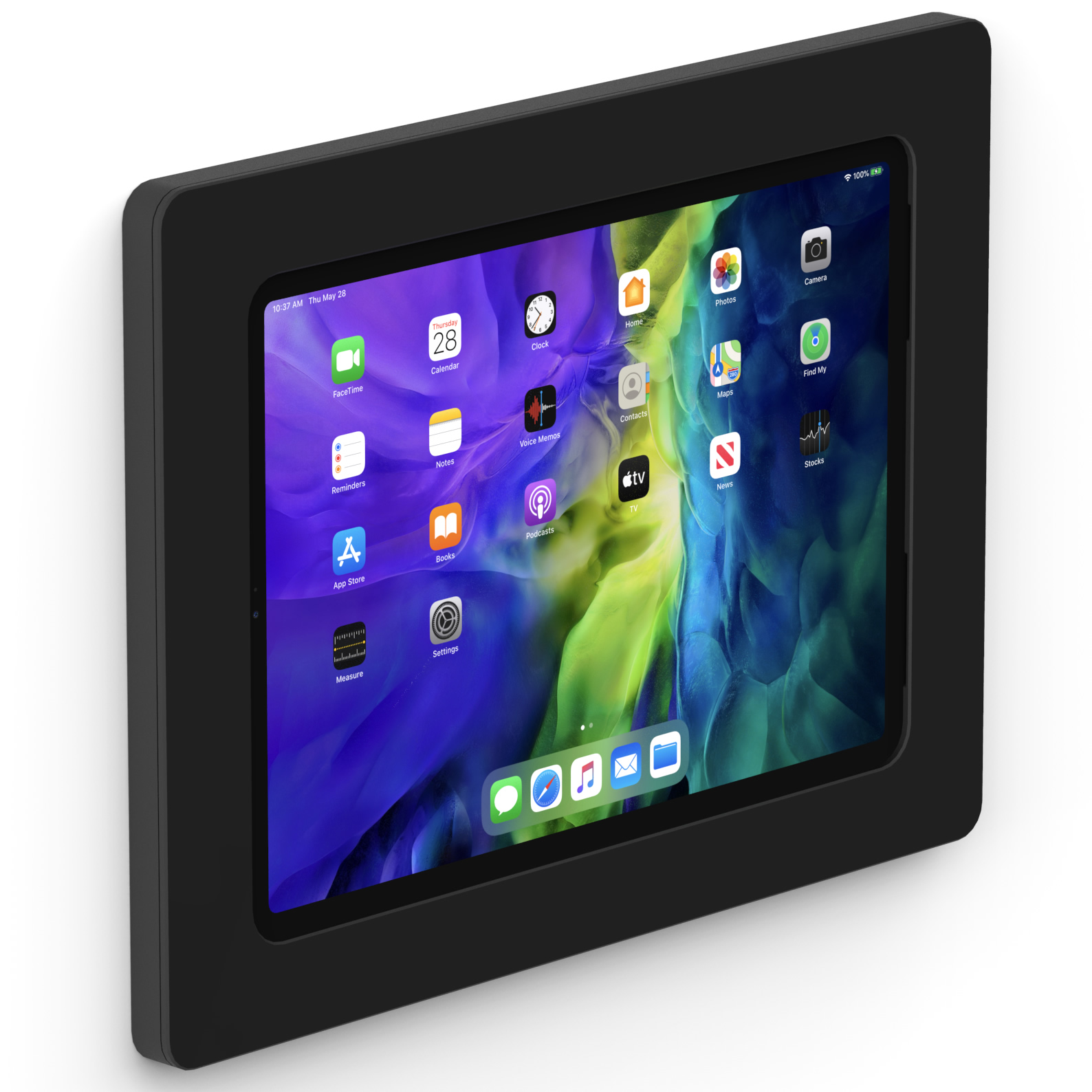

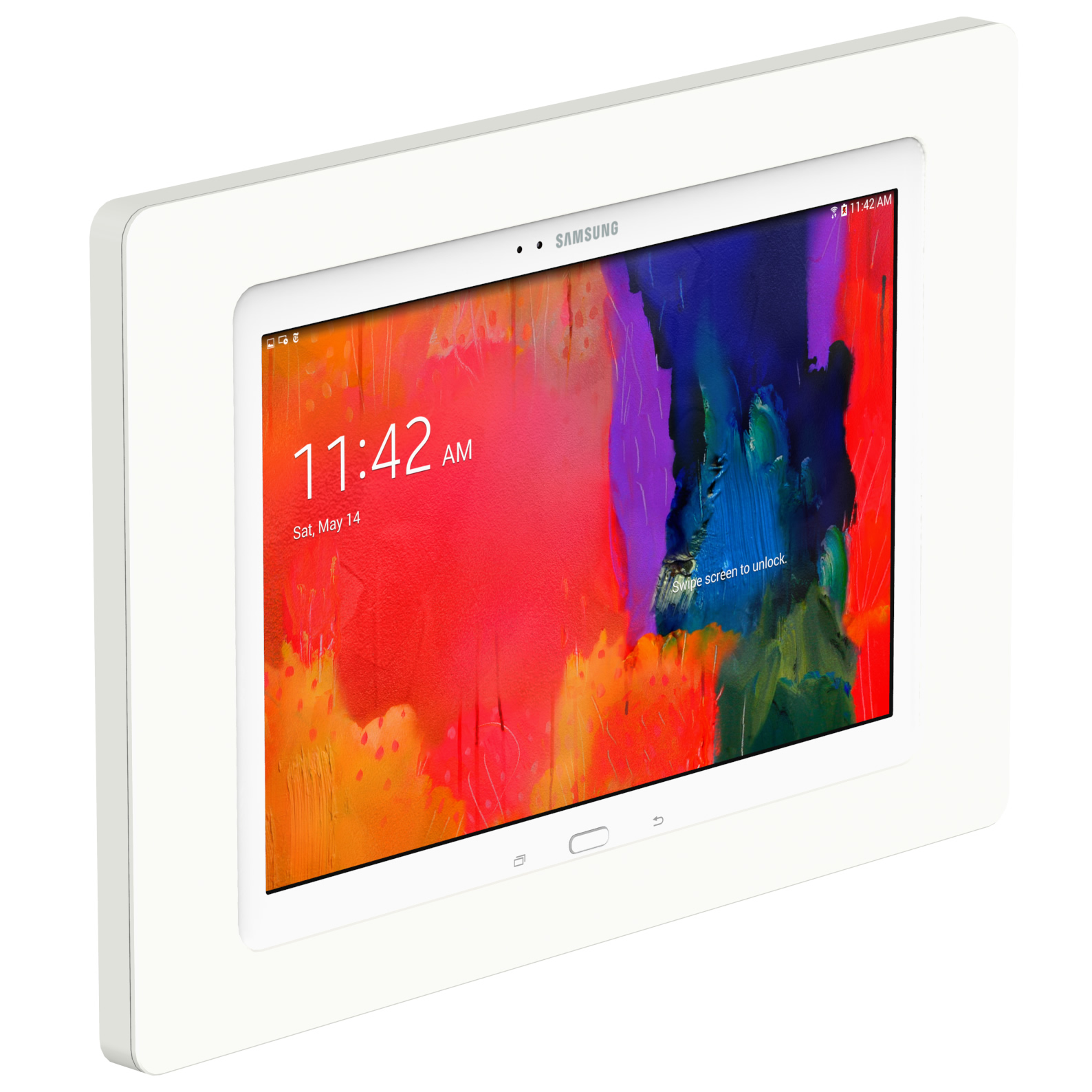

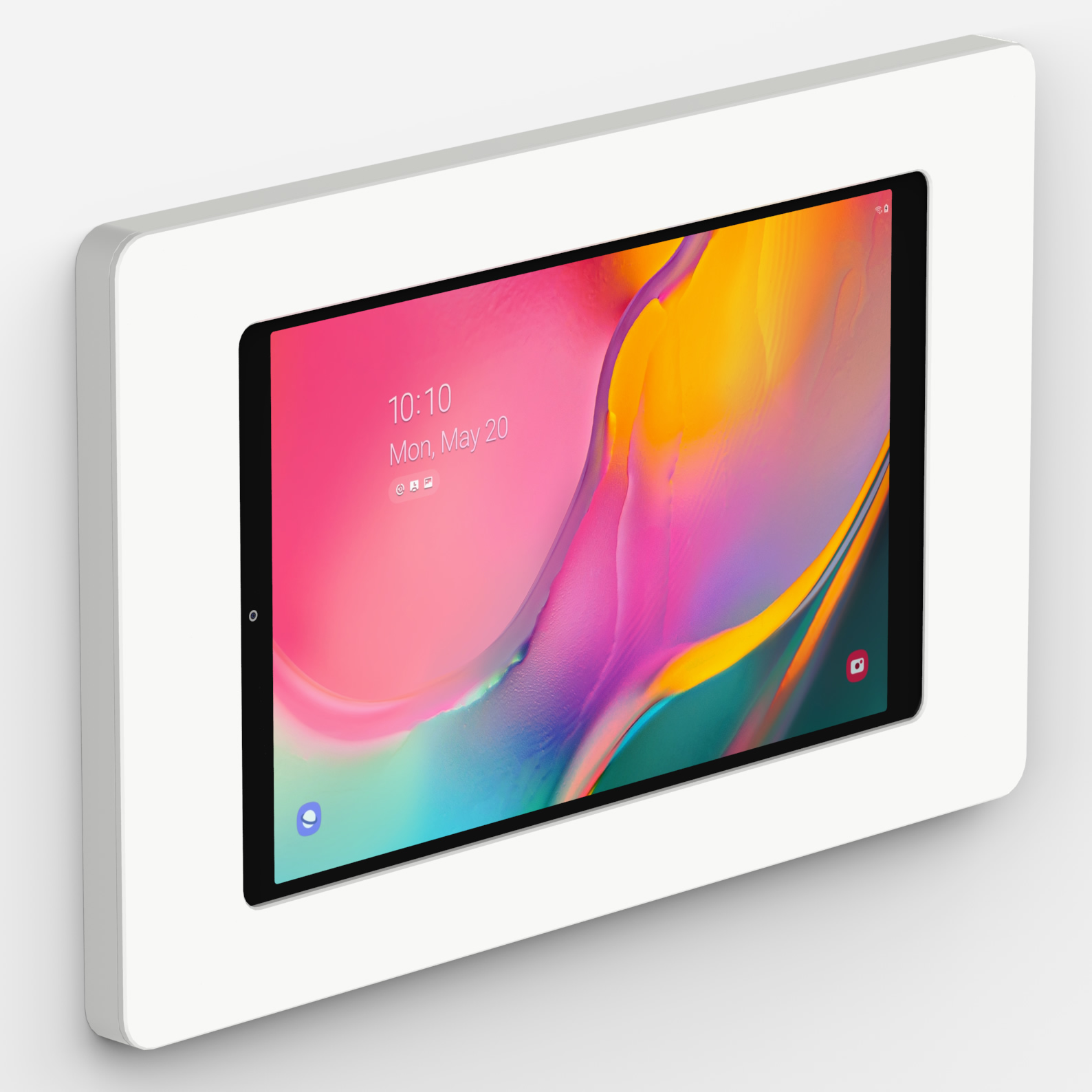

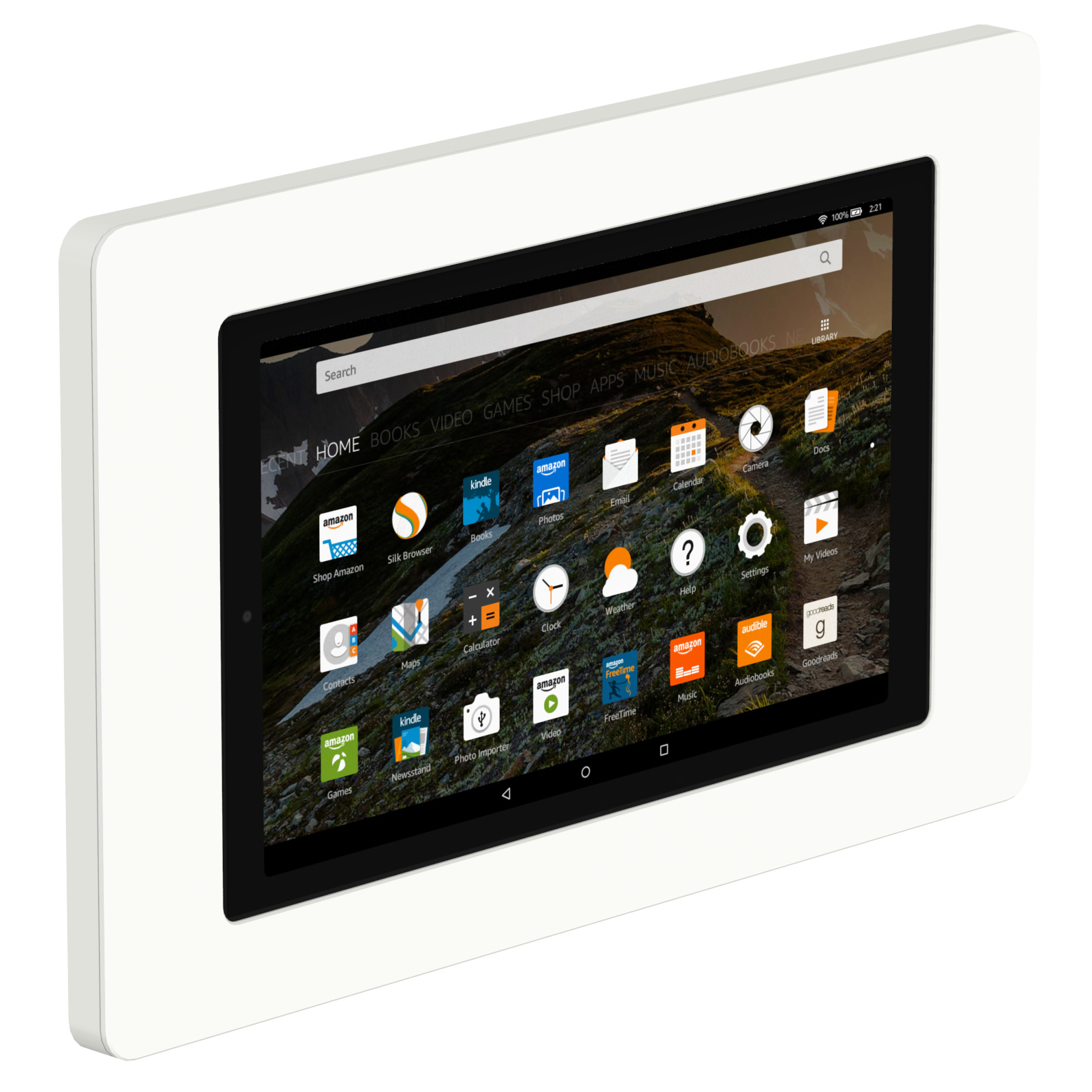

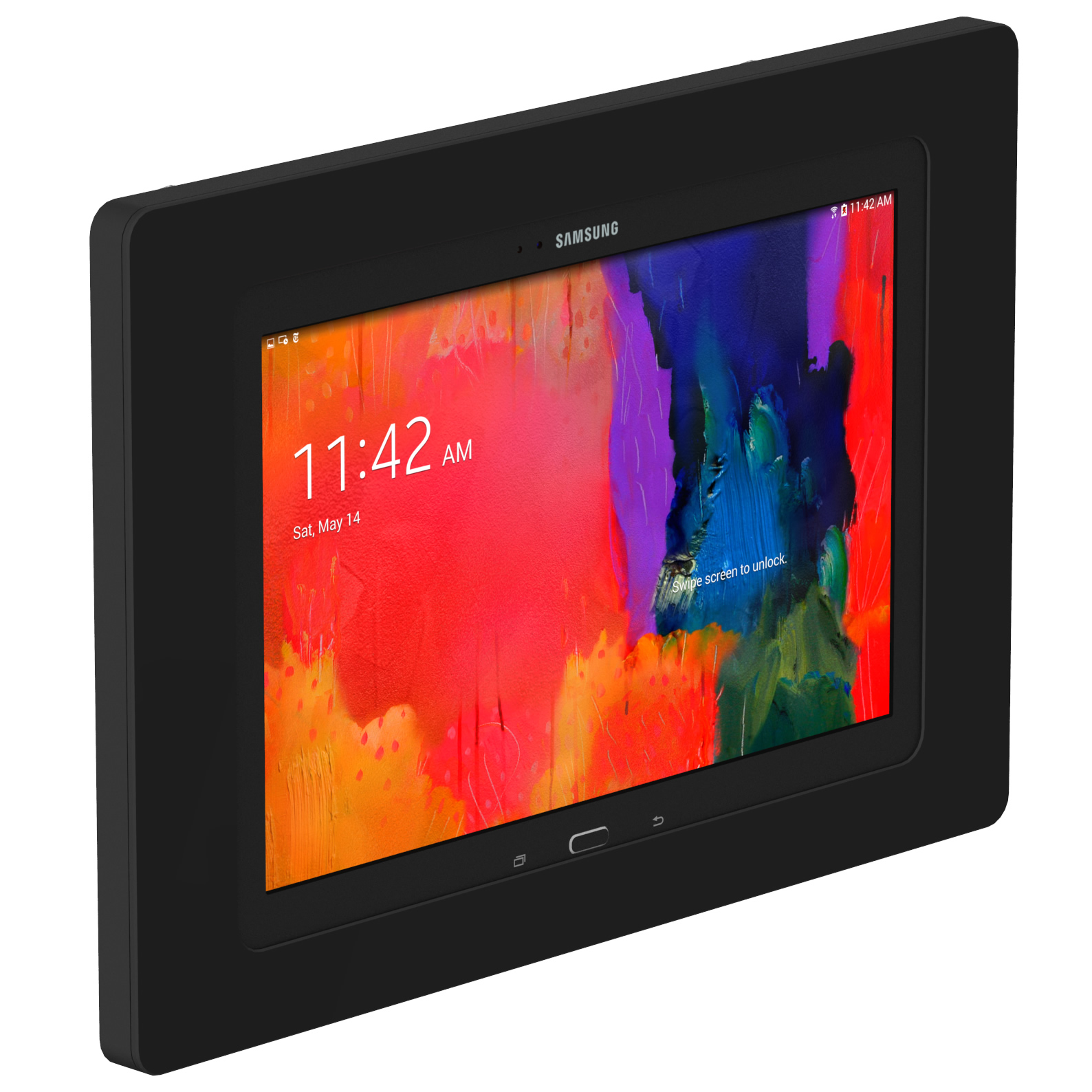

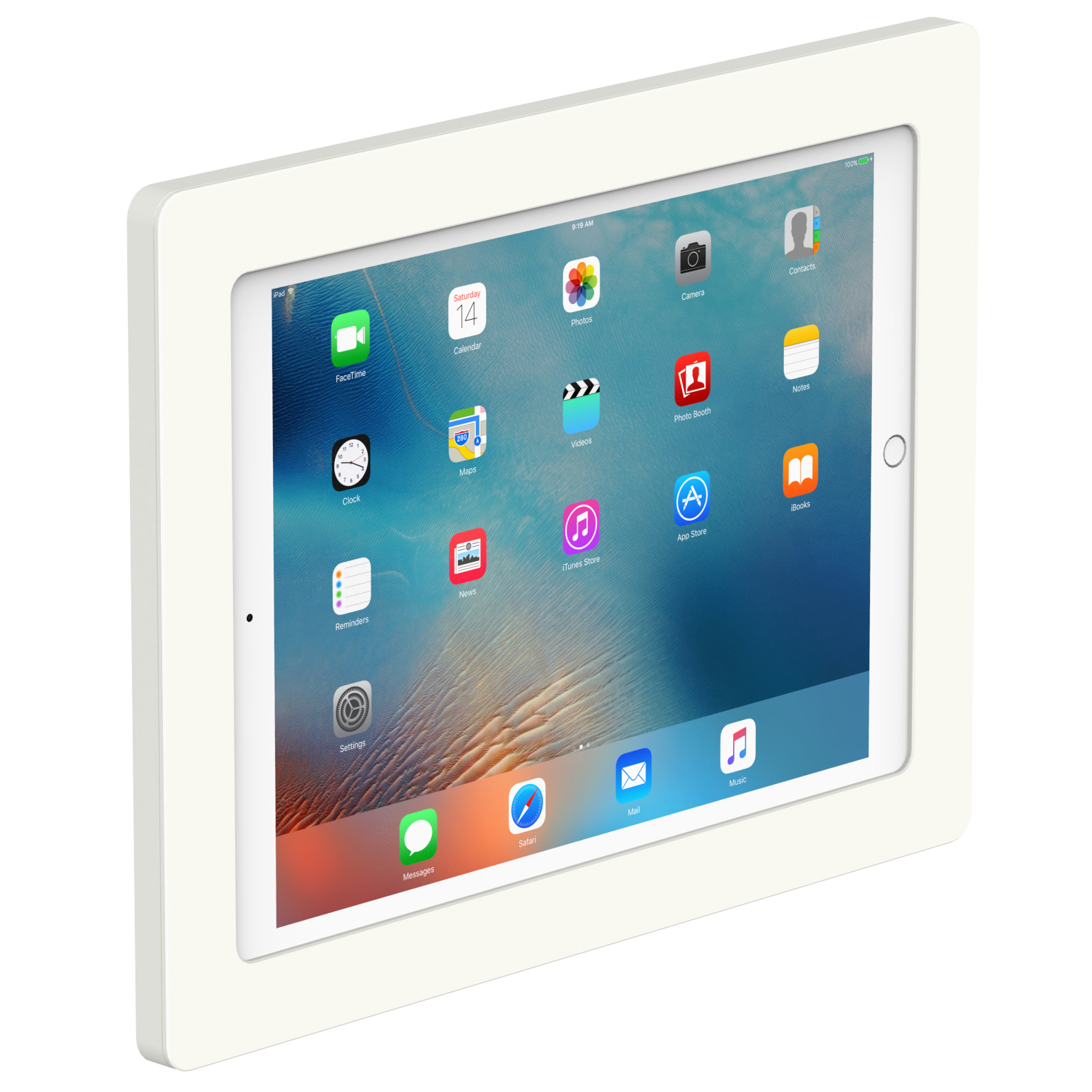

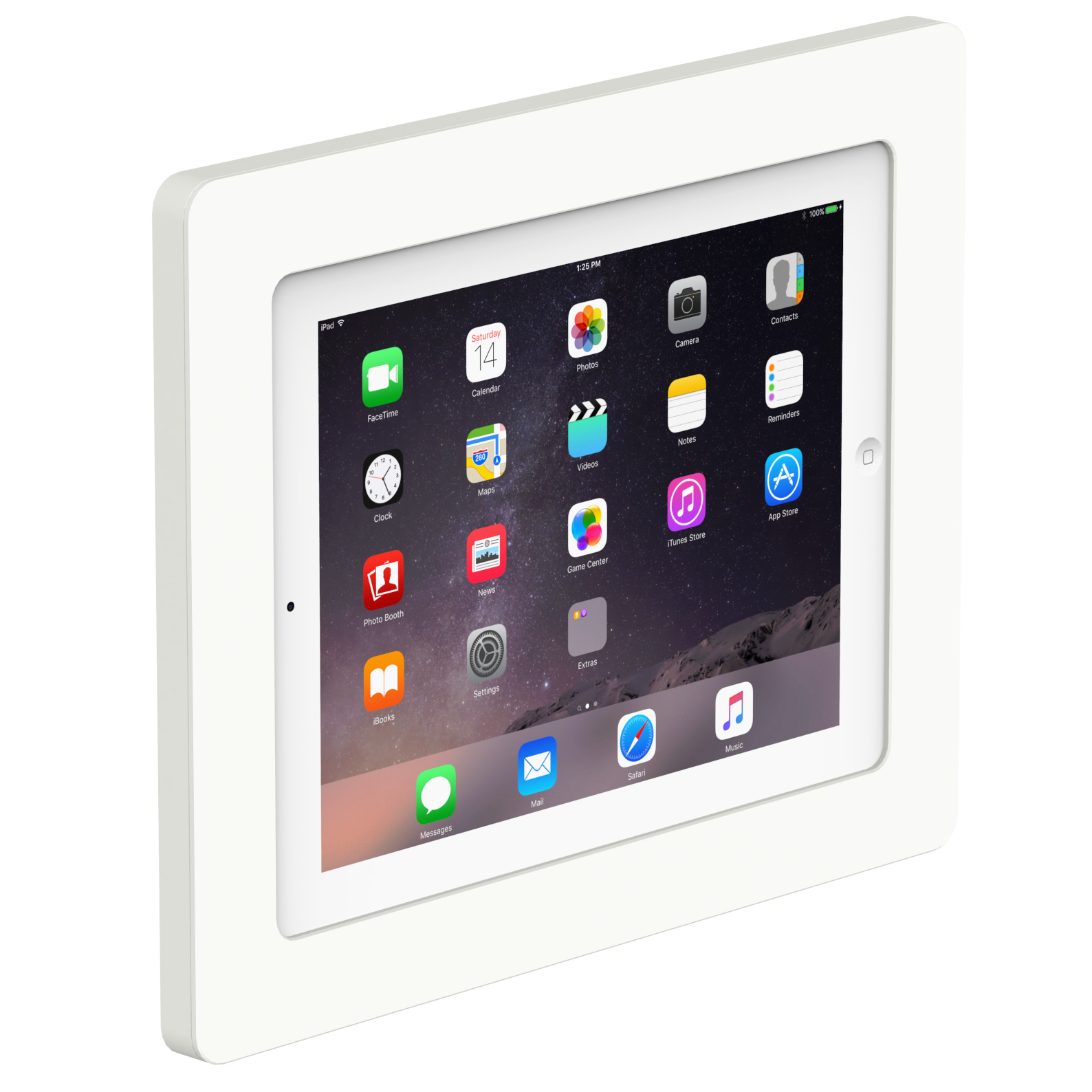

VidaMount On-Wall iPad Tablet Enclosure / Mount

Quick Overview

Low profile on-wall tablet enclosure with removable face plate / cover for fast, easy tablet access!
US Patent No. 10,809,764

* Required Fields

A$253.39
Availability: How to check stock?
Craftsmanship is in the Details
Our On-wall tablet enclosure is the perfect synthesis of form & function! At about 1/2" [12mm] thick and zero wall clearance (no gap), its low profile design will look great in any environment. The removable snap-on cover allows easy access to the enclosed - yet remains firmly in place, thanks to it's snap fasteners. Every piece is precision honed from a solid piece of high strength polymer - not molded or formed - for uncompromising strength and outstanding aesthetics.

US Patent No. 10,809,764



Wire & Cable Management
We thought of everything, from fitting your Lightning or USB power cables, to a perfectly sized opening for your 3.5mm headphone jack and cord (including some add-on credit card readers). Our enclosure was designed to fit your needs.

The USB charging cable can be passed through the enclosure's rear wire cavity, which allows us to route it to an electrical gang box with a recessed wall charger, or our VidaChargers for USB power 24/7! Everything is kept nice, neat, and out of sight!

Snap-on cover
We understand that at times, getting access to the enclosed tablet is required. Maybe the tablet needs to be rebooted, or the tablet needs to be removed all together. Our iPad / Tablet mount makes this easy! The cover is held firmly in place via our precision fitted snaps - yet is easily removed with a minimal amount of force.


No Wall Cutout Required
What would you rather do: Make a huge rectangular cutout? Or, drill four holes in your wall? (We are guessing drill four holes!) Luckily, that's all we'll need to do to install our iPad / Tablet on-wall mount. This means you can mount our enclosure on any surface - be it drywall, masonry, or tile - easily!

Competing In-wall enclosures require big cutouts - making their installation more complicated, and require placement between wall studs - forcing placement to be less than ideal. (Besides, who knows what's hiding behind that wall anyway? We would rather not find out!)


Portrait or Landscape
Sometimes, certain apps such as meeting room scheduling or reservation software are locked to a landscape orientation. Maybe the time card or "check in" app we're using is designed for a portrait view. No worries! Our iPad / Tablet enclosure can be mounted in portrait or landscape orientations.

Tablet Accessibility
We've made it easy to get access to the iPad / Tablet at any time. The removable snap cover makes this fast. The mount itself allows access to the tablets power button without having to physically remove the tablet - handy in cases where the tablet needs to be restarted.



Low Profile Design
It's all about the looks! That's why we have designed this enclosure with a low profile that measures about 1/2” [13mm].

Keep the Tablet Charged!
With our PoE charging solution (components sold separately), you can keep your tablet your plugged in and charging 24/7!

Locate a wall outlet [1] up to 330' (100m) away. Plug in our VidaPower® PoE++ Injector [Option A] or our VidaPower® PoE++ Switch [Option B] to the outlet, and [2] connect a standard CAT/Ethernet cable to the appropriate port.

Next, run the powered PoE/CAT5/5e/6 cable to your tablet location [3] and connect it to the 48V VidaPower® DataCharger™ [International Only] or 48V VidaCharger™ Ultra [USA Only].

Finally, plug your VidaPower® High-Wattage USB-C Charging Cables to the USB-C port of the Adapter, connect your charging cable to your device [4] - and voila - we've connected wired power / data ! You're good!
48V VidaPower® DataCharger™ Connection Example/Schematic


Customize It!
From company logos to fancy wood finishes, or glossy highlights to embossing - our durable customizations help blend any enclosure into your home or office, or enhance branding for your business. Add this affordable option to truly make these enclosures your own! Click here to learn how to customize your own unique enclosure!


Manufactured in the USA
We design, engineer, and manufacture the right here in Long Island, New York. We know your tablet setup / project incorporates hundreds or even thousands of dollars in time, software and hardware - so we thought it would be best to build the best protection for your display...right here in the USA!
Dimensions
VidaMount On-Wall iPad Enclosure Dimensions
Tablet ModelWidth [W]Length [L]Thickness [T]Mount Hole Width [Y]Mount Hole Length [X]
iPad Mini
1, 2, 3, & 4
7.30"
[185.5]
9.85"
[250.1]
0.53"
[13.4]
6.3"
[160.1]
7.00"
[177.7]

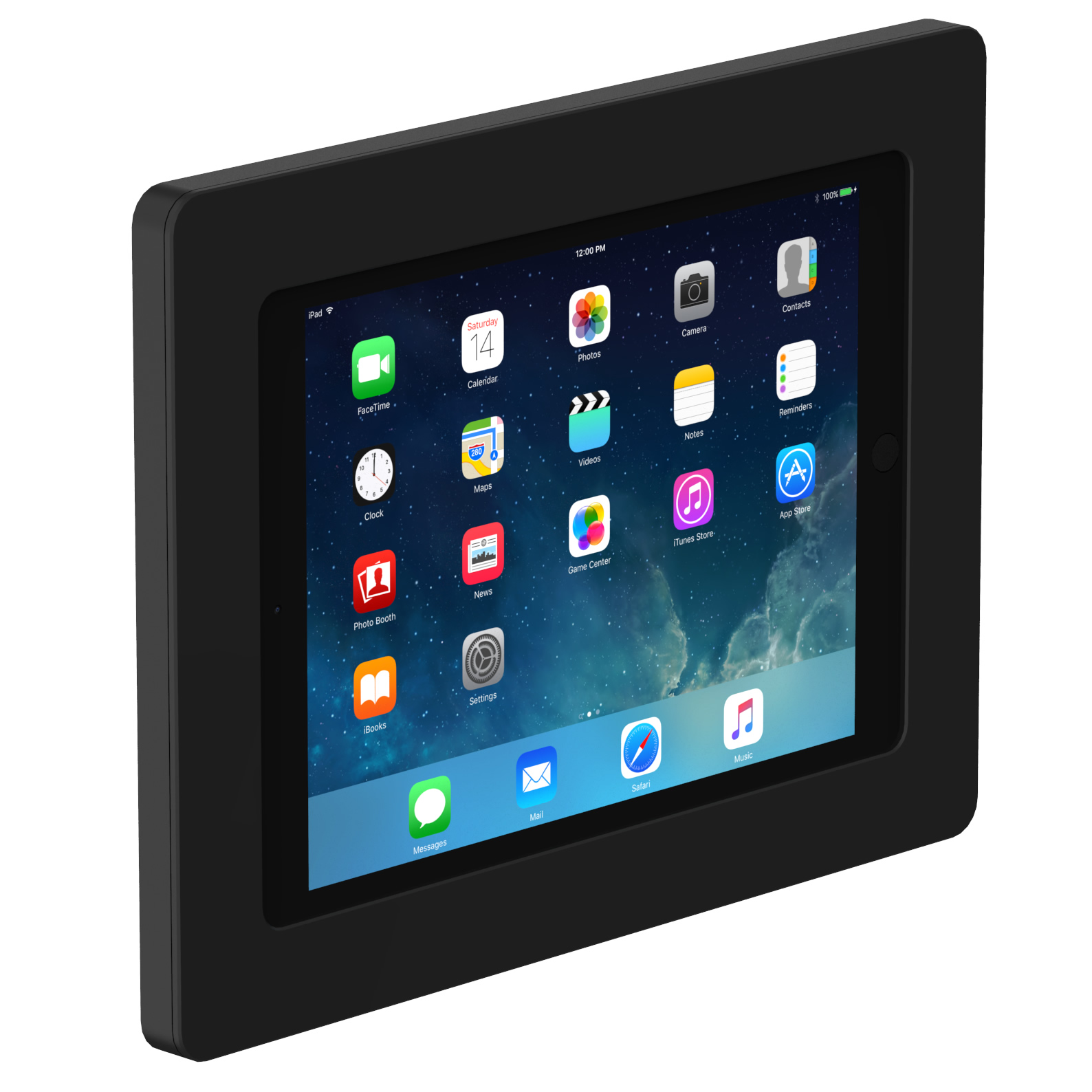

iPad Air
1 & 2, Pro 9.7"
8.67"
[220.2]
11.44"
[290.6]
0.53"
[13.4]
7.67"
[194.8
8.59"
[218.2]
iPad
2, 3 & 4
9.31"
[236.5]
11.47"
[291.3]
0.60"
[15.2]
8.31"
[211]
8.62"
[218.9]

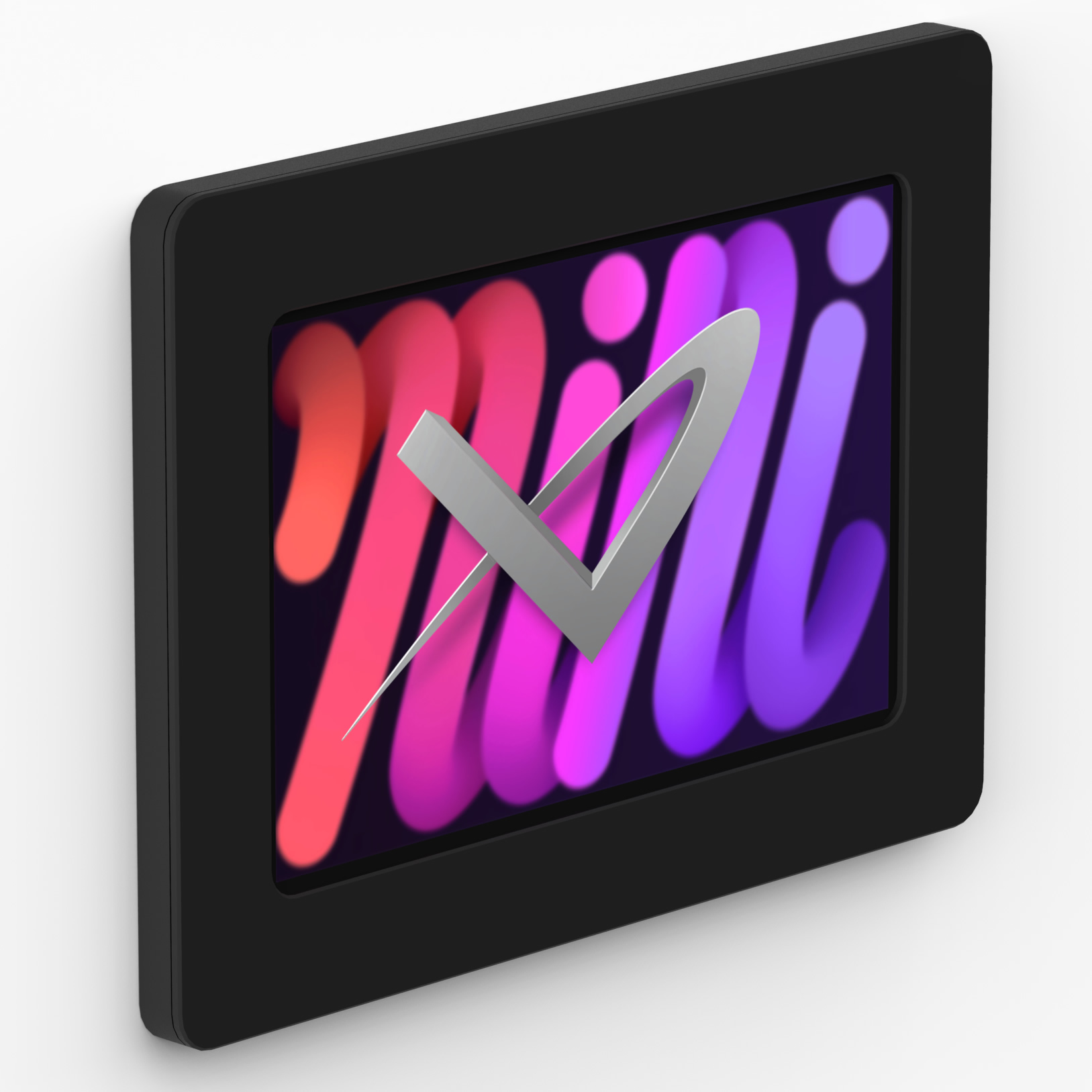

VidaMount On-Wall Enclosure iPad mini (6th Gen - 2021) Dimensions

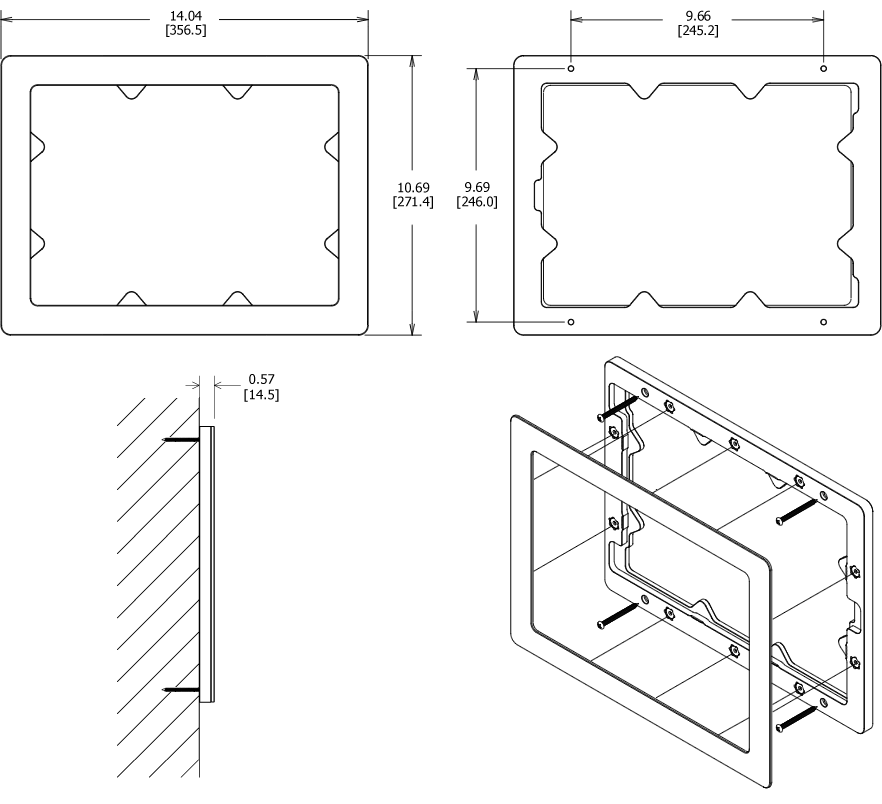

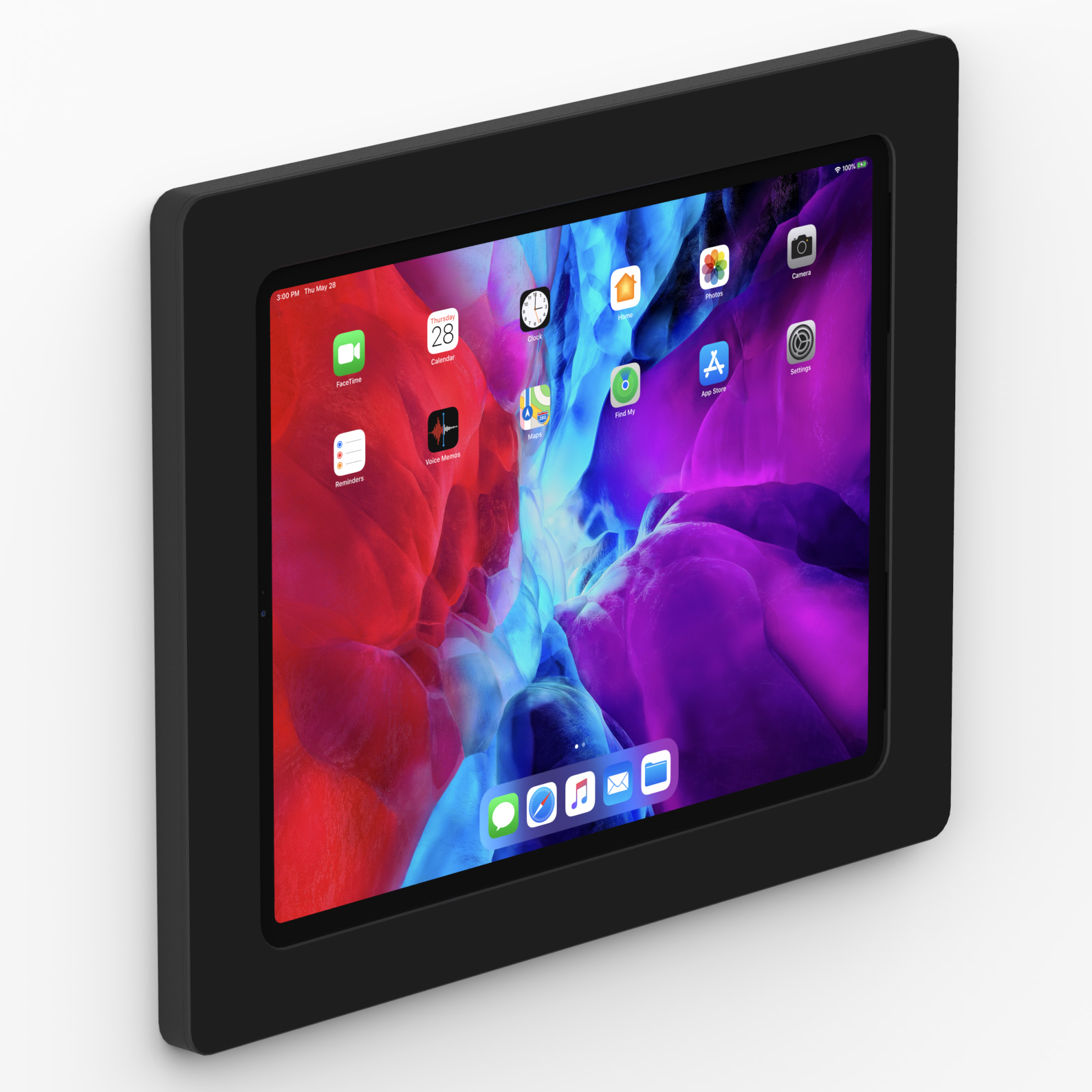

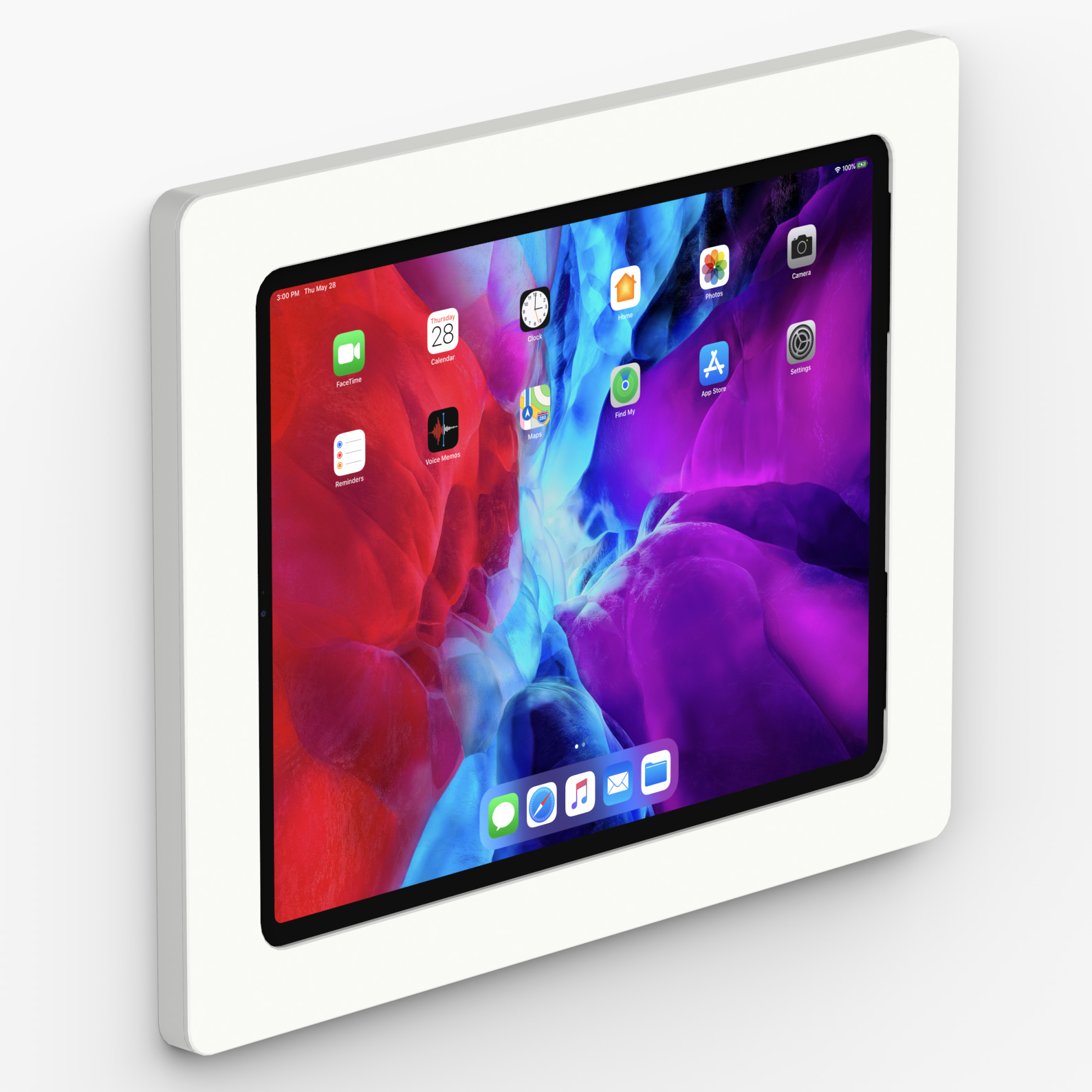

VidaMount On-Wall Enclosure iPad Pro 12.9

VidaMount On-Wall Enclosure iPad Pro 12.9

VidaMount On-Wall Enclosure iPad Pro 12.9

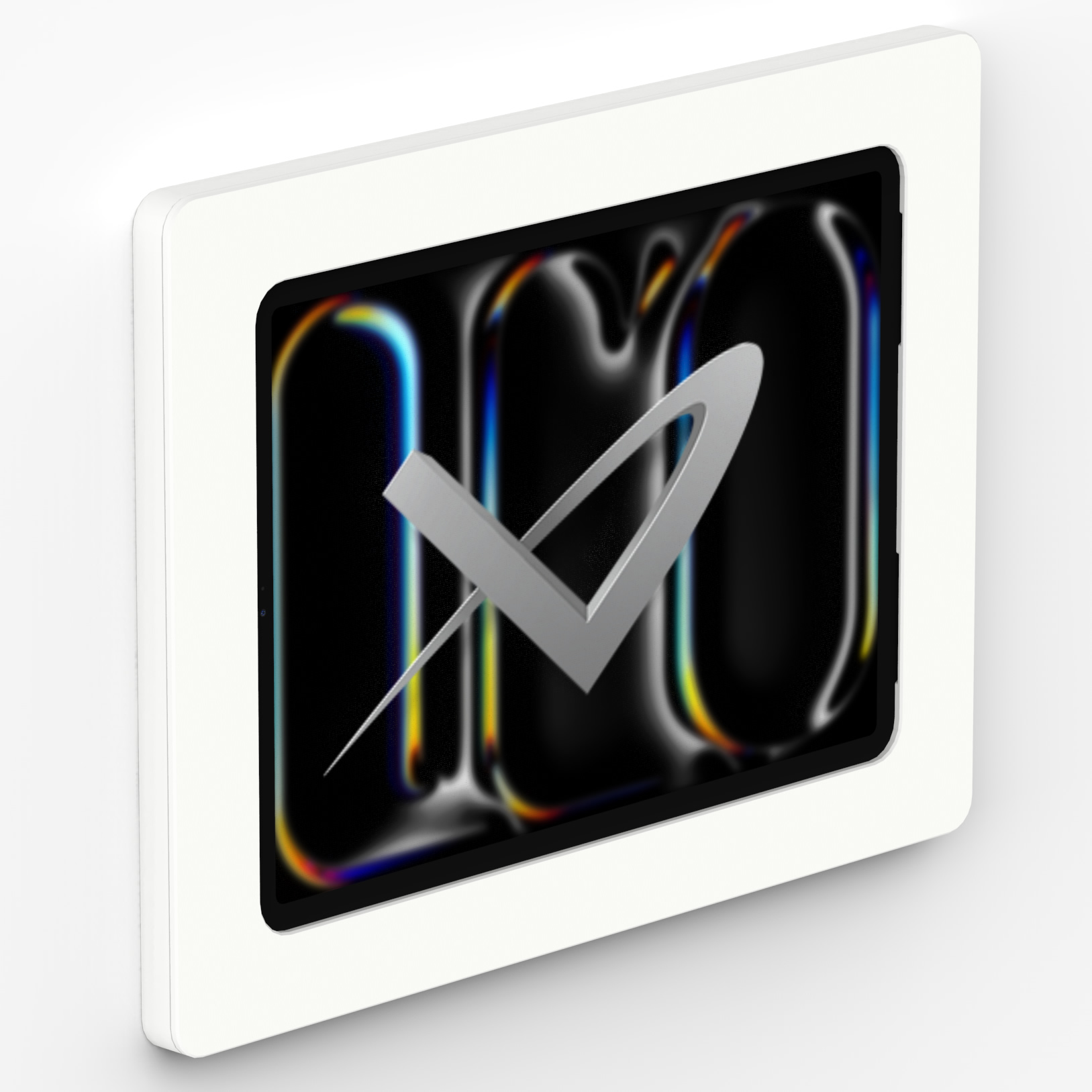

VidaMount On-Wall Enclosure iPad Pro 11

VidaMount On-Wall Enclosure iPad Pro 11

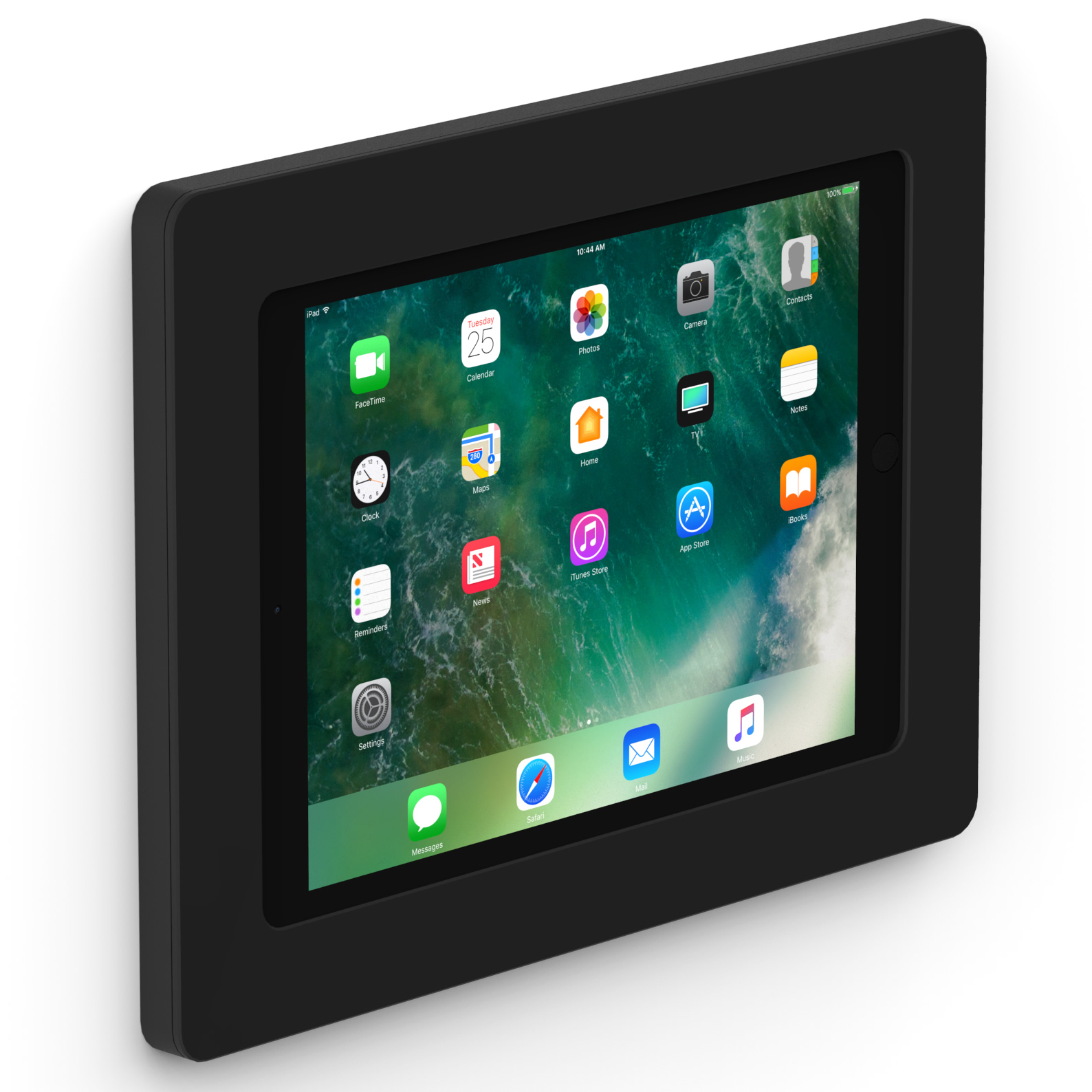

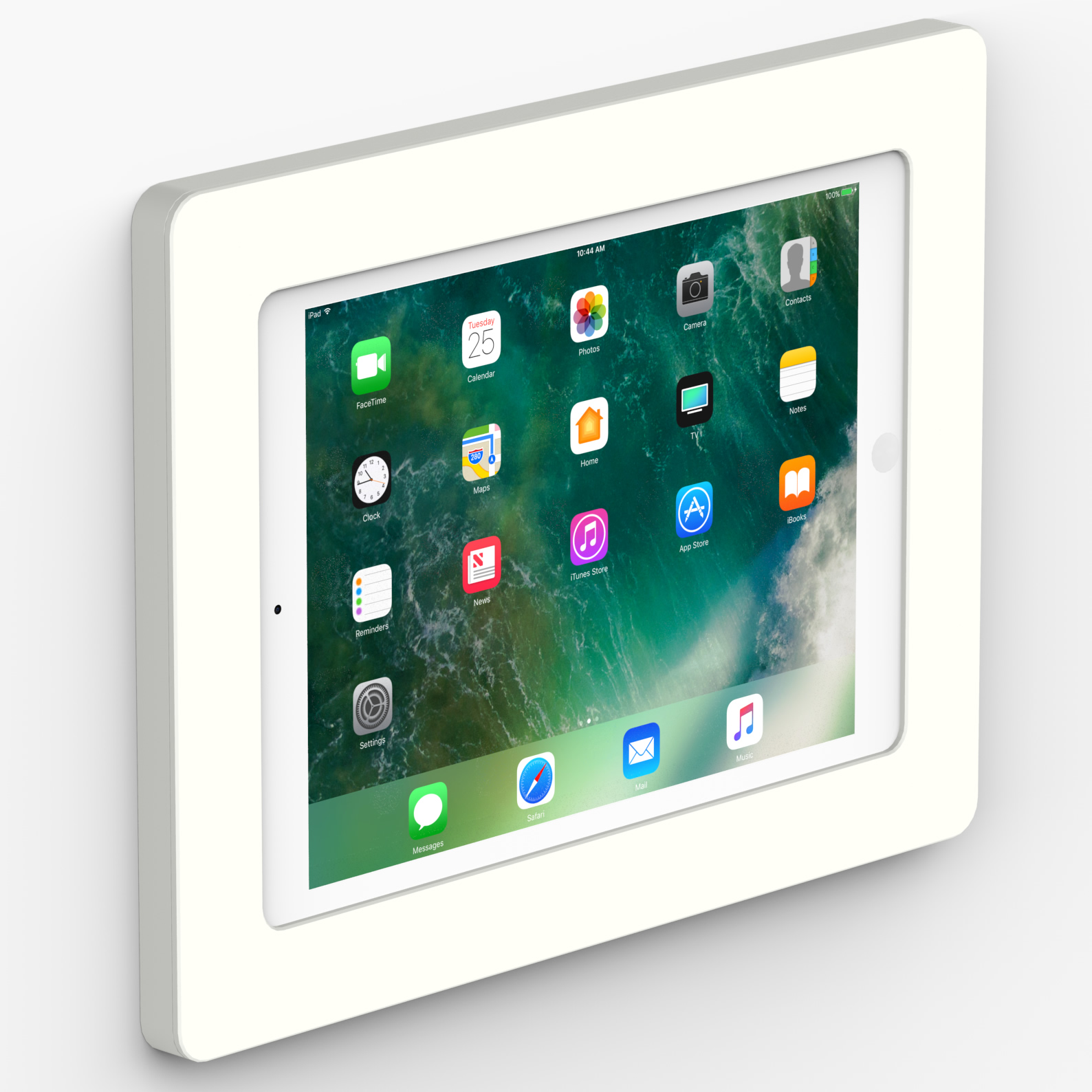

VidaMount On-Wall Enclosure iPad Pro 10.5

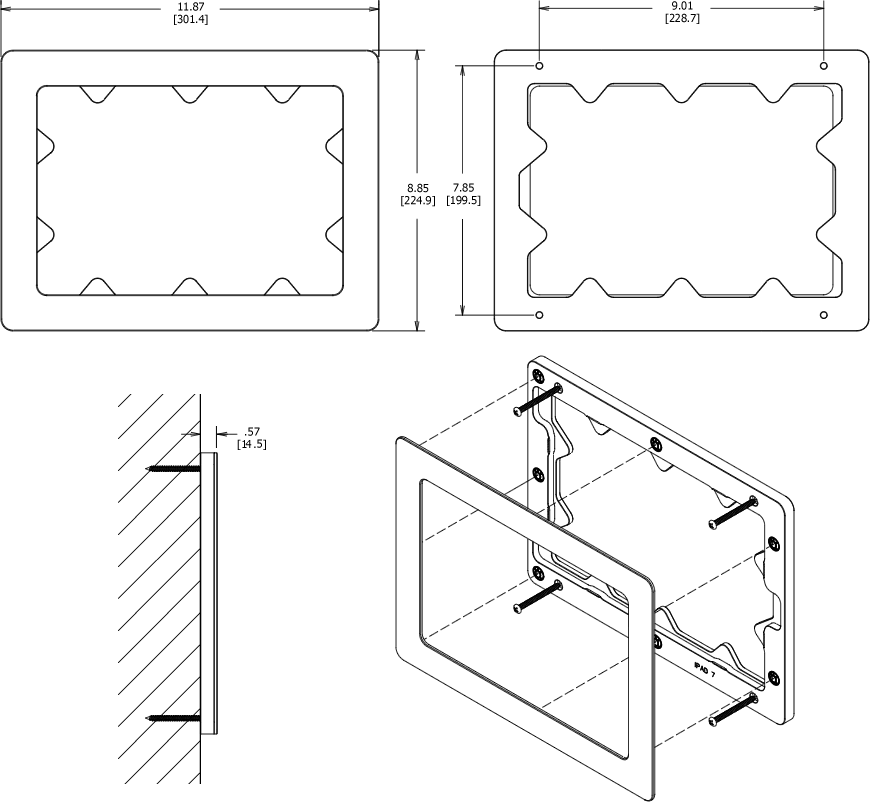

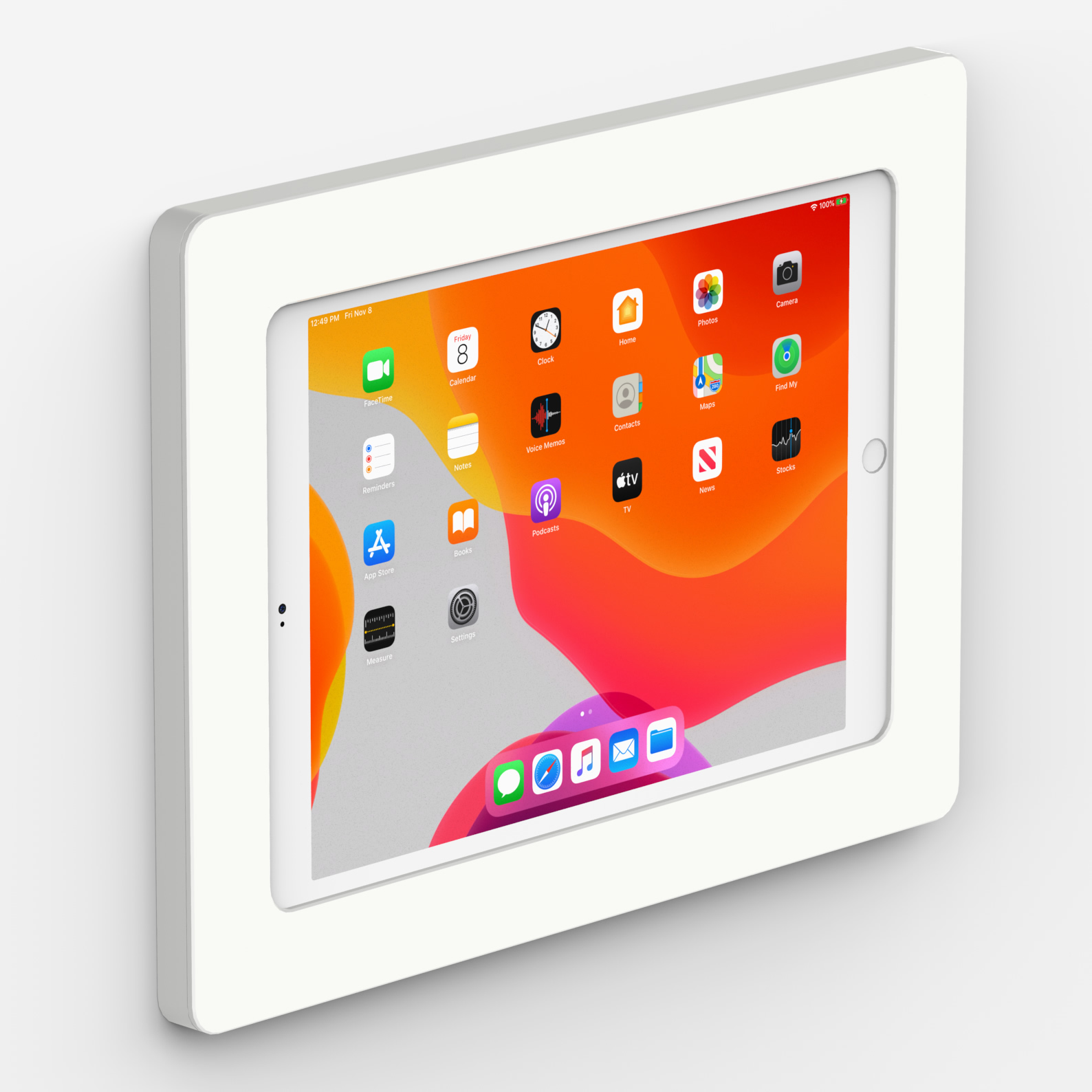

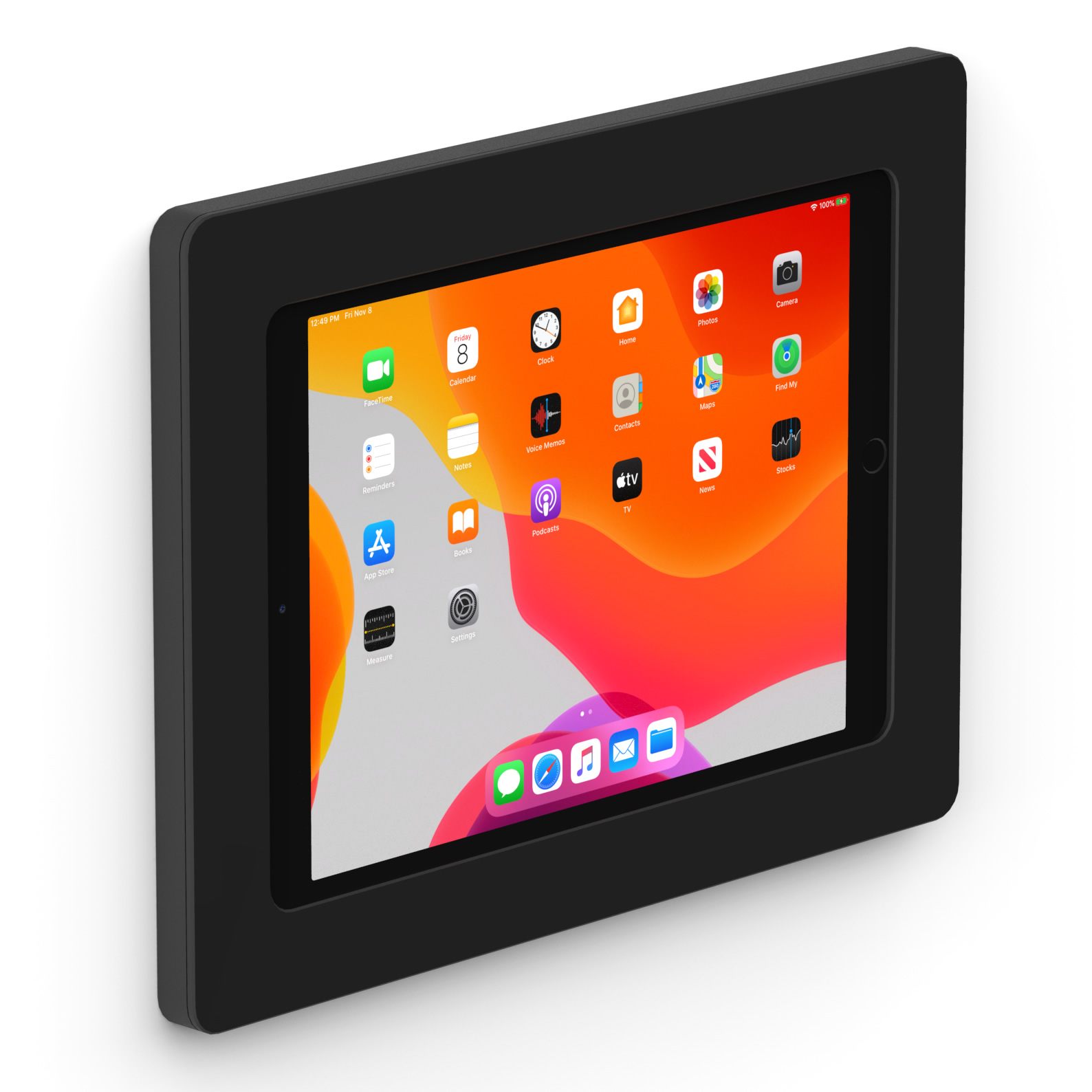

VidaMount On-Wall Enclosure iPad 10.2

VidaMount On-Wall Enclosure Amazon Fire 5th Gen 7-inch Dimensions

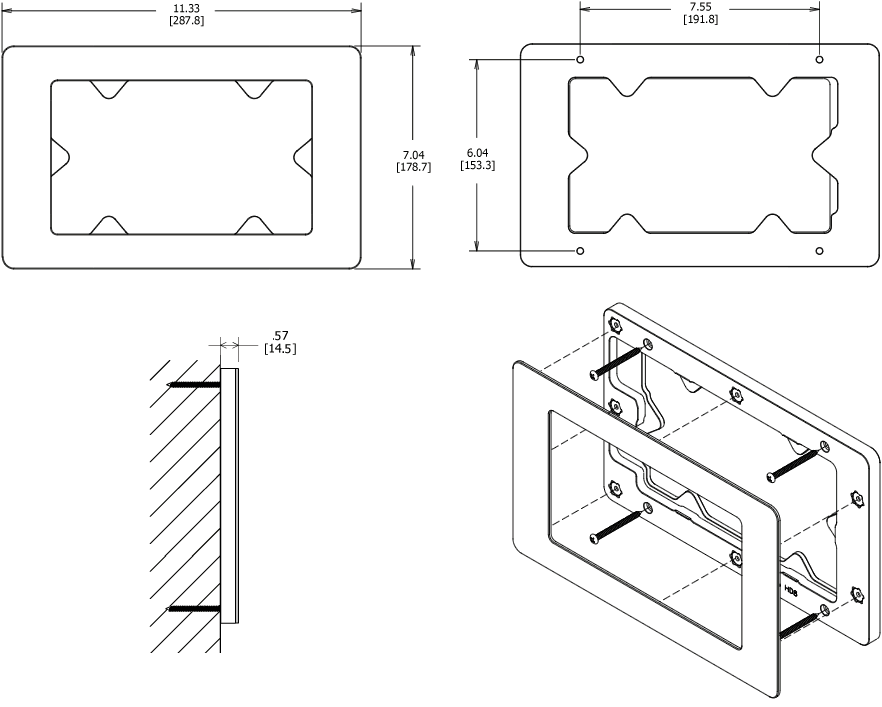

VidaMount On-Wall Enclosure Amazon Fire 5th Gen HD8 Dimensions

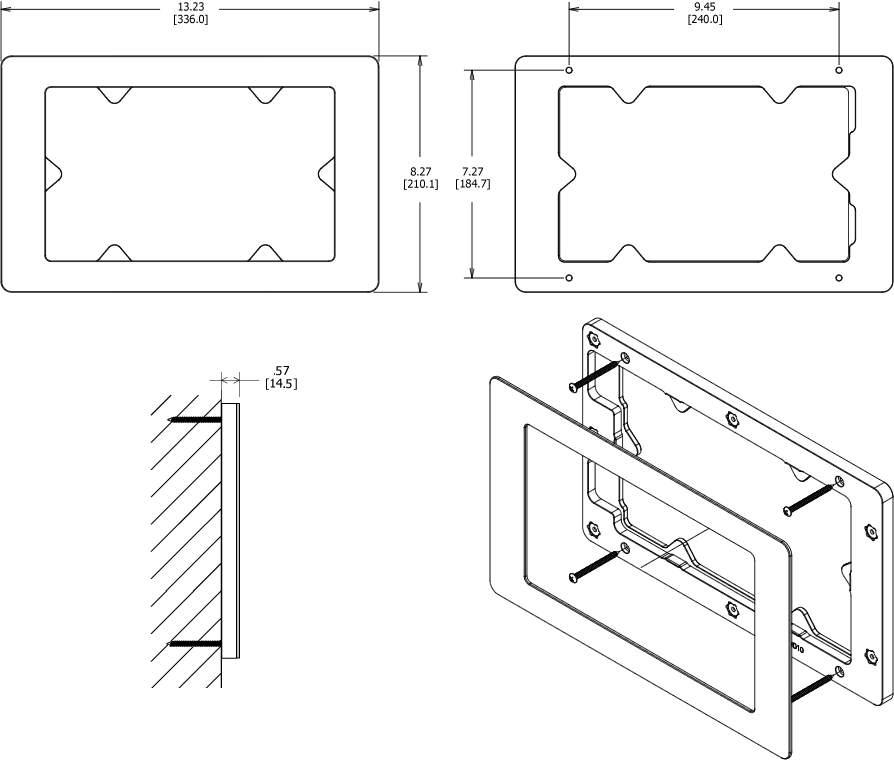

VidaMount On-Wall Enclosure Amazon Fire 5th Gen HD10 Dimensions

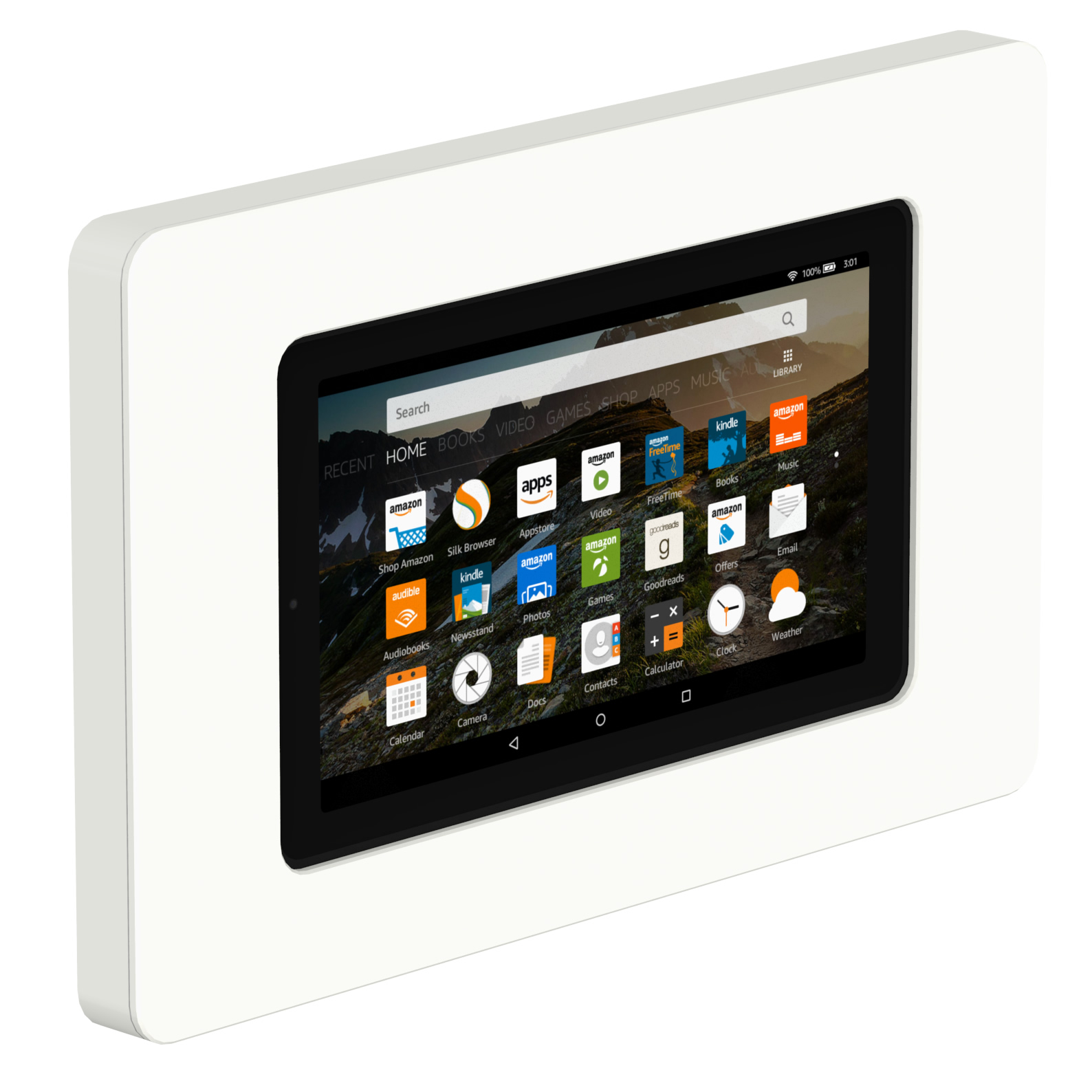

VidaMount On-Wall Enclosure Amazon Fire 7th Gen 7-inch Dimensions

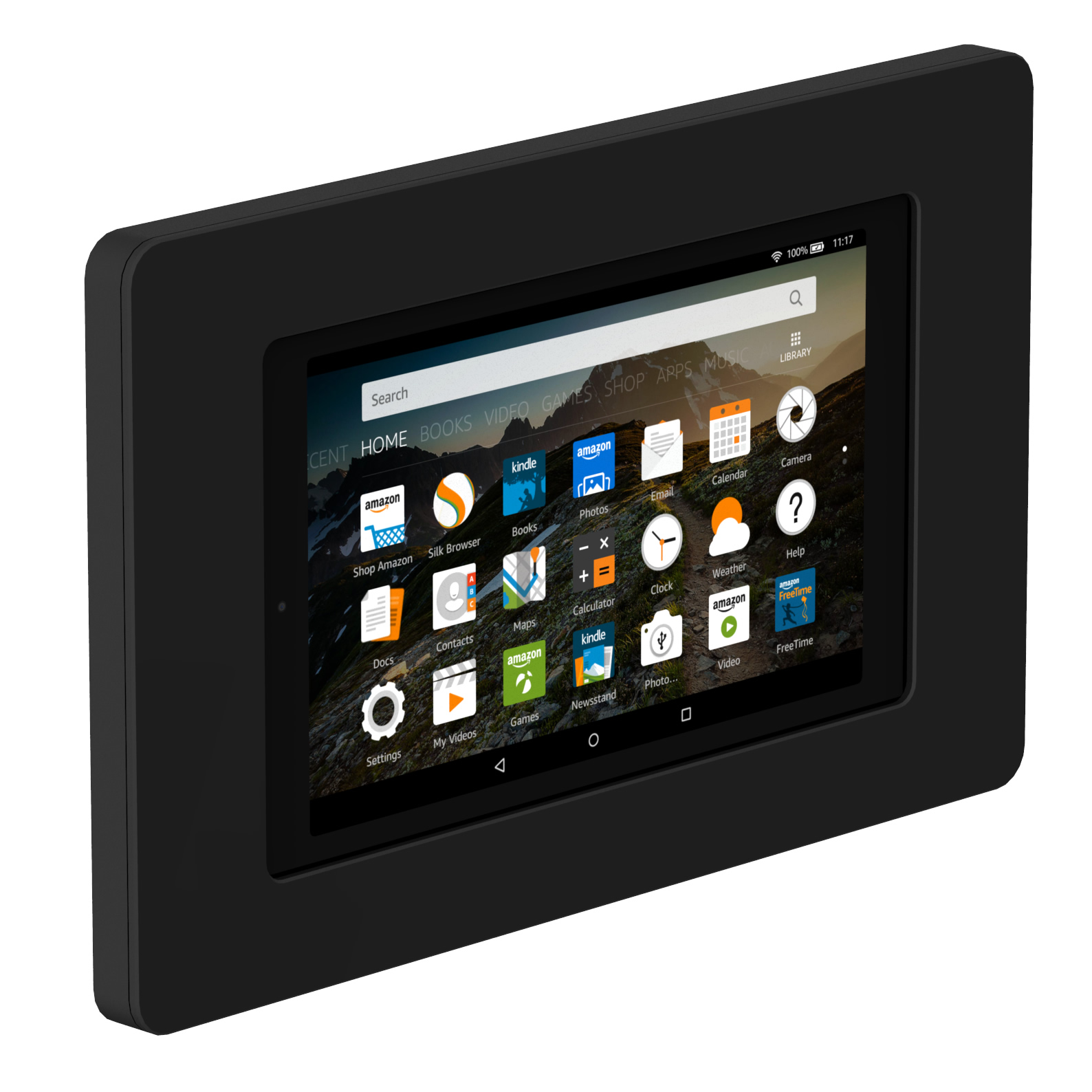

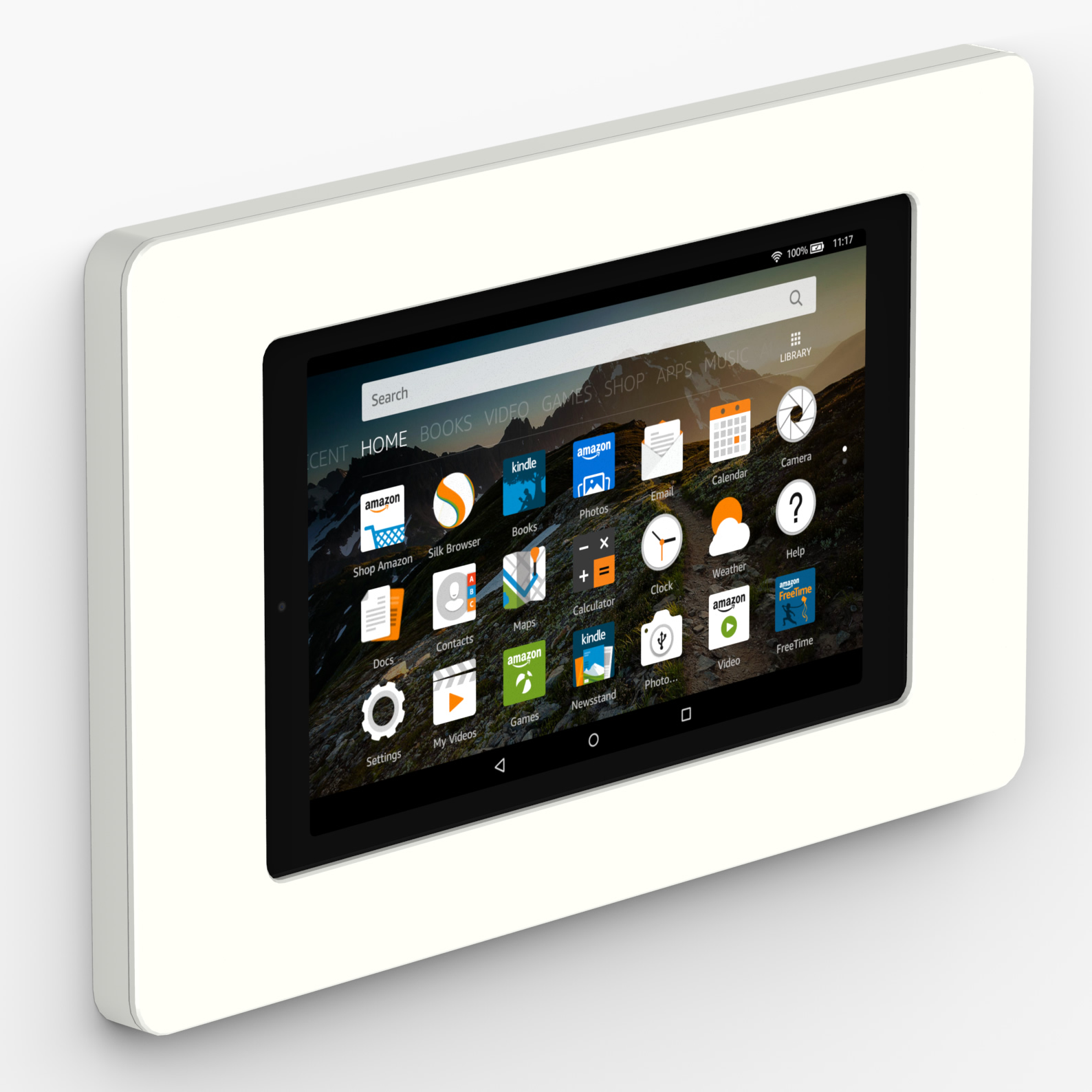

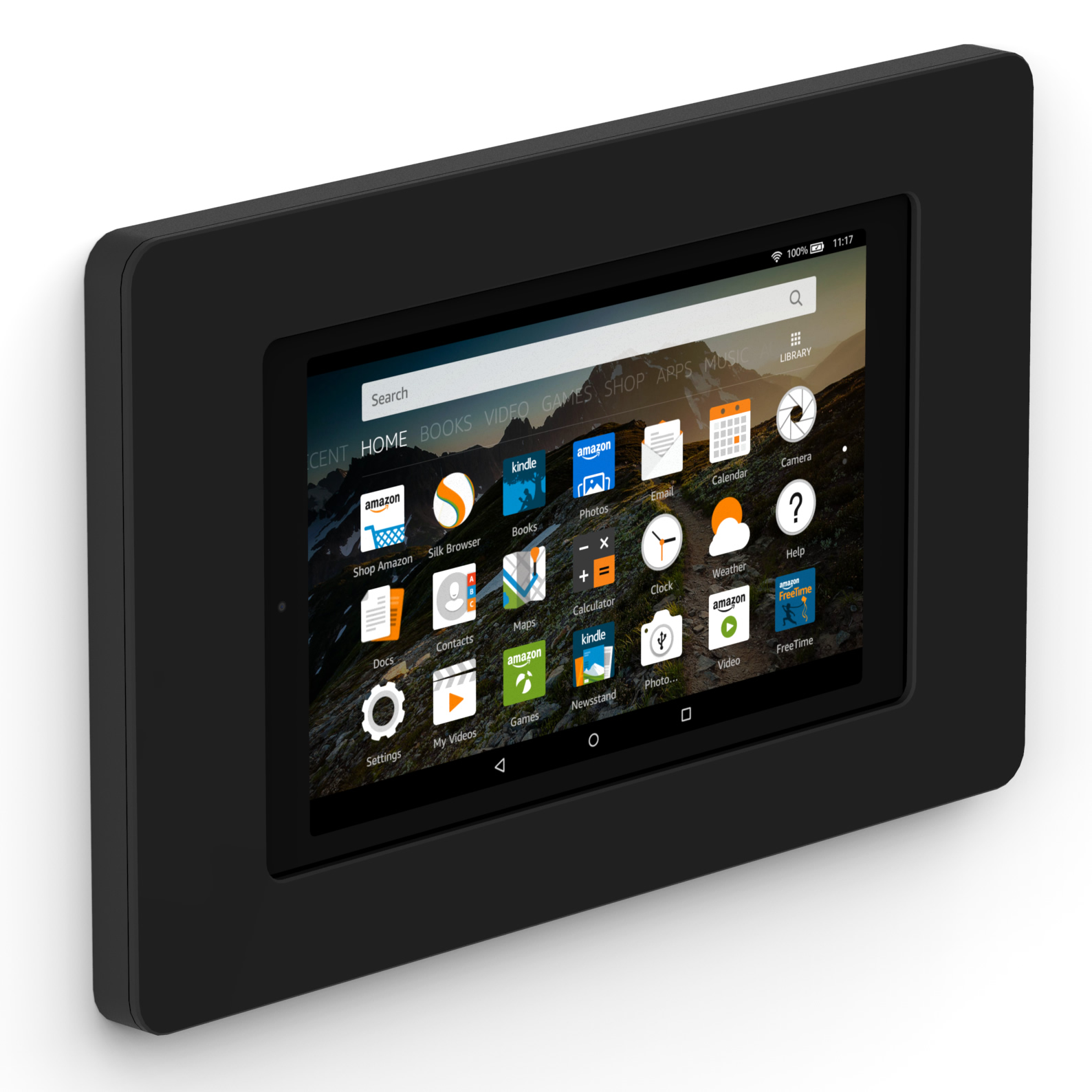

VidaMount On-Wall Enclosure Amazon Fire 7th Gen HD8 Dimensions

VidaMount On-Wall Enclosure Amazon Fire 7th Gen HD10 Dimensions

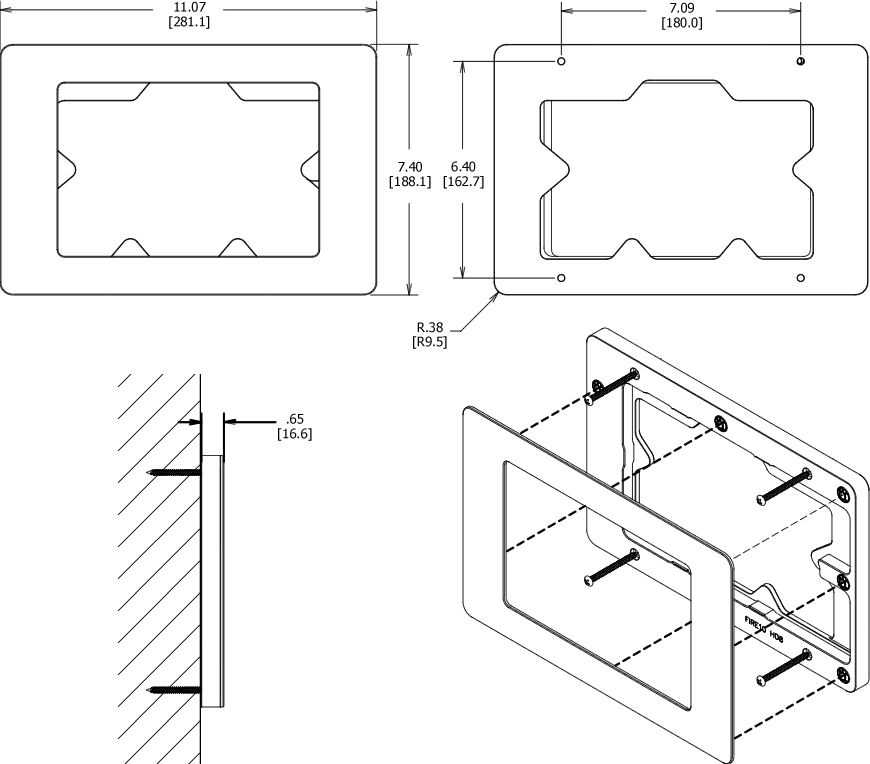

VidaMount On-Wall Enclosure Amazon Fire 10th Gen HD 8 & HD 8 Plus Dimensions

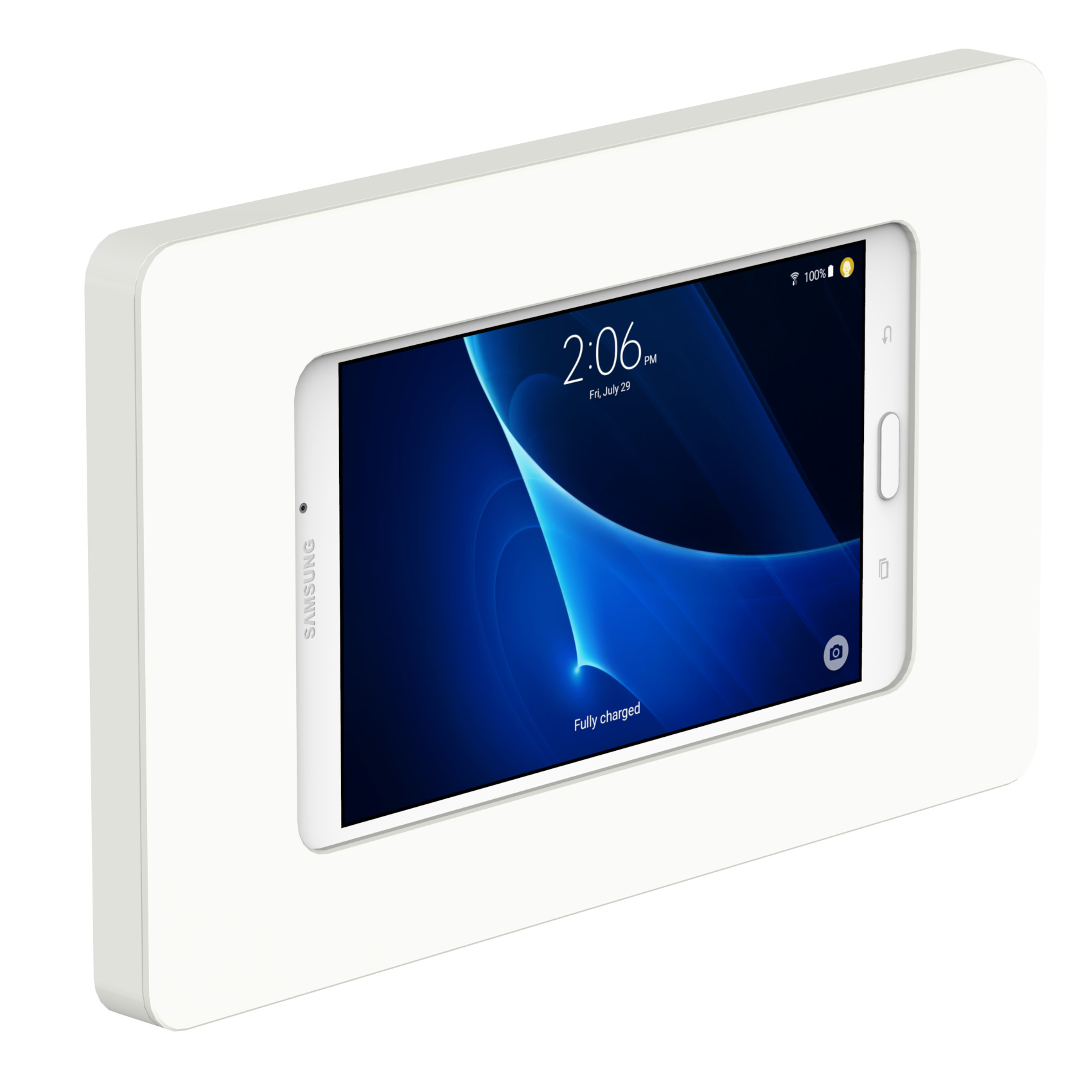

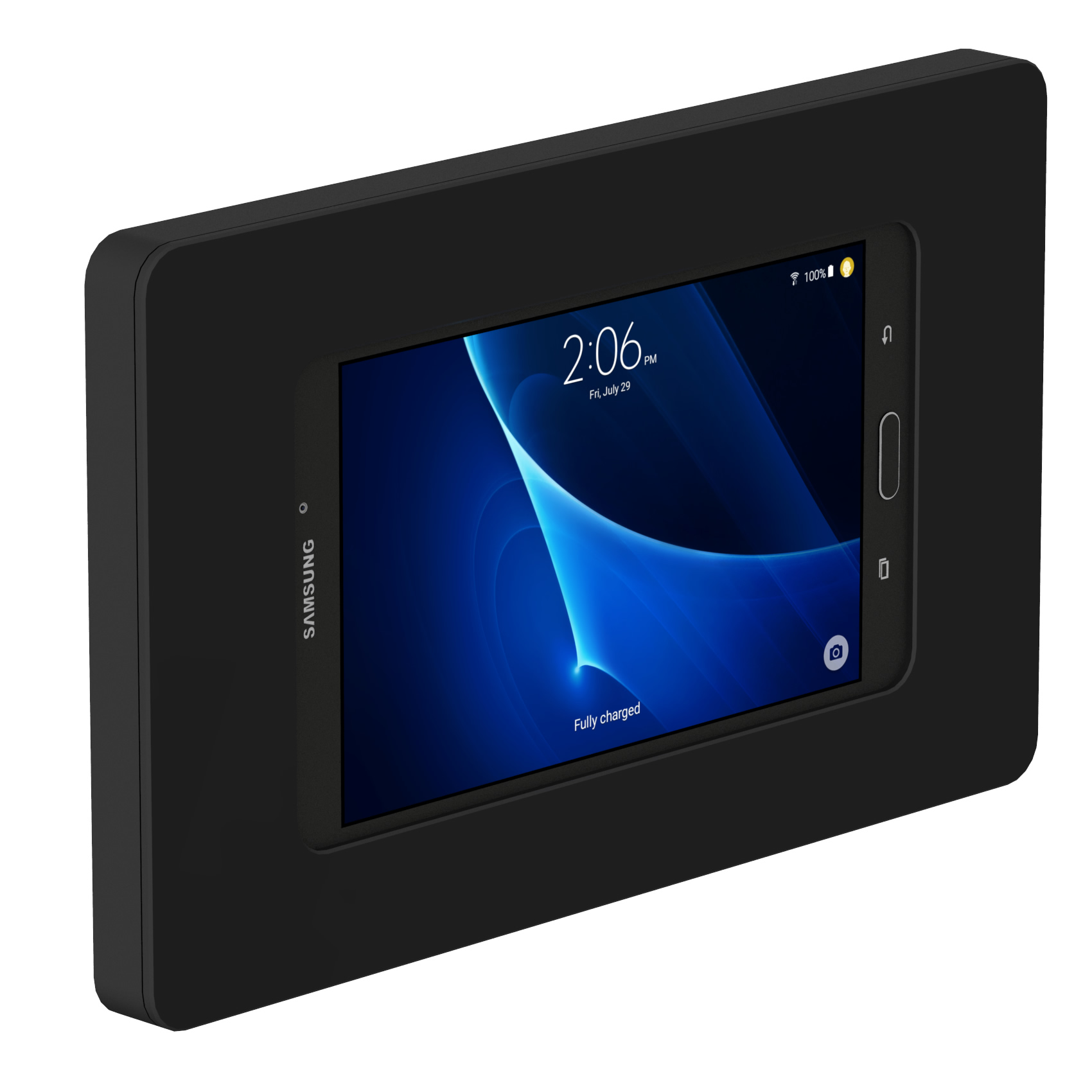

VidaMount On-Wall Enclosure Galaxy Tab A 7.0 Dimensions

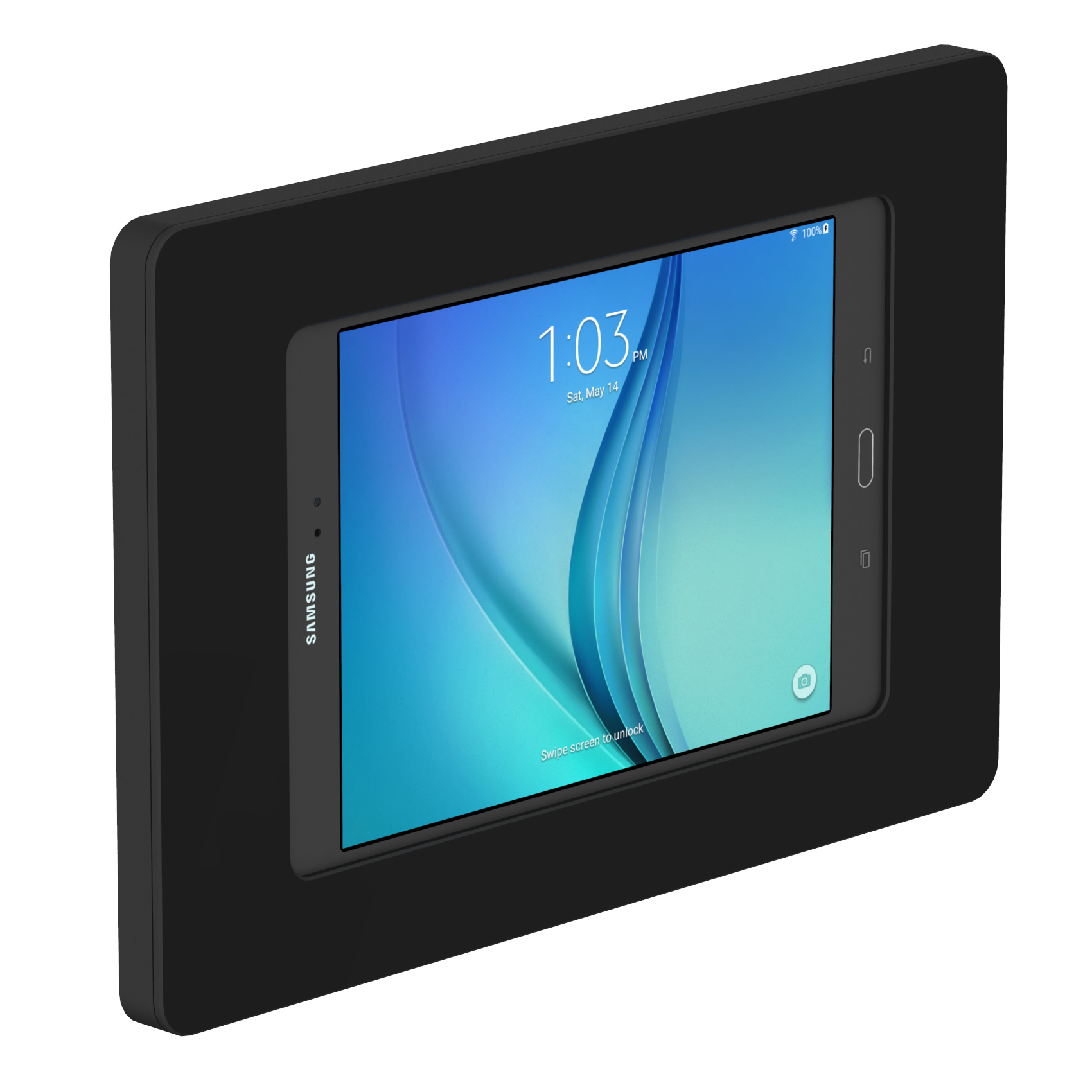

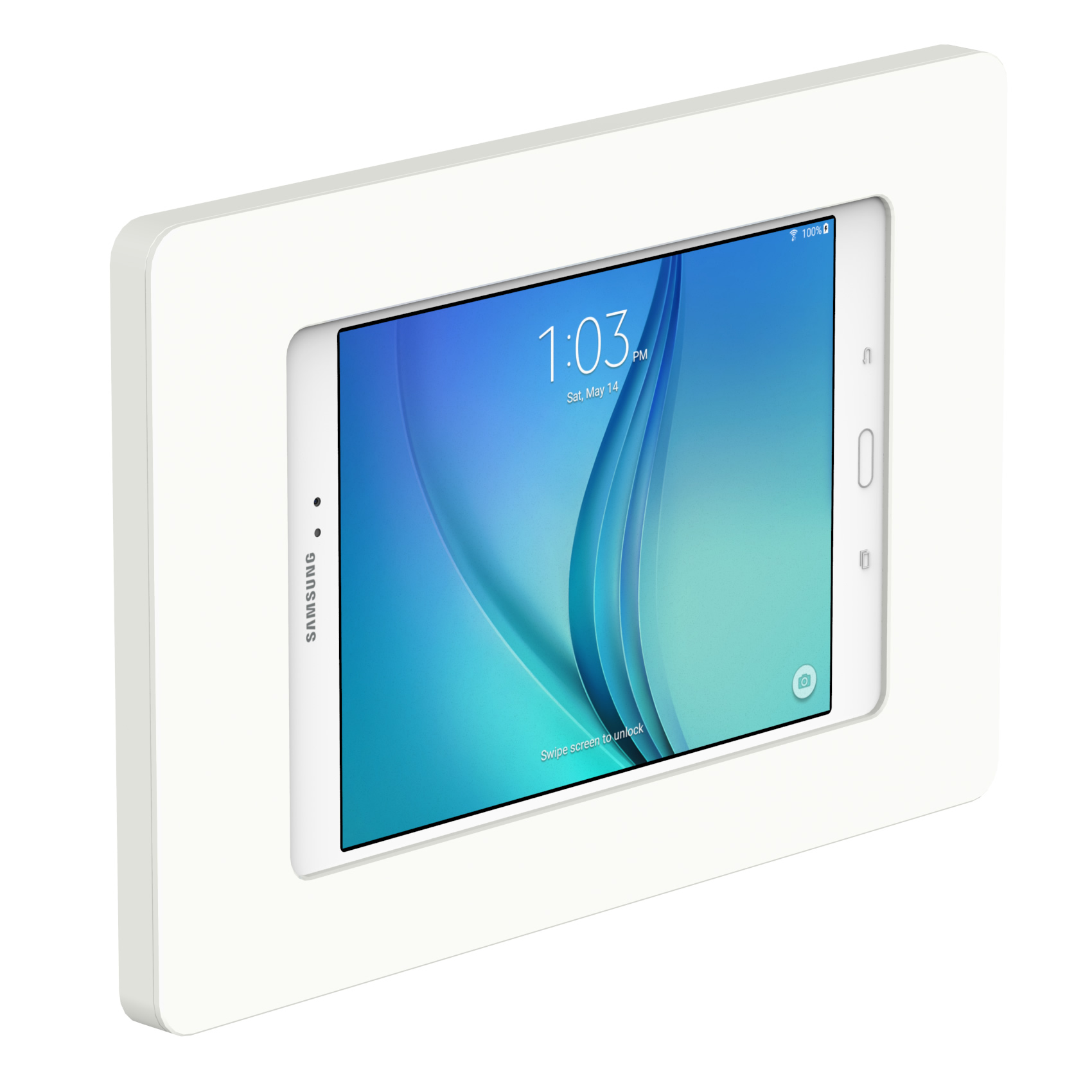

VidaMount On-Wall Enclosure Galaxy Tab A 8.0 (2015 version) Dimensions

VidaMount On-Wall Enclosure Galaxy Tab A 8.0 (2017 version) Dimensions

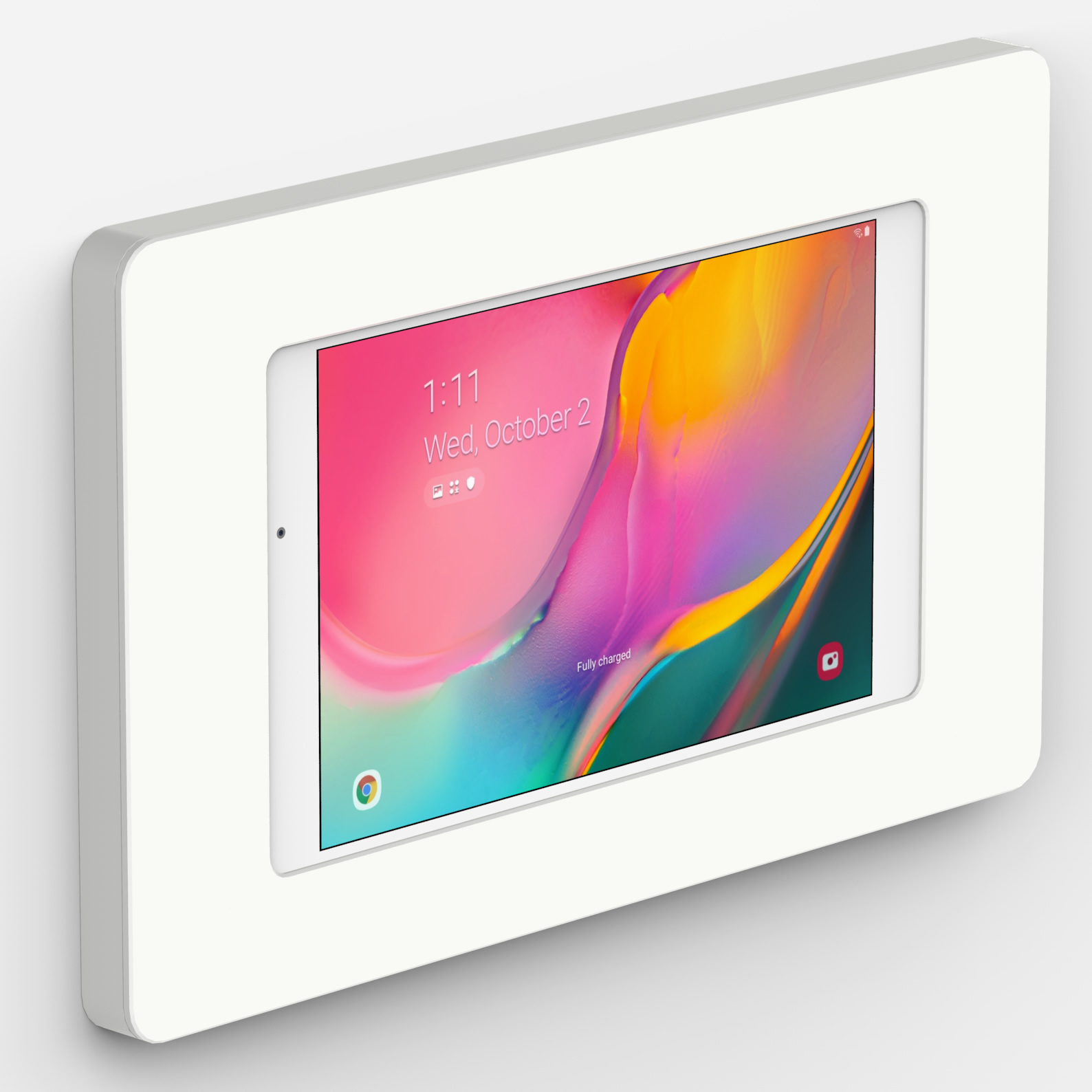

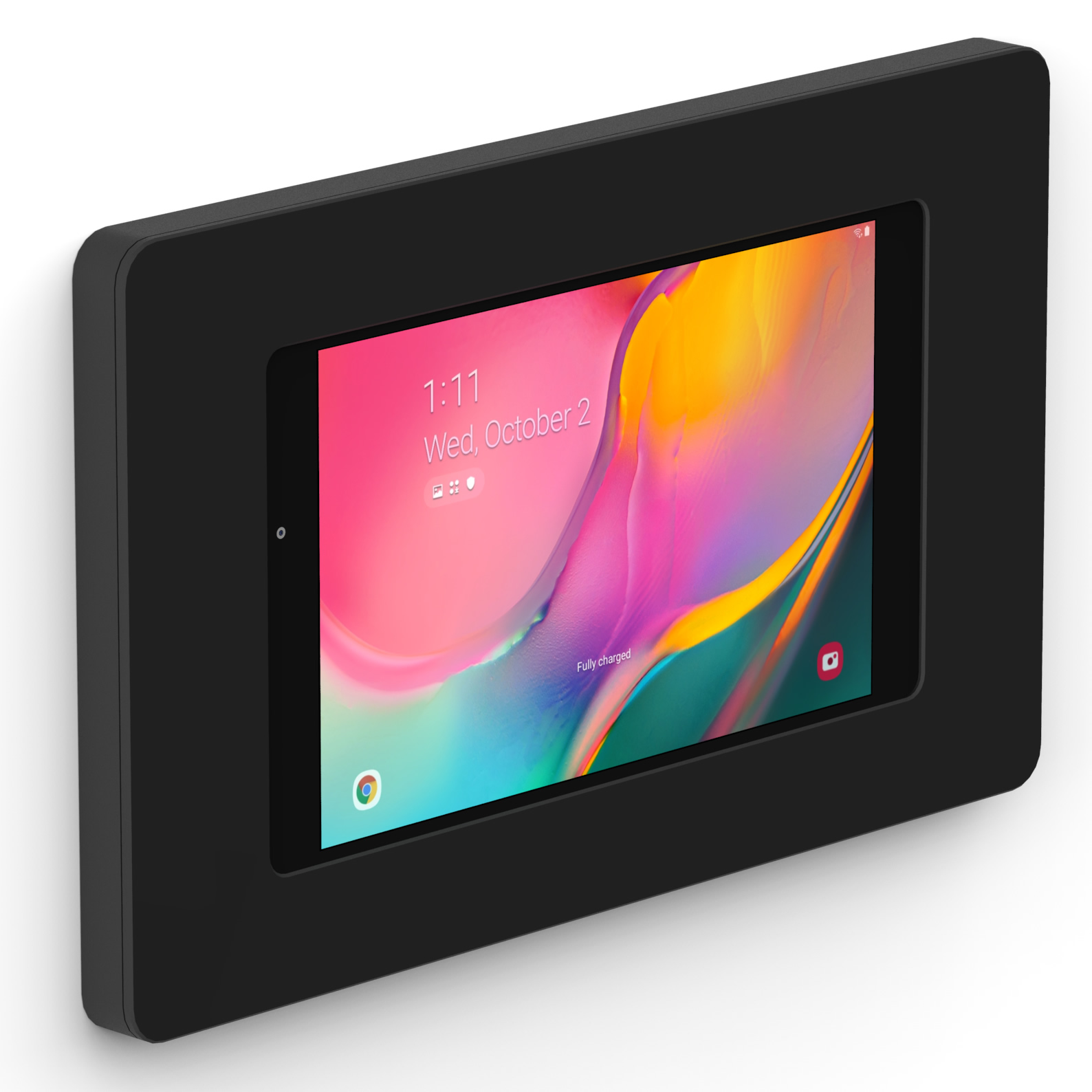

VidaMount On-Wall Enclosure Galaxy Tab A 8.0 (2019 version) Dimensions

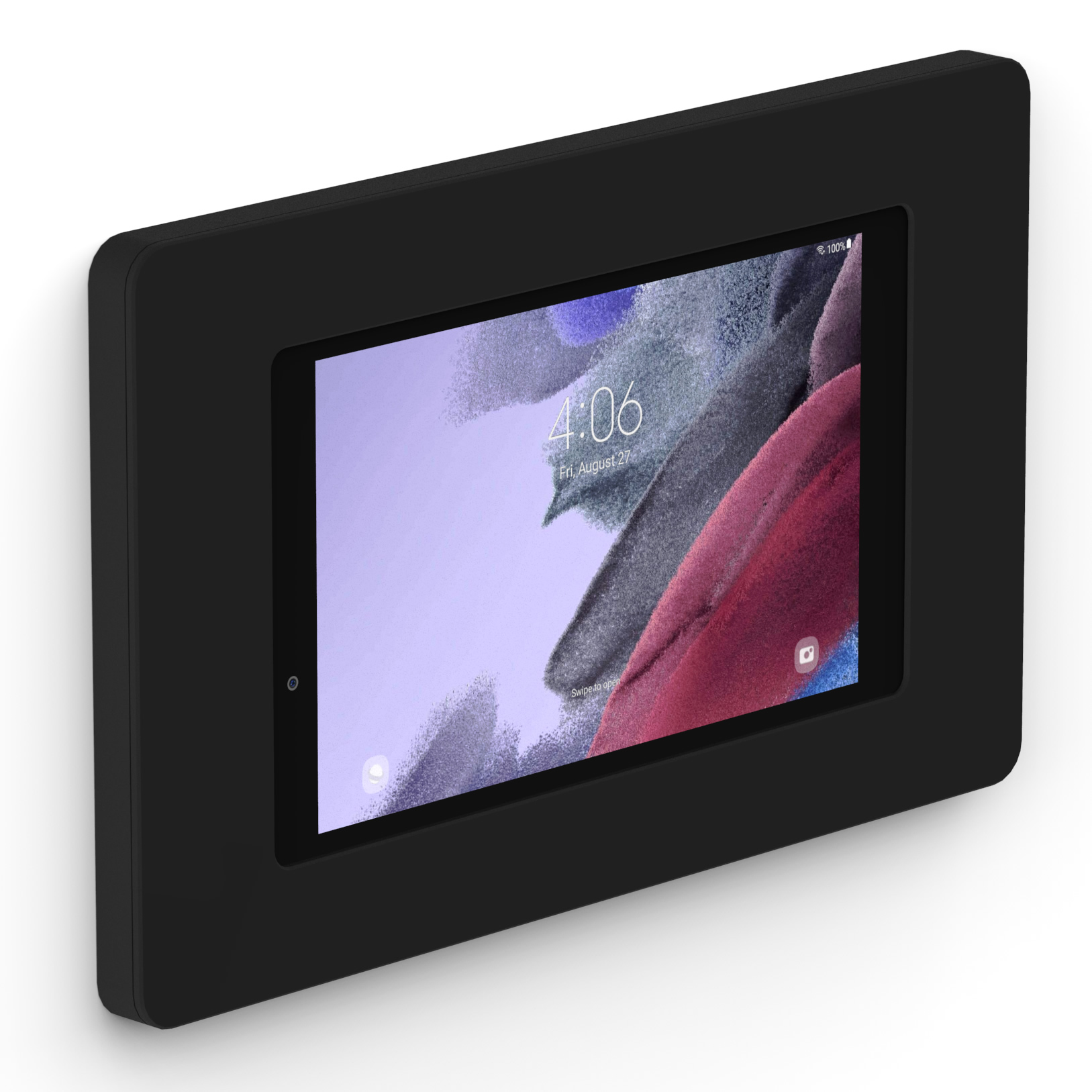

VidaMount On-Wall Enclosure Galaxy Tab A7 8.7 Dimensions

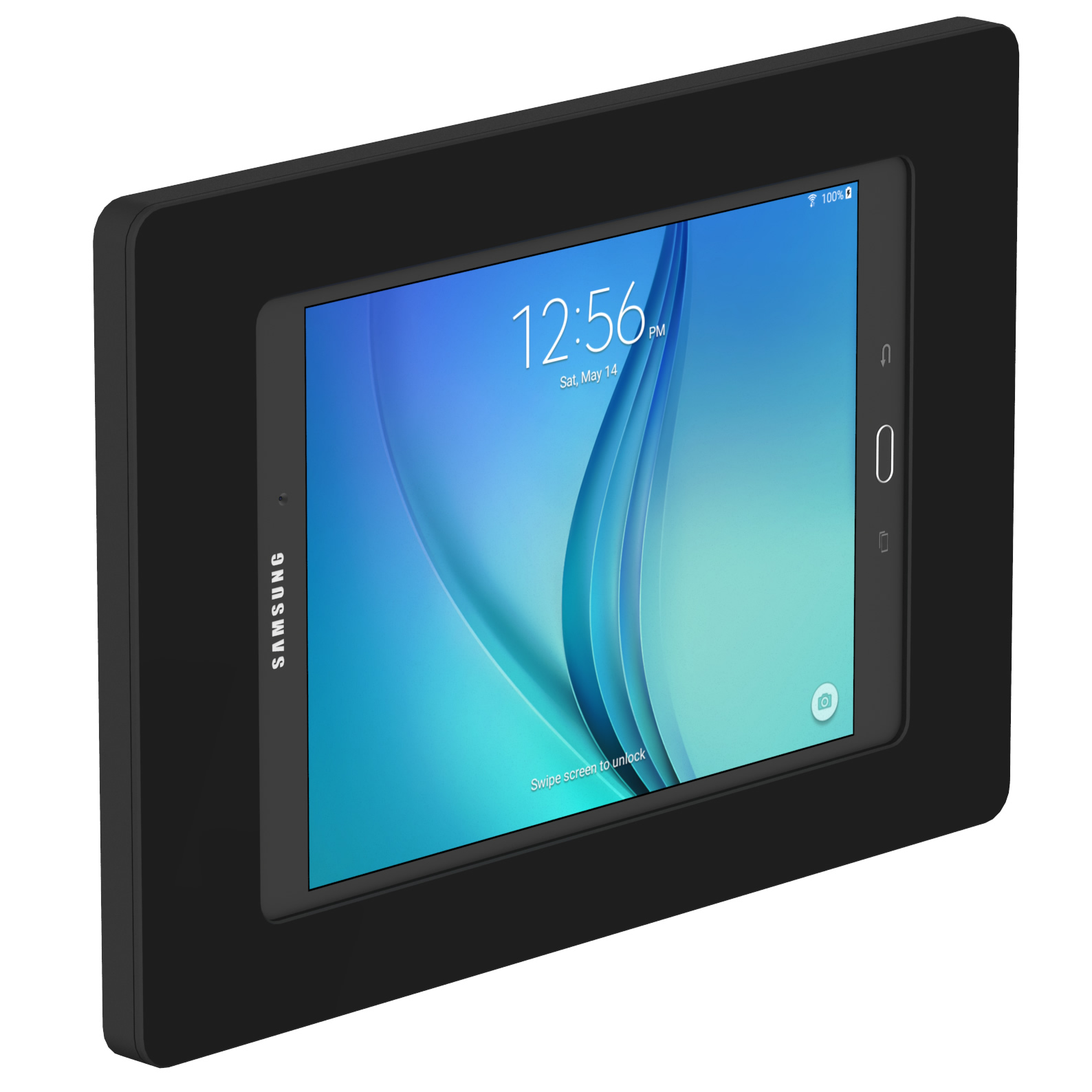

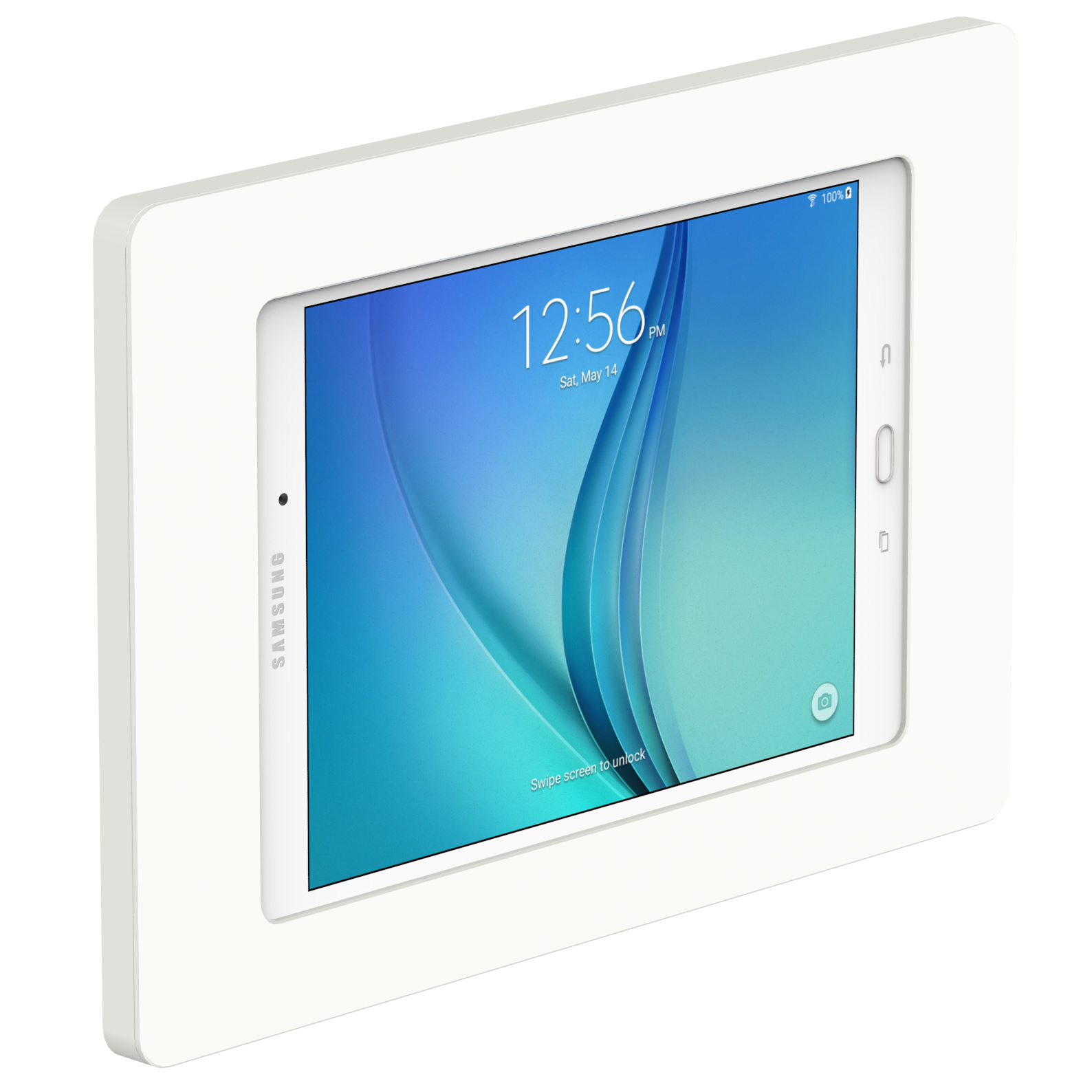

VidaMount On-Wall Enclosure Galaxy Tab A 9.7 Dimensions

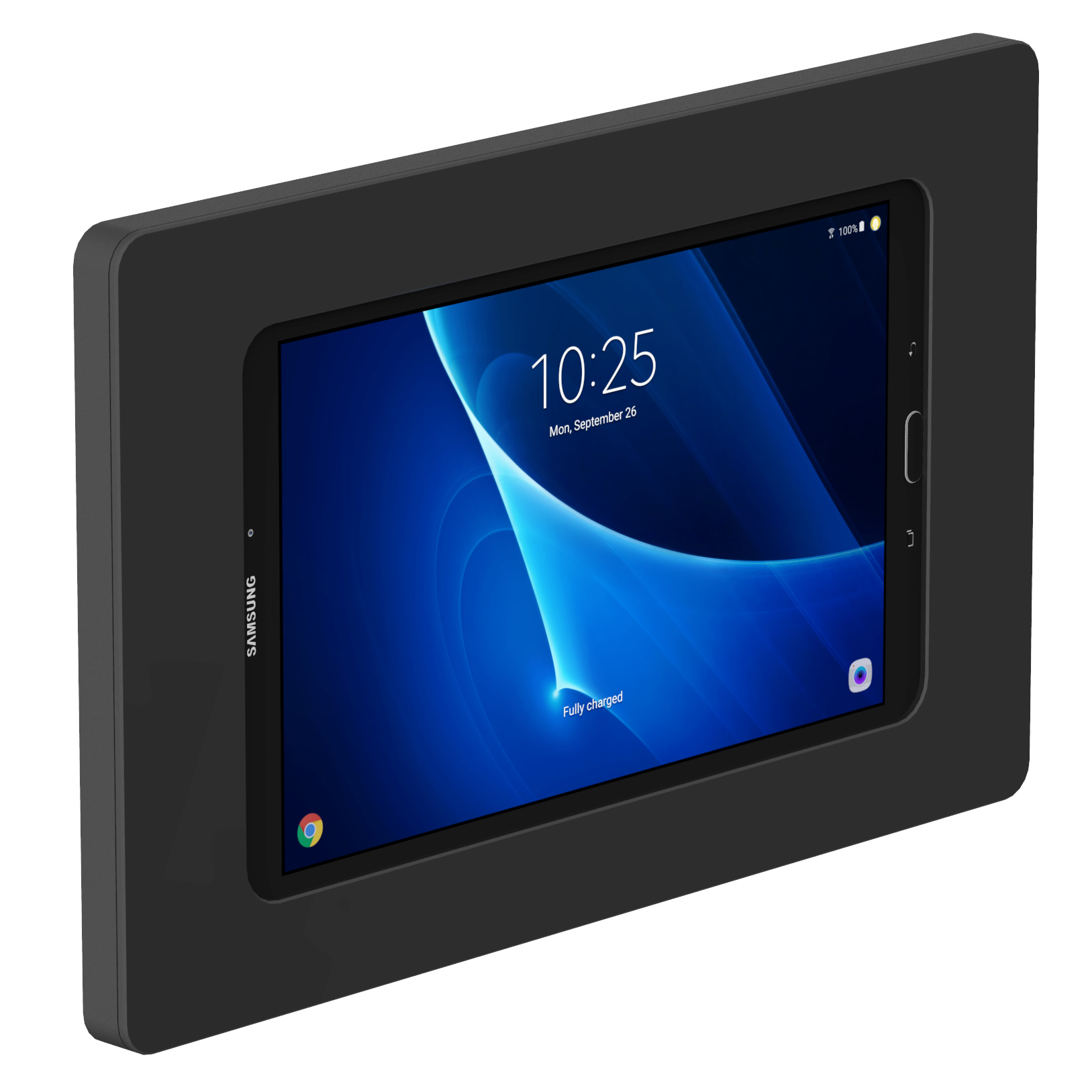

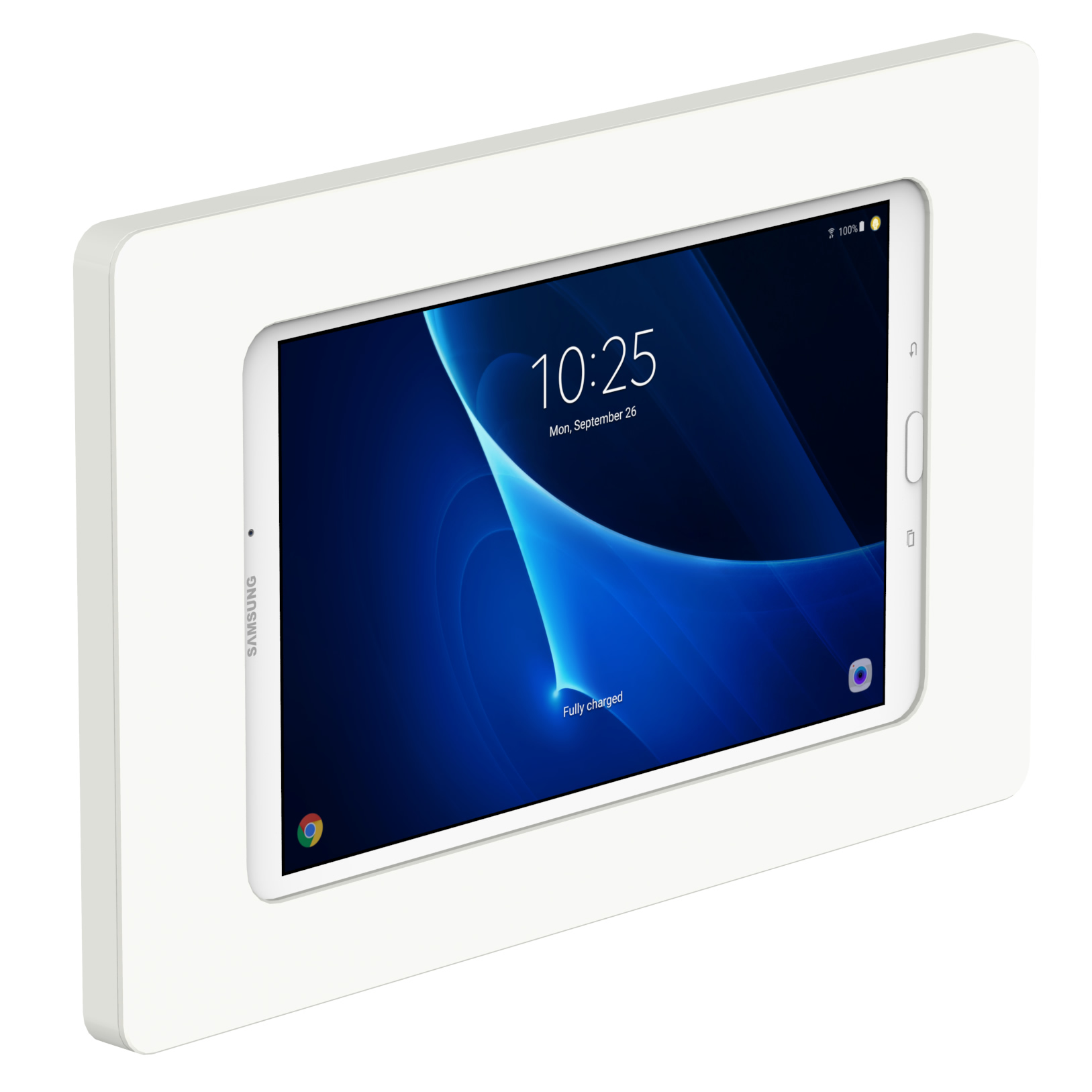

VidaMount On-Wall Enclosure Galaxy Tab A 10.1 (2016 version) Dimensions

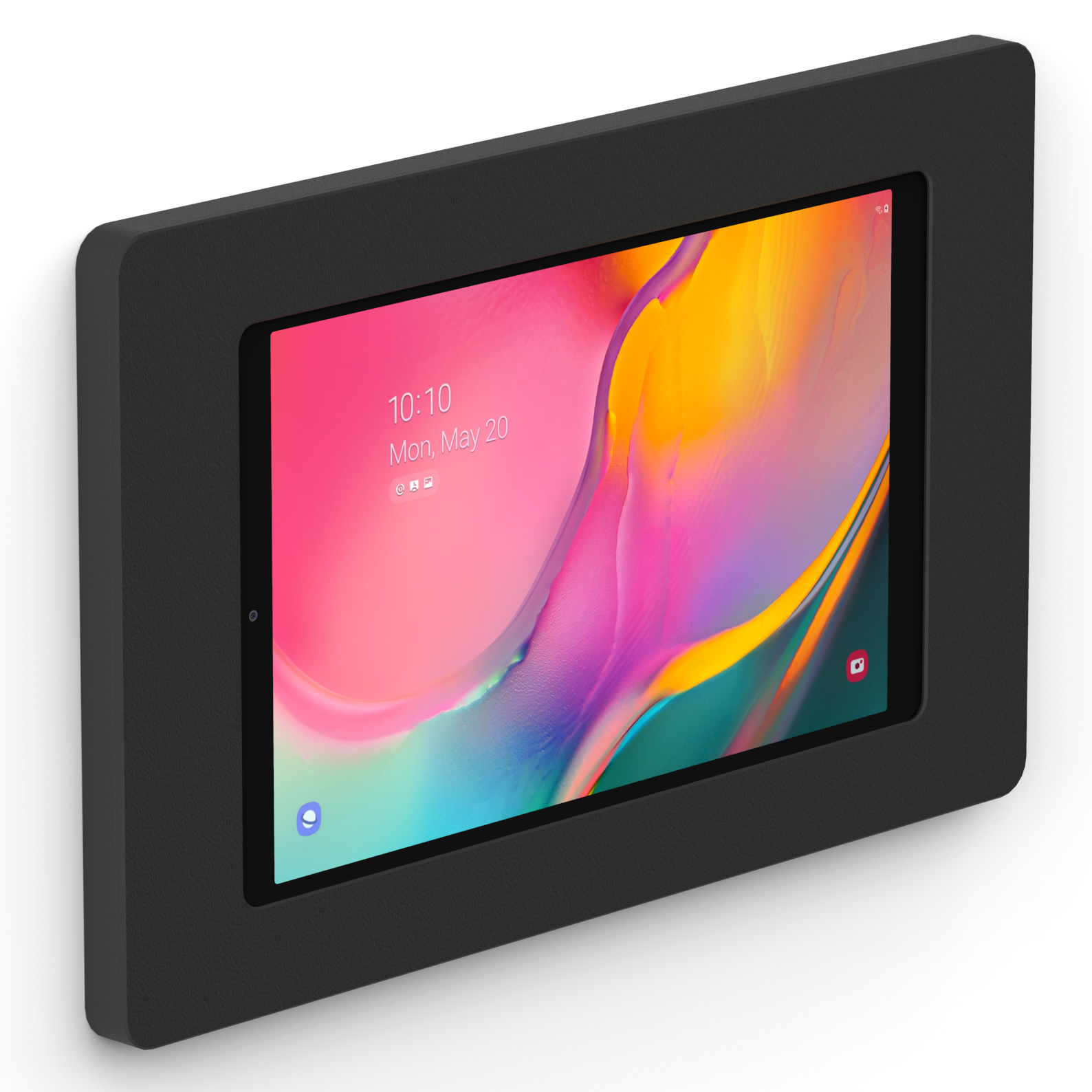

VidaMount On-Wall Enclosure Galaxy Tab A 10.1 (2019 version) Dimensions

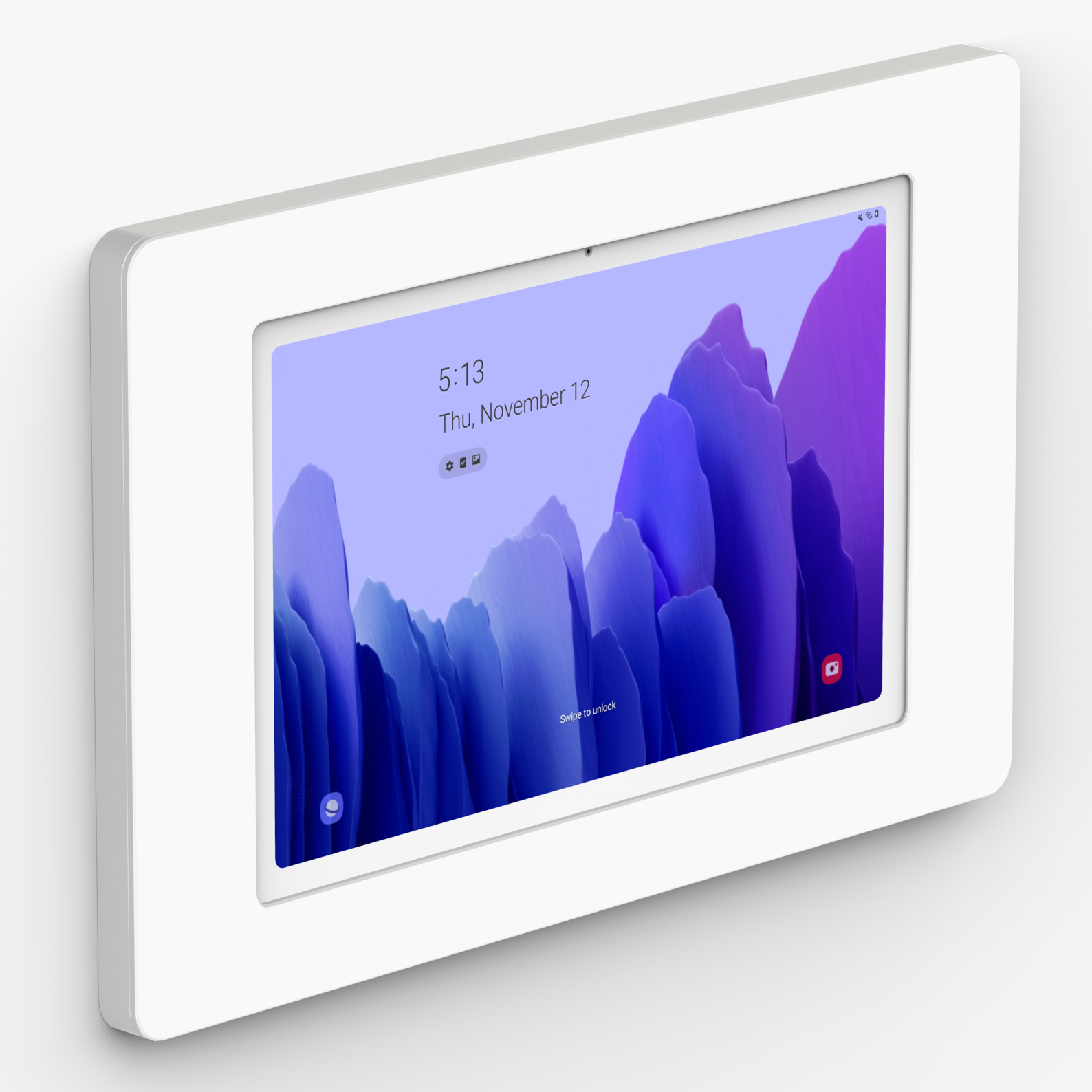

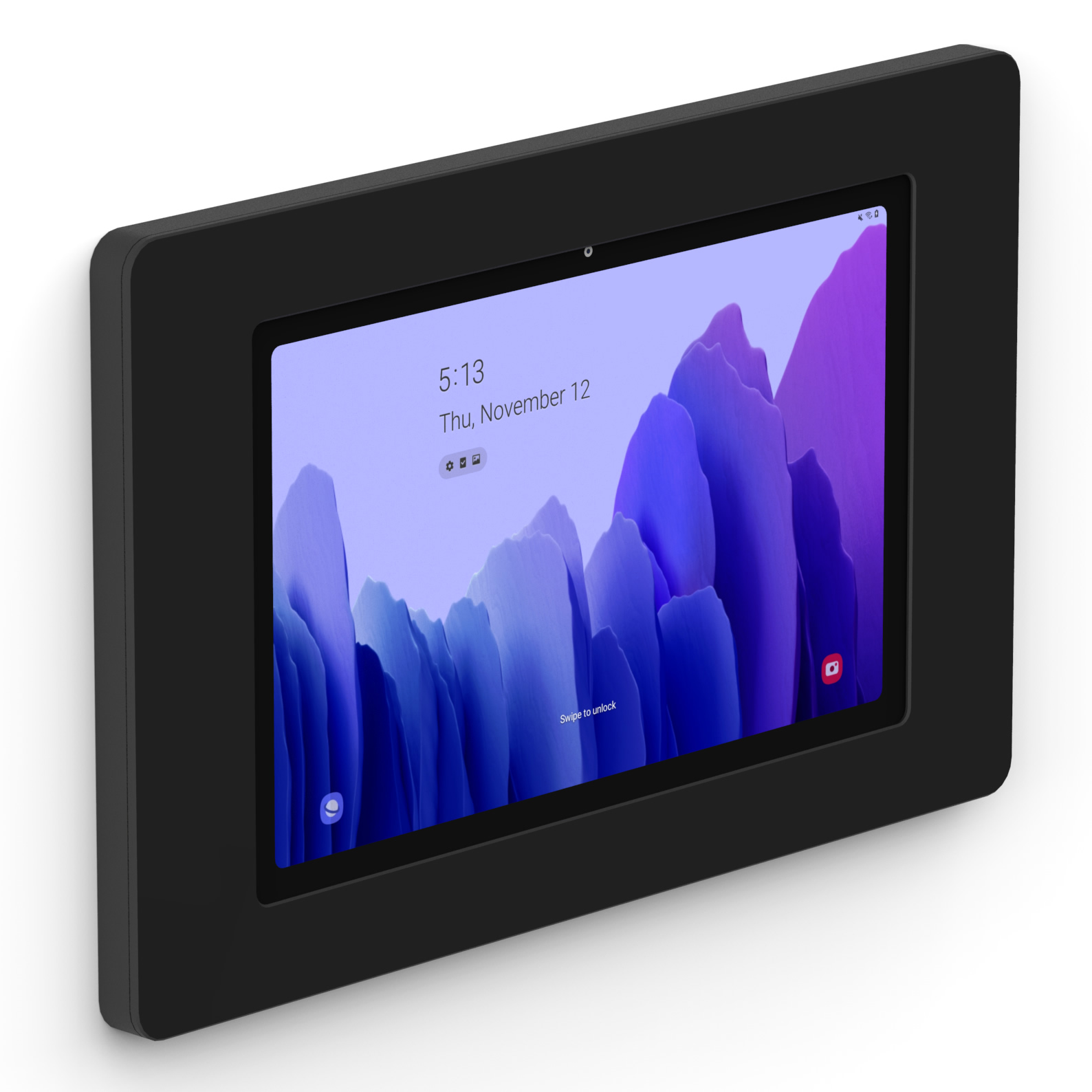

VidaMount On-Wall Enclosure Galaxy Tab A7 10.4 Dimensions

VidaMount On-Wall Enclosure Galaxy Tab A 10.5 Dimensions

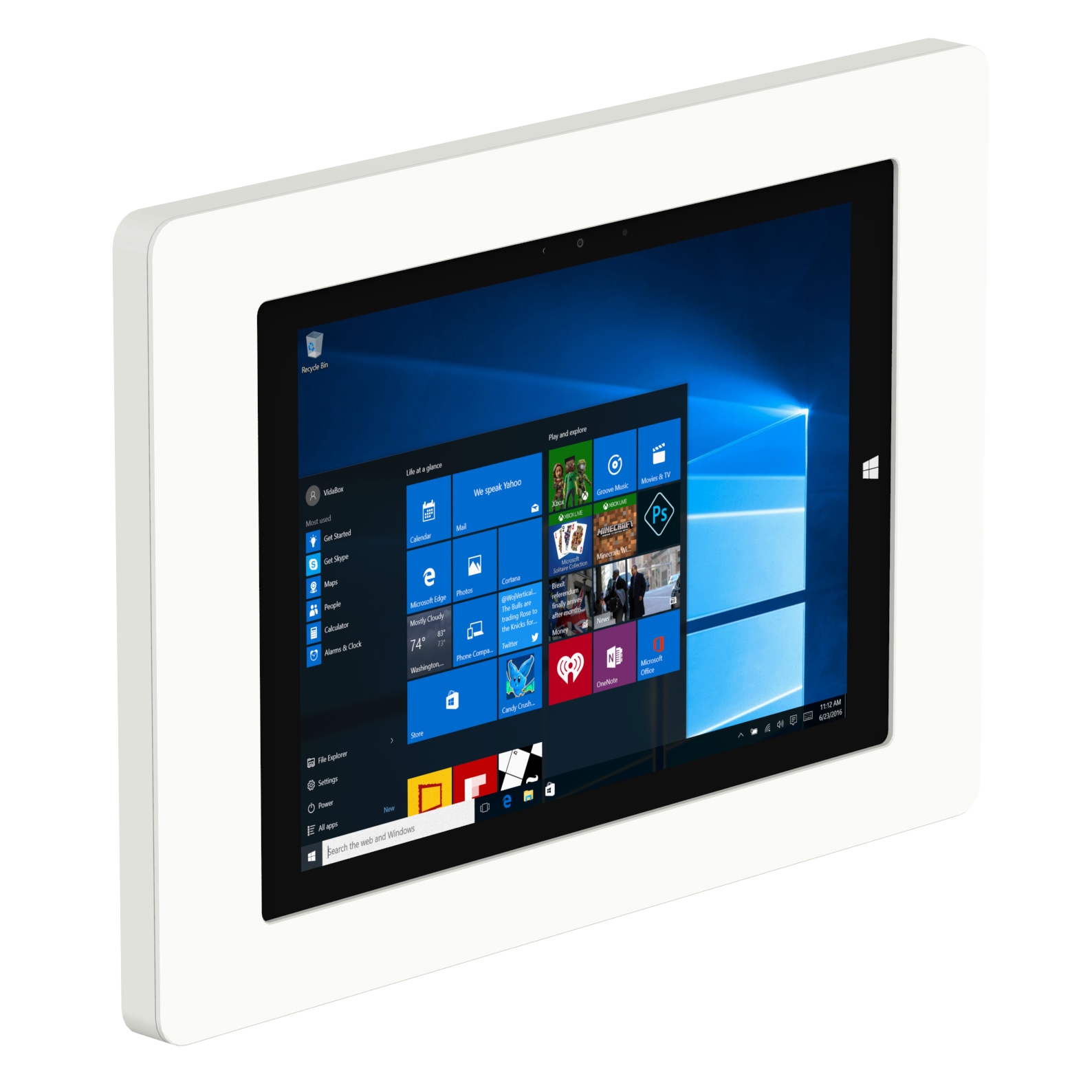

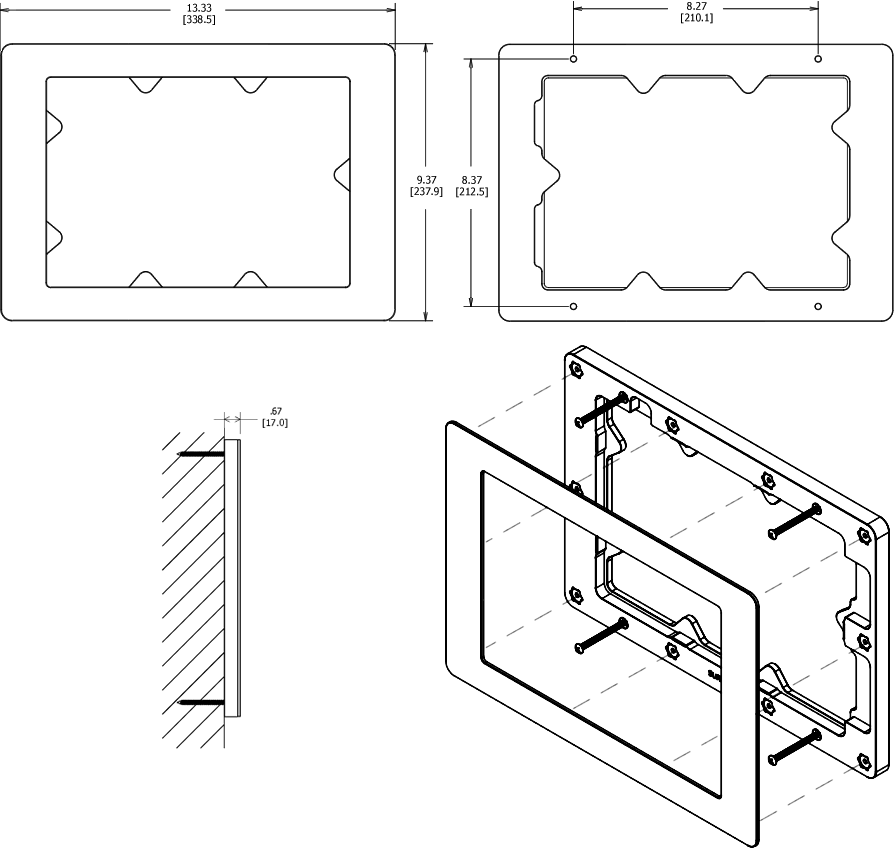

VidaMount On-Wall Enclosure Surface 3 Dimensions

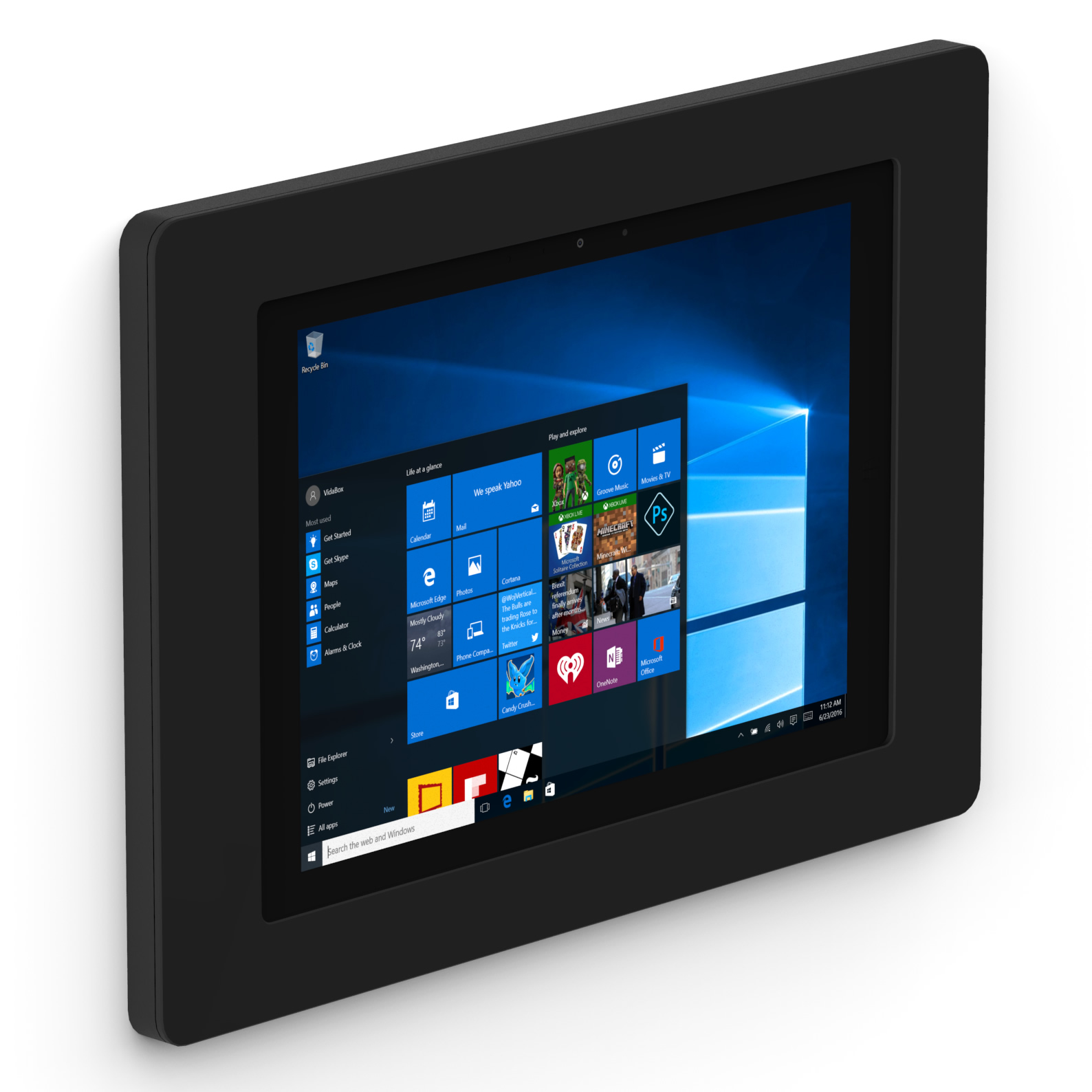

VidaMount On-Wall Enclosure Surface Go Dimensions

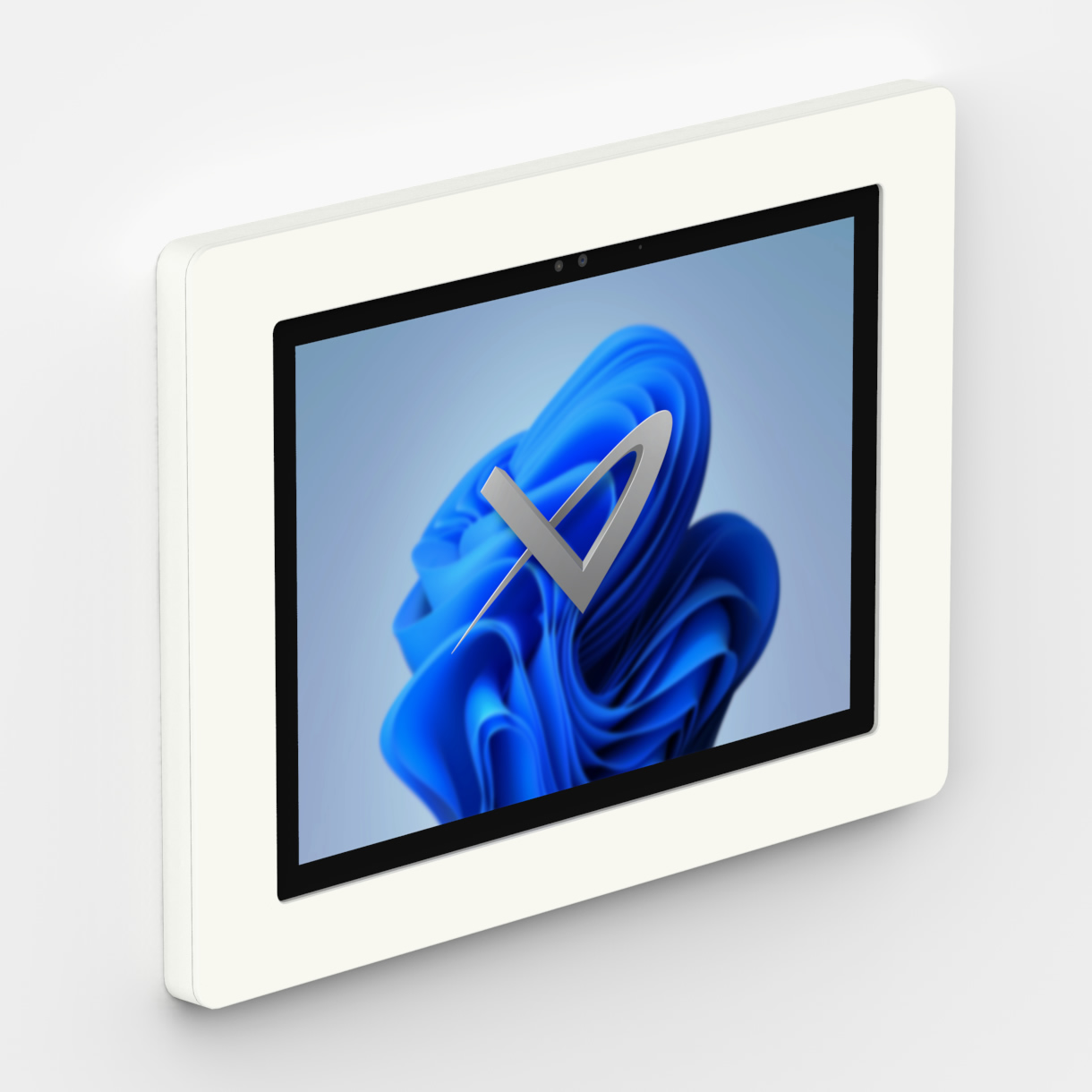

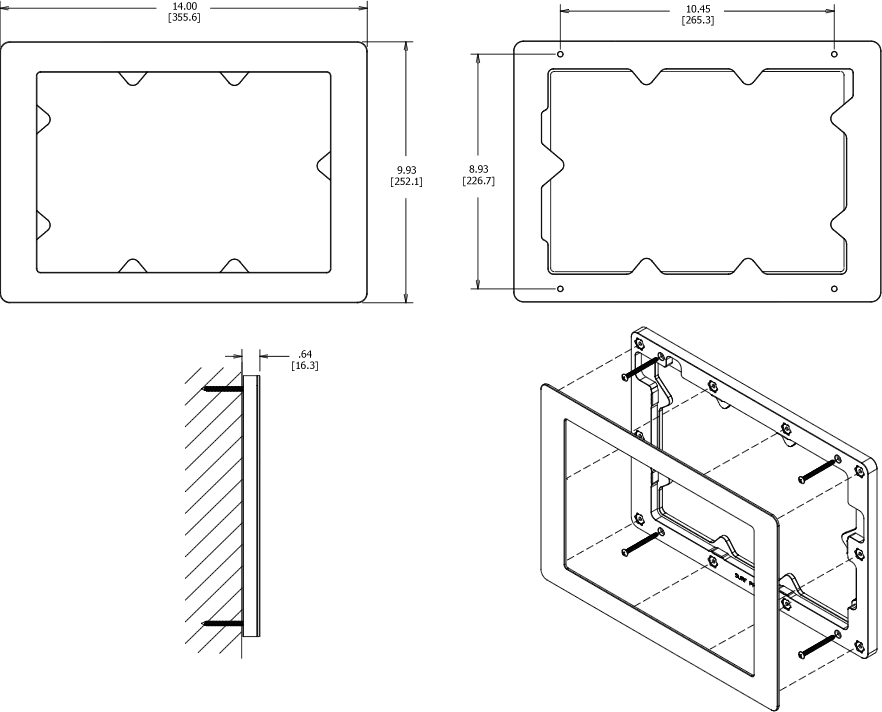

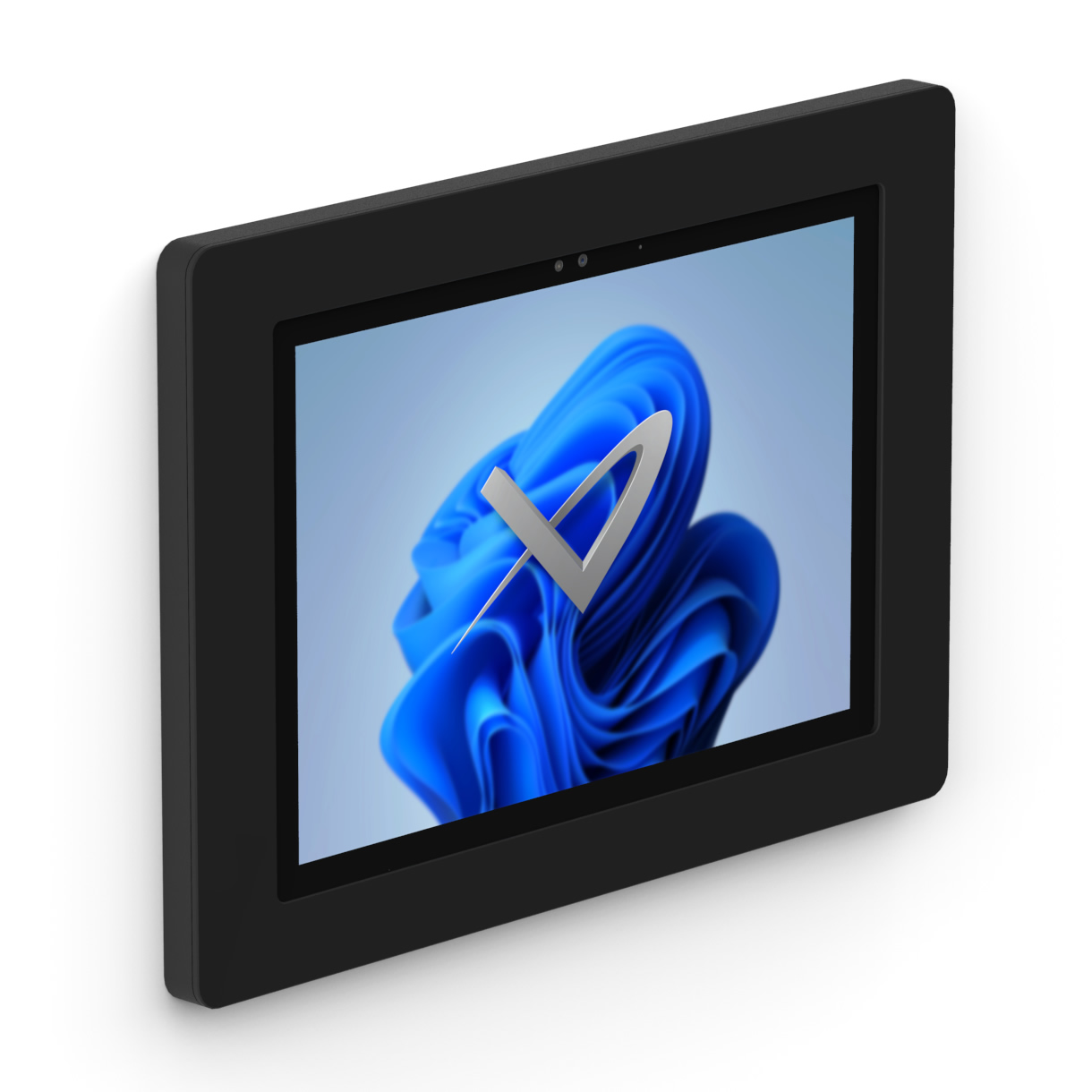

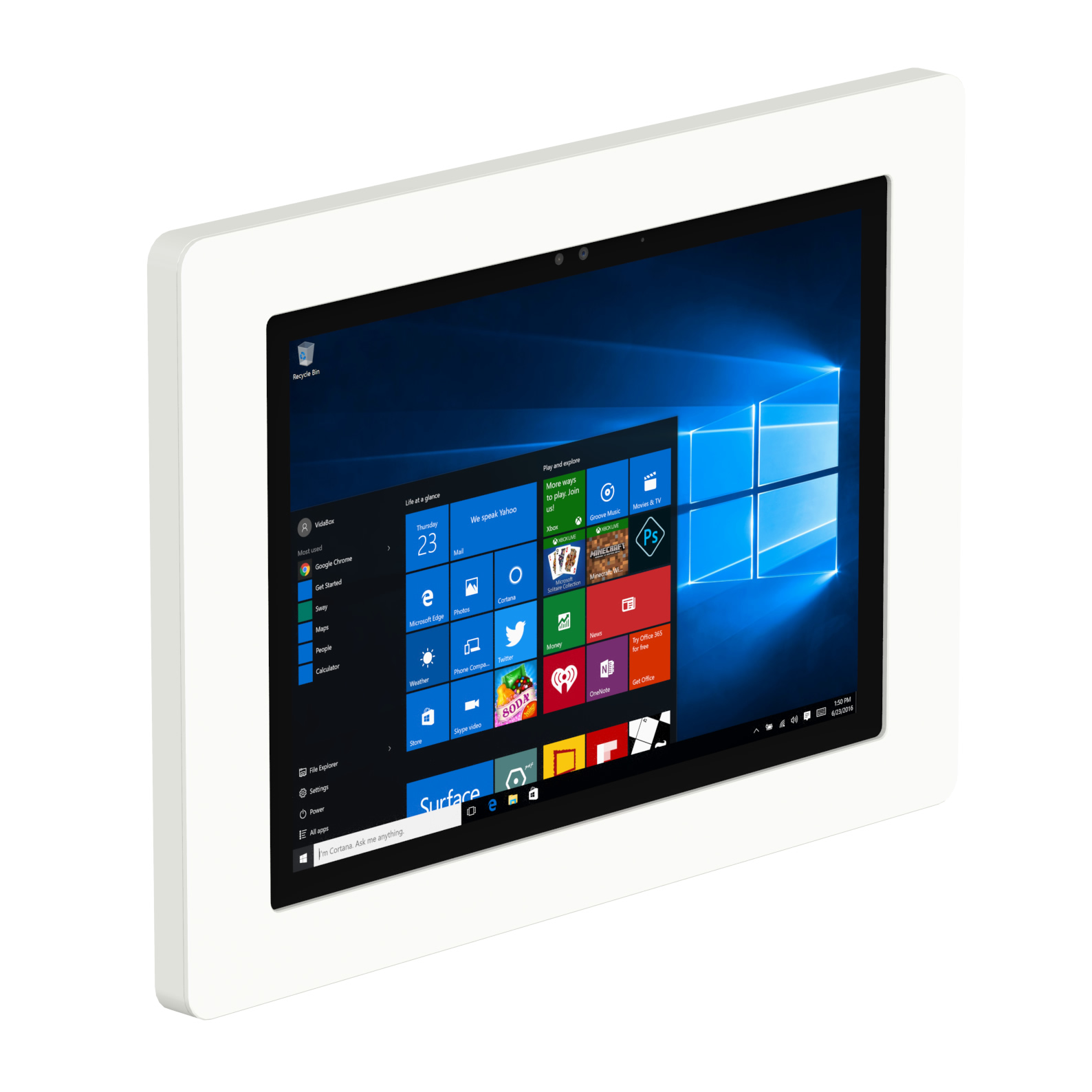

VidaMount On-Wall Enclosure Surface Pro 7+ / Pro 7 / Pro 6 / Pro 5 / Pro 4 Dimensions

Materials
Base (All colors): HDPE Resin
Cover (All colors): Kydex
What's in the box
VidaMount On-Wall iPad Tablet Enclosure / Mount
(4) 8-32 x 1 1/2" Screws
(4) Hollow/solid wall anchors
(4) Foam Spacer (when required for tablet thickness compatibility)
Installation instructions [Download]

CAD Model
3D STEP file [Download]
